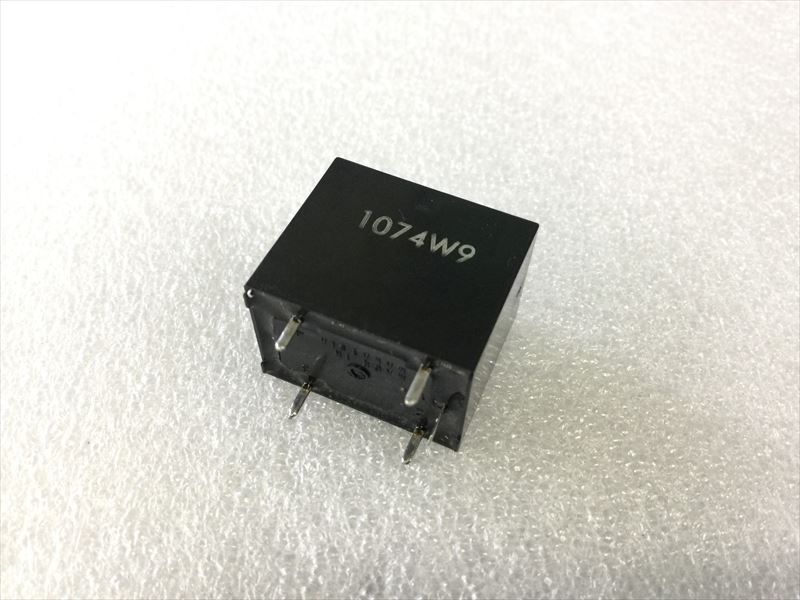

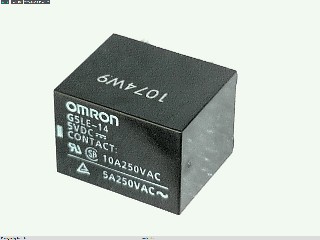

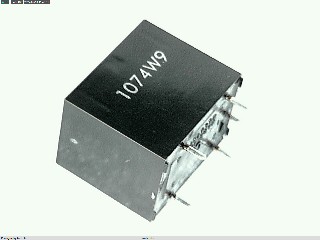

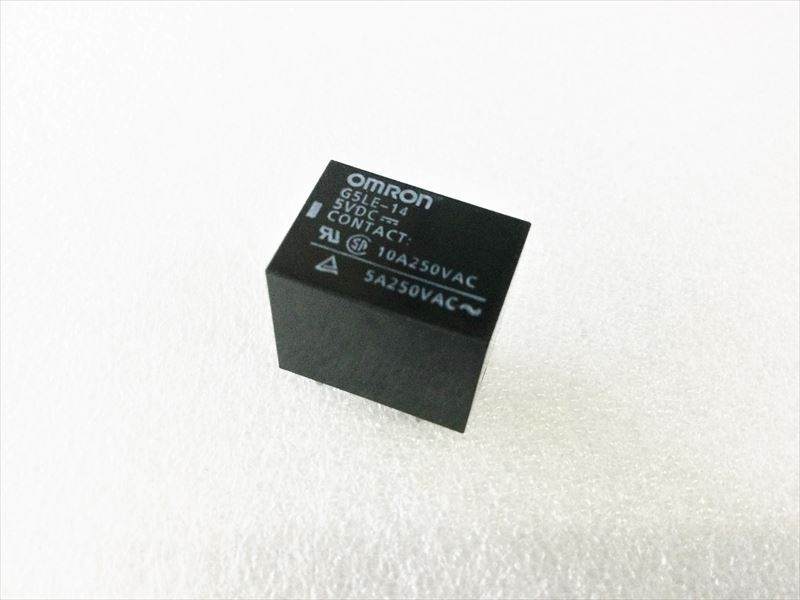

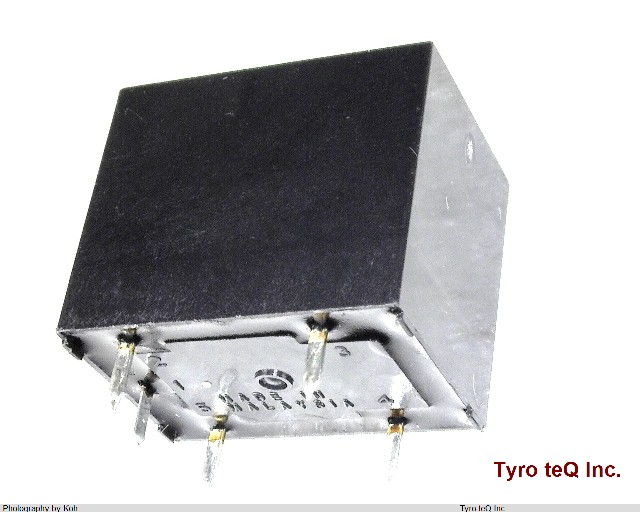

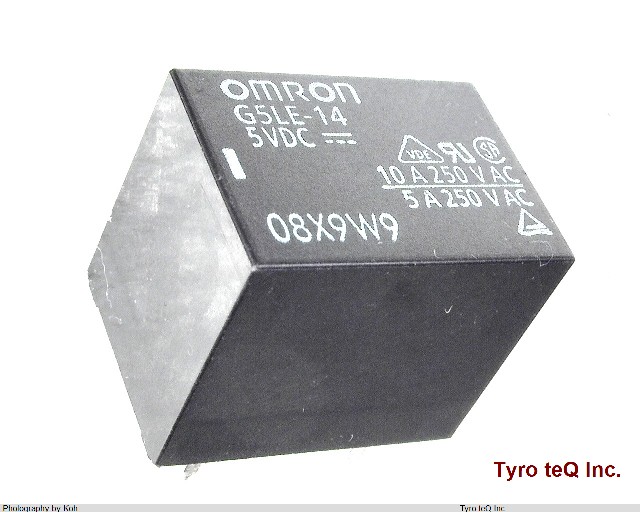

G5LE-14 DC5

Name: G5LE-14 DC5
Brand: OMRON
SKU: 170014398-0000-0000-0000

G5LE-14 DC5 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

パワーリレー | キュービックタイプ | 10A|接点極数 : 1 極|コイル定格電圧： 5VDC

G5LE-14 DC5 の詳細情報

型番	G5LE-14 DC5
メーカー	OMRON
種別	パワーリレー
Body Breadth	16.5 inch
Body Height	19 mm
Body Length or Diameter	22.5 mm
Coil Current(DC)-Max	0.079 A
Coil Operate Voltage(DC)	3.75 V
Coil Power	400 mW
Coil Release Voltage(DC)	0.5 V
Coil Resistance	63 ohm
Coil Voltage(DC)-Max	8.5 V
Coil Voltage-Nom	5 V
Coil/Input Supply Type	DC
Contact AC Max Rating R Load	10A@120VAC
Contact Current(AC)-Max	10 A
Contact Current(DC)-Max	8 A
Contact DC Max Rating R Load	8A@30VDC
Contact Resistance	100 mohm
Contact Voltage(AC)-Max	120 V
Contact Voltage(DC)-Max	30 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	2000 Vrms
Dielectric Strength Between Open Contacts	750 Vrms
Electrical Life	100000 Cycle(s)
End Contact Material	Silver Alloy
Input Switching Control Type	Random
Insulation Resistance	100000000 ohm
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	5
Operate Time	10 ms
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
PCB Hole Count	5
Packing Method	TRAY
Physical Dimension	22.5mm x 16.5mm x 19mm
Reference Standard	CSA; IEC; UL; VDE
Relay Action	MOMENTARY
Relay Form	1 FORM C
Relay Function	SPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	5 ms
Sealing	SEALED TYPE
Terminal Length	0.0035 inch
Termination Type	SOLDER
Weight	12 g
