EE-SY201 データシート

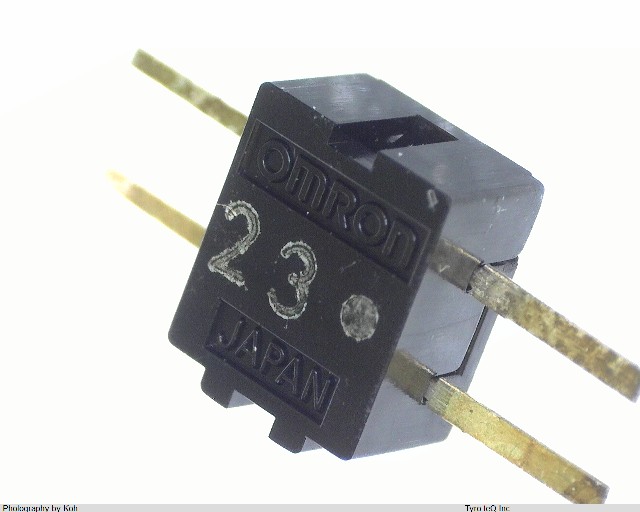

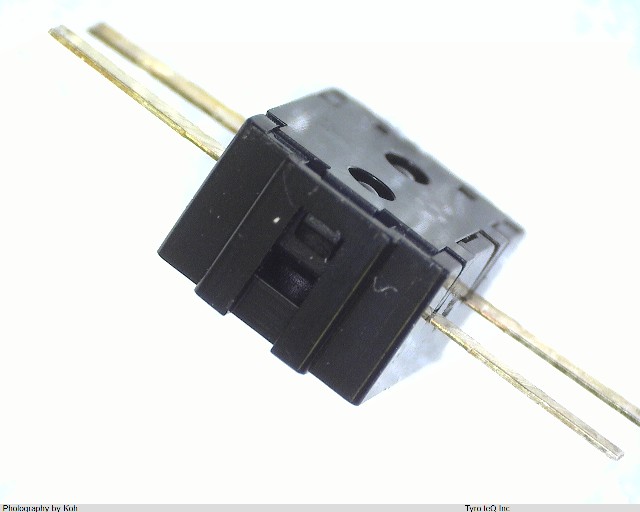

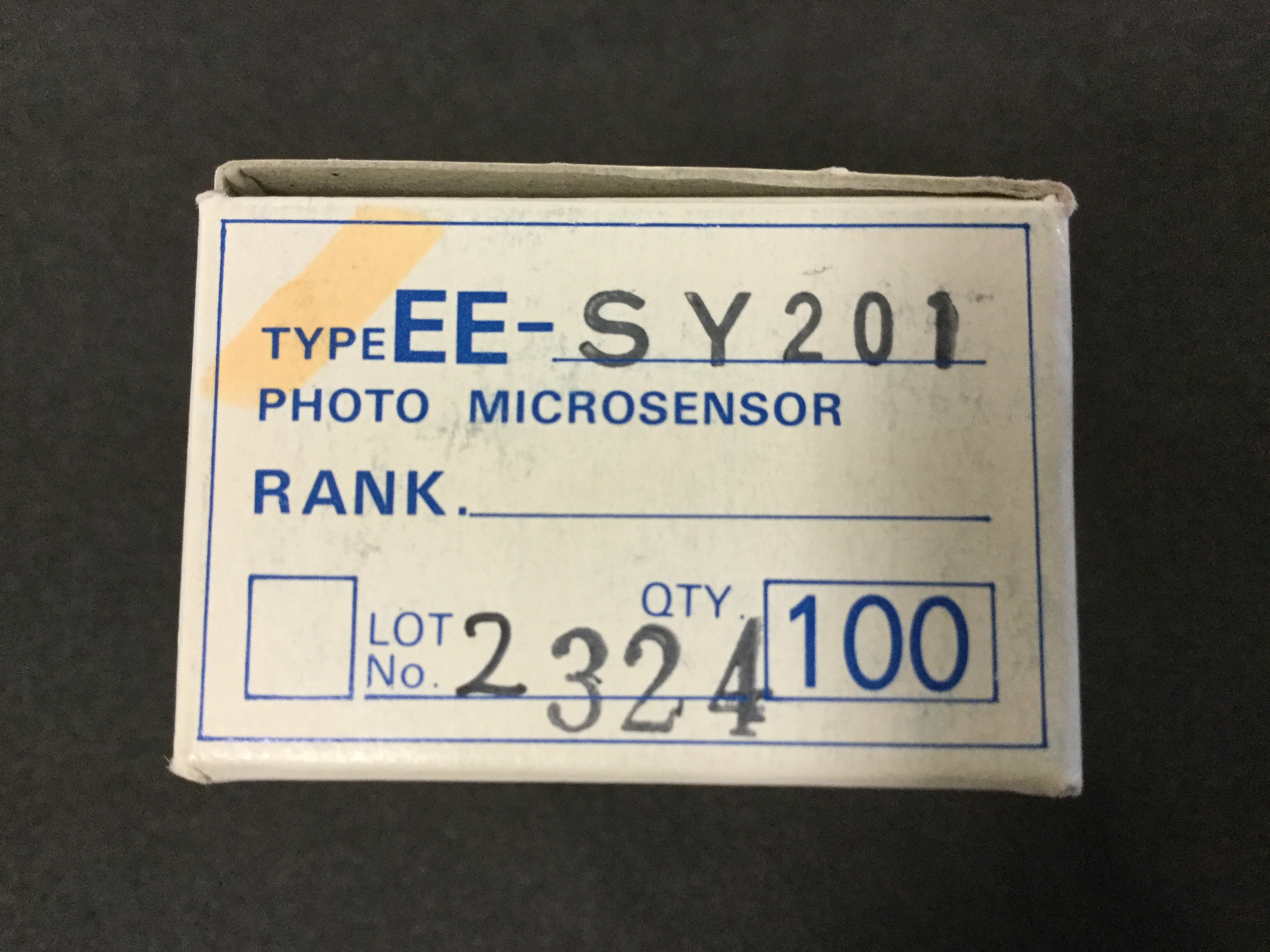

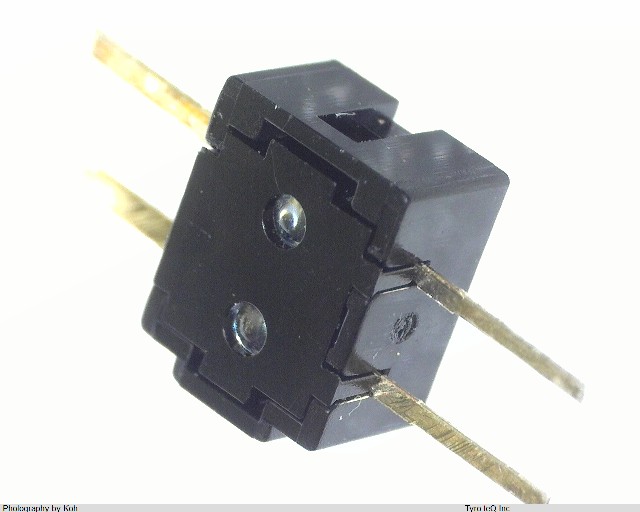

Name: EE-SY201
Brand: OMRON
SKU: 150027795-0000-0000-0000

EE-SY201 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

EE-SY201 の詳細情報

型番	EE-SY201
メーカー	OMRON
データシート
Additional Feature	2NA DARK CURRENT
Body Breadth	5.4 inch
Body Height	3.5 mm
Body Length or Diameter	6.8 mm
Measurement Range-Max (mm)	4 mm
Measurement Range-Min (mm)	4 mm
Mounting Feature	THROUGH HOLE MOUNT
Operating Current-Max	15 mA
Operating Temperature-Max	60 Cel
Operating Temperature-Min	-20 Cel
Output Range	0.003-0.008mA
Output Type	ANALOG CURRENT
Package Shape/Style	RECTANGULAR
Response Time	180 us
Sensors/Transducers Type	LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE
Supply Voltage-Max	2.6 V
Supply Voltage-Min	2 V
Termination Type	SOLDER
