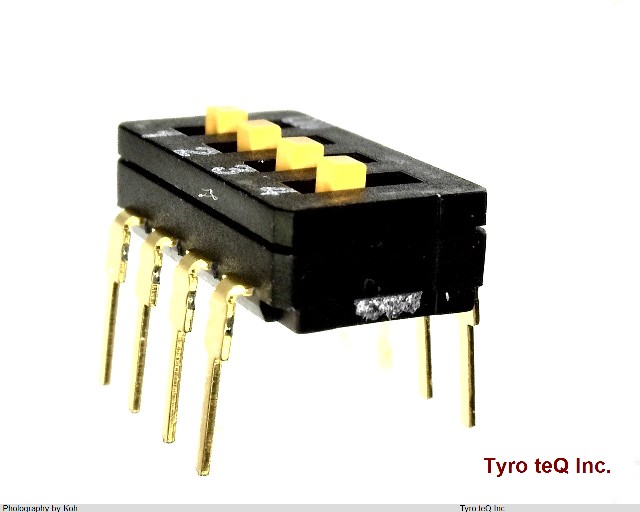

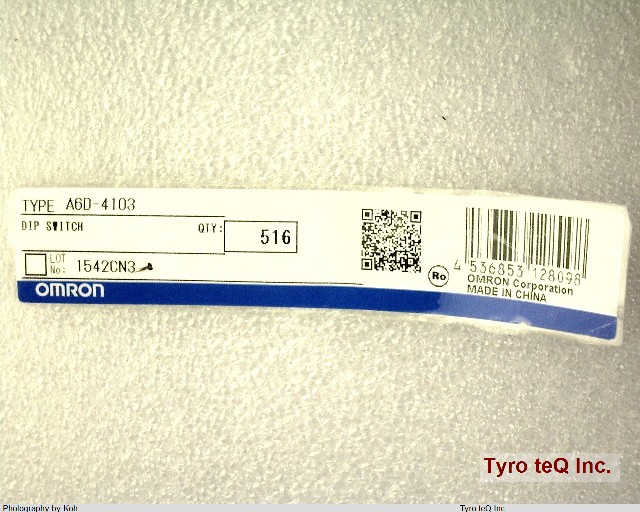

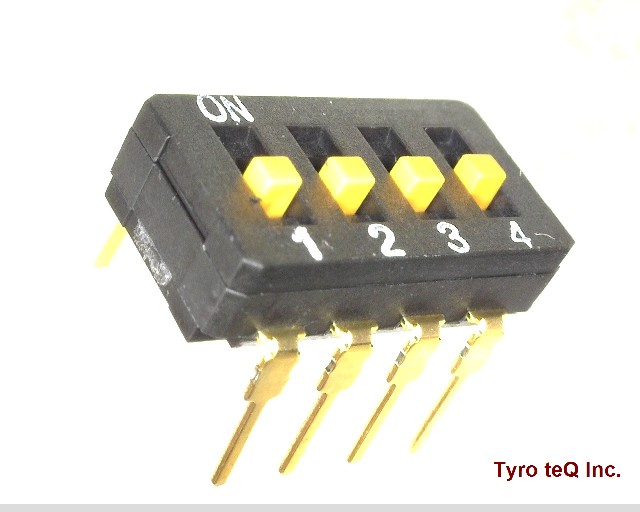

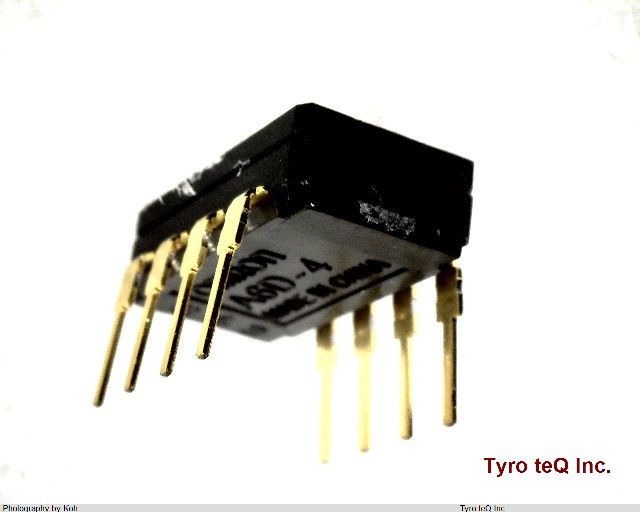

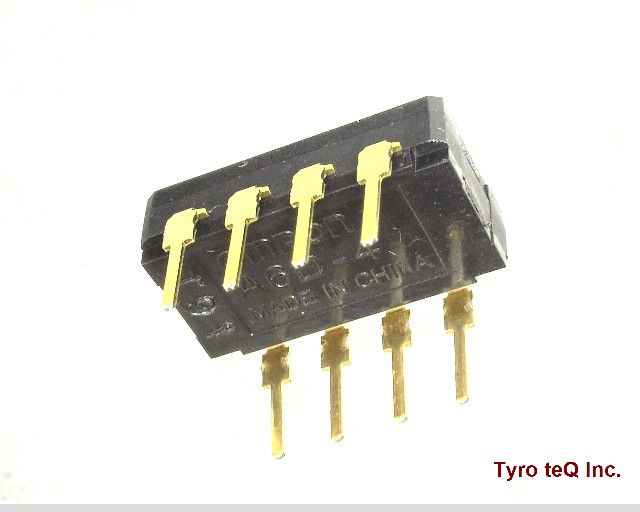

A6D-4103 データシート

Name: A6D-4103
Brand: OMRON
SKU: 110066306-0000-0000-0000

A6D-4103 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

A6D-4103 の詳細情報

型番	A6D-4103
メーカー	OMRON
データシート
Actuator Angle	0
Actuator Length	.039
Actuator Material	POLYPHENYLENE TEREPHTHALATE
Actuator Type	SLIDE
Additional Feature	SEALED CONSTRUCTION
Body Breadth	6.6 inch
Body Height	3.4 mm
Body Length or Diameter	12.2 mm
Center Contact Material	BERYLLIUM COPPER
Contact Current(DC)-Max	0.03 A
Contact DC Max Rating R Load	.03A@30VDC
Contact Function	ON-OFF
Contact Resistance	0.1 mohm
Contact Timing	MAKE-BEFORE-BREAK
Contact Voltage(DC)-Max	30 V
Dielectric Withstand Volts	500VAC
Electrical Life	2000 Cycle(s)
End Contact Material	BERYLLIUM COPPER
Insulation Resistance	100000000 ohm
Insulator Material	POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e4
Mounting Feature	THROUGH HOLE-STRAIGHT
Number of Positions	4
Number of Switch Sections	4
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-20 Cel
PCB Hole Count	8
Packing Method	TUBE
Sealing	IP64
Switch Action	LATCHED
Switch Function	4PST
Switch Type	SLIDE DIP SWITCH
Terminal Finish	Gold (Au)
Terminal Length	0.181 inch
Termination Type	SOLDER
