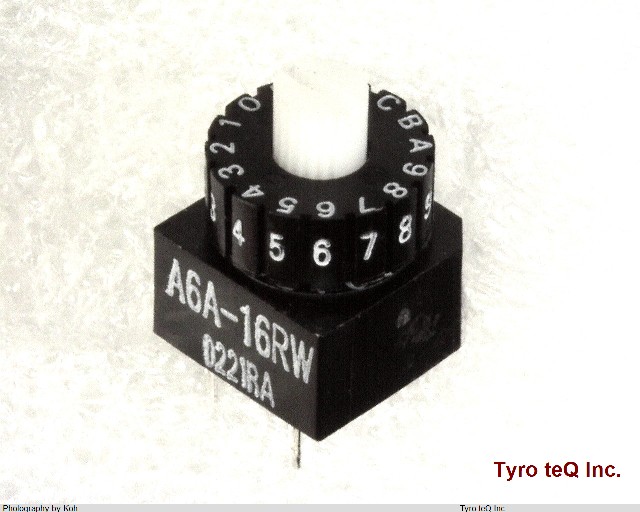

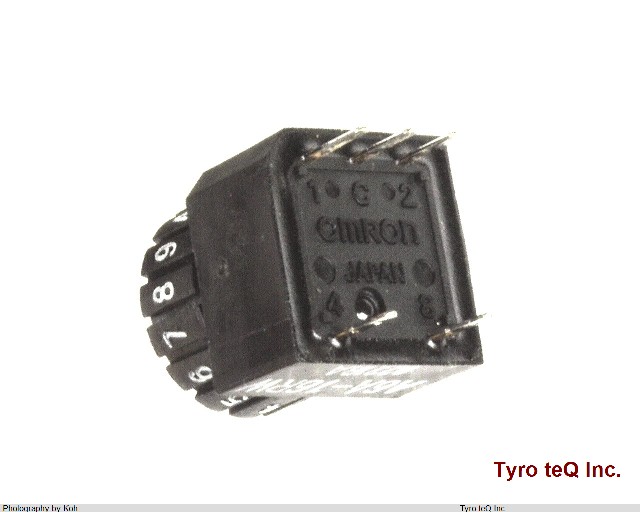

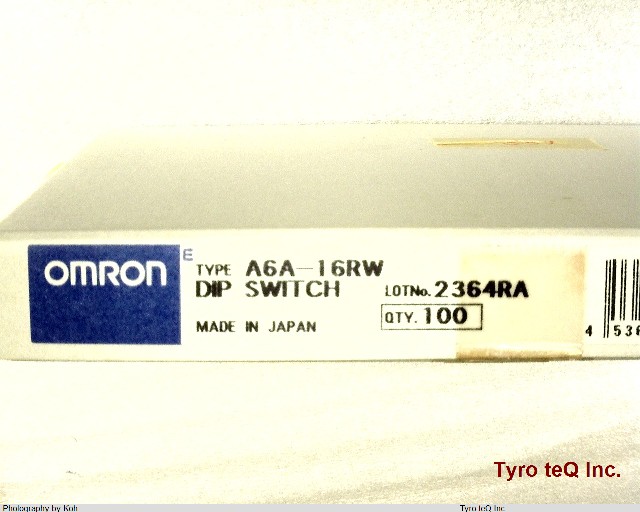

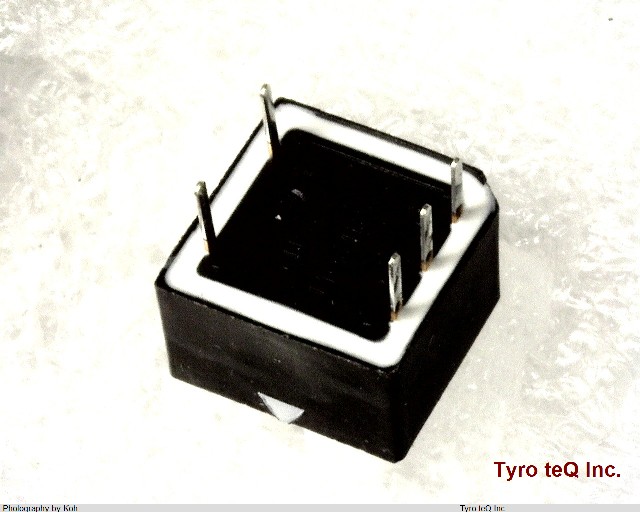

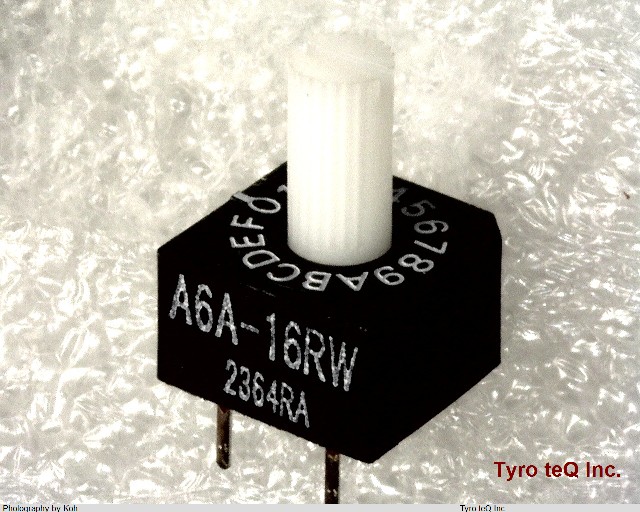

A6A-16RW データシート

Name: A6A-16RW
Brand: OMRON
SKU: 110066285-0000-0000-0000

A6A-16RW - OMRON の商品詳細ページです。

２営業日以内に回答いたします

A6A-16RW の詳細情報

型番	A6A-16RW
メーカー	OMRON
データシート
Actuator Length	0.287 inch
Actuator Material	POLYACETAL
Actuator Type	THUMBWHEEL TYPE
Additional Feature	WITH O-RING
Body Breadth	10 inch
Body Height	5.9 mm
Body Length or Diameter	10 mm
Bushing Length	0 inch
Center Contact Material	PHOSPHOR BRONZE
Center Contact Plating	GOLD OVER SILVER
Contact Current(DC)-Max	0.1 A
Contact DC Max Rating R Load	.1A@28VDC
Contact Function	ON-ON
Contact Resistance	0.2 mohm
Contact Timing	BREAK-BEFORE-MAKE
Contact Voltage(DC)-Max	28 V
Dielectric Withstand Volts	500VAC V
Electrical Life	2000 Cycle(s)
End Contact Material	PHOSPHOR BRONZE
End Contact Plating	GOLD OVER SILVER
Insulation Resistance	10000000 ohm
Insulator Material	POLYBUTYLENE TEREPHTHALATE
Mounting Feature	THROUGH HOLE-STRAIGHT
Number of Positions	16
Number of Switch Sections	1
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-10 Cel
PCB Hole Count	5
Switch Action	LATCHED
Switch Function	HEXADECIMAL
Switch Type	ROTARY CODED SWITCH
Terminal Length	0.126 inch
Terminal Material	BERYLLIUM COPPER
Termination Type	SOLDER
