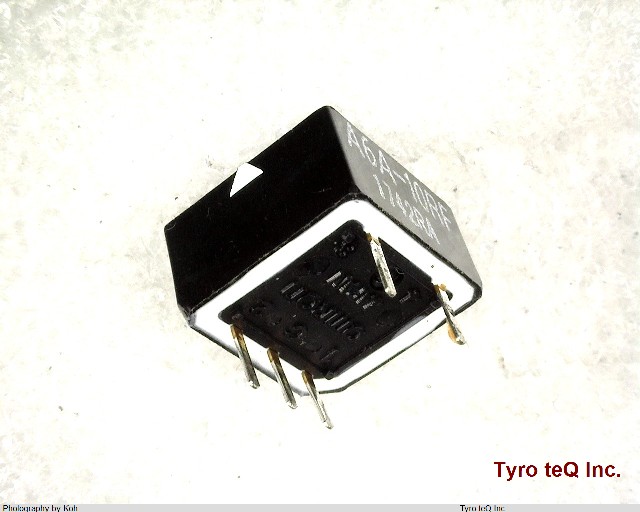

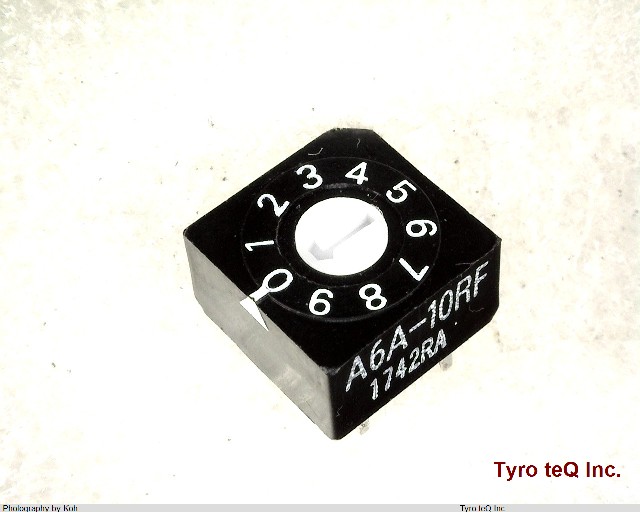

A6A-10RF データシート

Name: A6A-10RF
Brand: OMRON
SKU: 110066275-0000-0000-0000

A6A-10RF - OMRON の商品詳細ページです。

２営業日以内に回答いたします

A6A-10RF の詳細情報

型番	A6A-10RF
メーカー	OMRON
データシート
Actuator Length	0 inch
Actuator Material	POLYACETAL
Actuator Type	FLAT TYPE
Additional Feature	WITH O-RING
Body Breadth	10 inch
Body Height	5.9 mm
Body Length or Diameter	10 mm
Bushing Length	0 inch
Center Contact Material	PHOSPHOR BRONZE
Center Contact Plating	GOLD OVER SILVER
Contact Current(DC)-Max	0.1 A
Contact DC Max Rating R Load	.1A@28VDC
Contact Function	ON-ON
Contact Resistance	0.2 mohm
Contact Timing	BREAK-BEFORE-MAKE
Contact Voltage(DC)-Max	28 V
Dielectric Withstand Volts	500VAC V
Electrical Life	2000 Cycle(s)
End Contact Material	PHOSPHOR BRONZE
End Contact Plating	GOLD OVER SILVER
Indexing Angle	36 deg
Insulation Resistance	10000000 ohm
Insulator Material	POLYBUTYLENE TEREPHTHALATE
Mounting Feature	THROUGH HOLE-STRAIGHT
Number of Positions	10
Number of Switch Sections	1
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-10 Cel
PCB Hole Count	5
Switch Action	LATCHED
Switch Function	BINARY CODED DECIMAL
Switch Type	ROTARY CODED SWITCH
Terminal Length	0.126 inch
Terminal Material	BERYLLIUM COPPER
Termination Type	SOLDER
