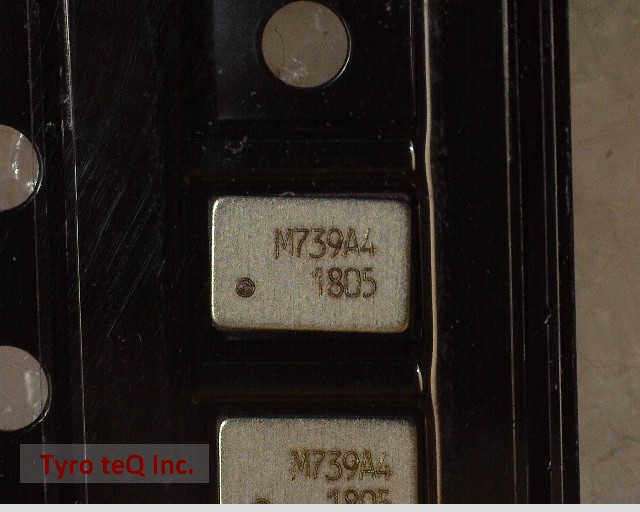

RV-1805-C3 MICROCRYSTAL

RV-1805-C3

RV-1805-C3 - MICRO CRYSTAL の商品詳細ページです。

1

15時間15分後 以内に見積もり依頼を頂ければ、
05月10日(金) 9:00 までに見積もり回答いたします。

  • 個
この商品のお問い合わせ

RV-1805-C3 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番RV-1805-C3
メーカーMICRO CRYSTAL
Additional Feature IT IS ALSO AVAILABLE AT 1.6V TO 3.6V SUPPLY VOLTAGE
Bus Compatibility I2C
External Data Bus Width 0
Information Access Method I2C
Interrupt Capability Y
J-STD-609 Code e4
JESD-30 Code R-PDSO-N10
JESD-609 Code e4
Length 3.7 mm
Length (mm) 3.7
Moisture Sensitivity Level 1
Number of Terminals 10
On Chip Data RAM Width 8
Operating Temperature-Max 85 Cel
Operating Temperature-Max (Cel) 85
Operating Temperature-Min -40 Cel
Operating Temperature-Min (Cel) -40
Output Clock Frequency-Max 0.032768 MHz
Package Body Material PLASTIC/EPOXY
Package Code VSON
Package Equivalence Code SOLCC10,.098,35
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel) 260
RAM (words) 256
Screening Level AEC-Q200
Screening Level / Reference Standard AEC-Q200
Seated Height-Max 0.9 mm
Seated Height-Max (mm) 0.9
Supply Current-Max 8.0E-5 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Max (V) 3.6
Supply Voltage-Min 1.5 V
Supply Voltage-Min (V) 1.5
Supply Voltage-Nom 3 V
Supply Voltage-Nom (V) 3
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish GOLD
Terminal Form NO LEAD
Terminal Pitch 0.8 mm
Terminal Pitch (mm) 0.8
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 20
Volatile NO
Width 2.5 mm
Width (mm) 2.5
uPs/uCs/Peripheral ICs Type TIMER, REAL TIME CLOCK
会社名称MICRO CRYSTAL AG
設立1978
URLhttps://www.microcrystal.com/
