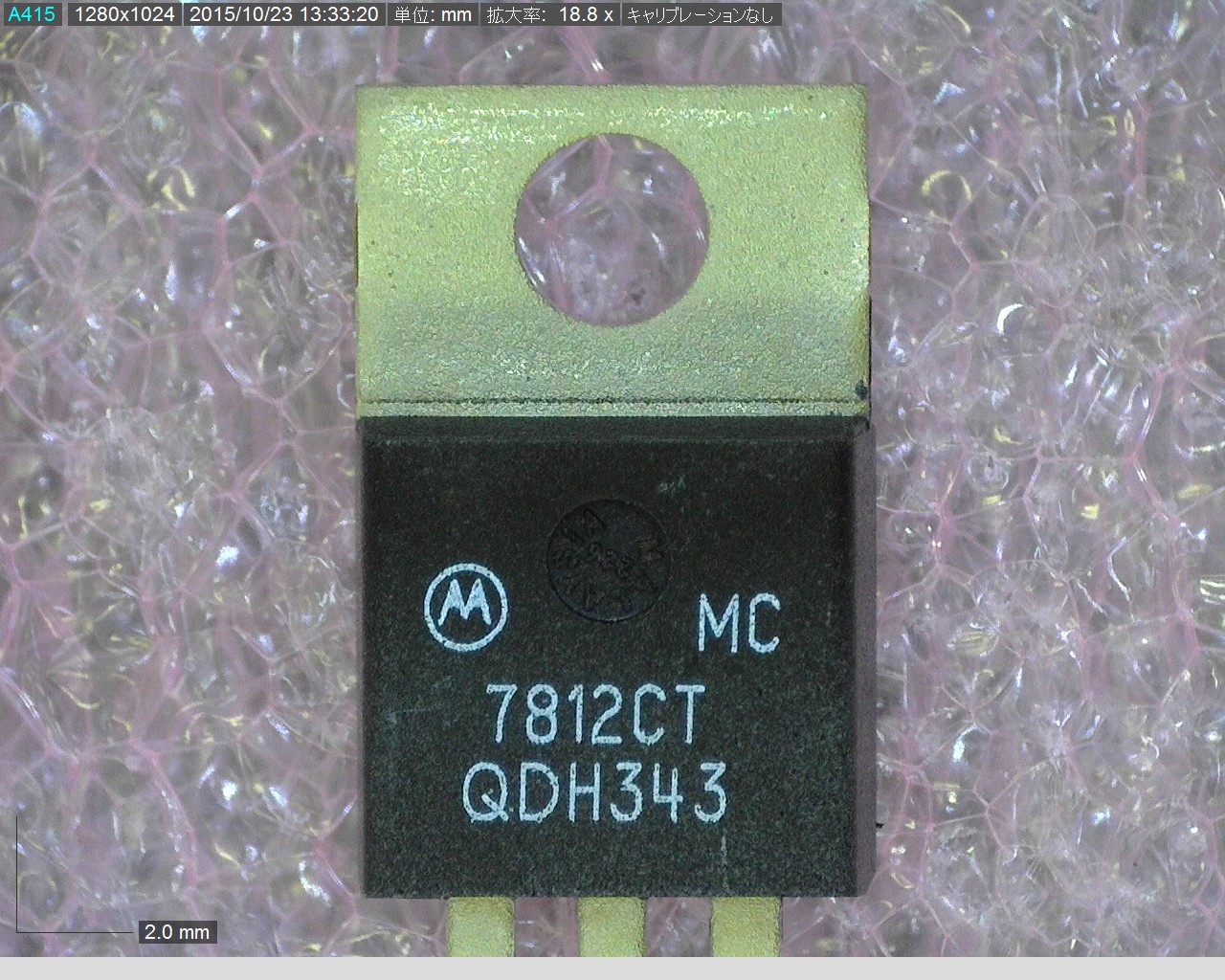

MC7812CT Microcommercial

MC7812CT

MC7812CT - MICRO COMMERCIAL の商品詳細ページです。

1

14時間28分後 以内に見積もり依頼を頂ければ、
05月14日(火) 9:00 までに見積もり回答いたします。

  • 個
この商品のお問い合わせ

MC7812CT の詳細情報

  • 仕様・詳細
  • メーカー情報
型番MC7812CT
メーカーMICRO COMMERCIAL
Adjustability FIXED
Dropout Voltage1-Nom 2 V
Input Voltage Absolute-Max 30 V
Input Voltage-Max 30 V
Input Voltage-Min 14 V
JESD-30 Code R-PSFM-T3
JESD-609 Code e0
Line Regulation-Max 0.048 %
Load Regulation-Max 0.06 %
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 3
Operating Temperature, TJ-Max 125 Cel
Operating Temperature, TJ-Min -40 Cel
Output Current1-Max 1 A
Output Voltage1-Max 12.34 V
Output Voltage1-Min 11.4 V
Output Voltage1-Nom 12 V
Package Body Material PLASTIC/EPOXY
Package Code TO-220
Package Equivalence Code SIP3,.1TB
Package Shape RECTANGULAR
Package Style FLANGE MOUNT Meter
Packing Method RAIL
Peak Reflow Temperature (Cel) 235
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Sub Category Other Regulators
Surface Mount NO
Technology BIPOLAR
Terminal Finish MATTE TIN
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 10
Voltage Tolerance-Max 2.8 %
会社名称Micro Commercial Components Corp.
設立1991
所在地20736 Marilla Street Chatsworth, CA91311, USA
URLhttp://www.mccsemi.com/
