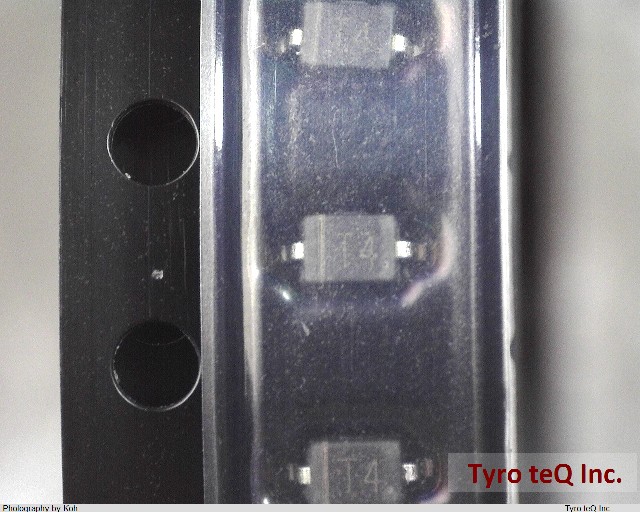

1N4148WX-TP

Name: 1N4148WX-TP
Brand: MICRO COMMERCIAL
SKU: 20499021-0000-0000-0000

1N4148WX-TP - MICRO COMMERCIAL の商品詳細ページです。

２営業日以内に回答いたします

1N4148WX-TP の詳細情報

型番	1N4148WX-TP
メーカー	MICRO COMMERCIAL
Application	FAST RECOVERY
Breakdown Voltage-Min	100 V
Configuration	SINGLE
Diode Element Material	SILICON
Diode Type	RECTIFIER DIODE
Forward Voltage-Max (VF)	1 V
JESD-30 Code	R-PDSO-G2
JESD-609 Code	e3
Moisture Sensitivity Level	1
Non-rep Pk Forward Current-Max	2 A
Number of Elements	1
Number of Phases	1
Number of Terminals	2
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-55 Cel
Output Current-Max	0.15 A
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Dissipation-Max	0.2 W
Rep Pk Reverse Voltage-Max	100 V
Reverse Current-Max	1 uA
Reverse Recovery Time-Max	0.004 us
Reverse Test Voltage	75 V
Surface Mount	YES
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10

会社名称	Micro Commercial Components Corp.
設立	1991
所在地	20736 Marilla Street Chatsworth, CA91311, USA
URL	http://www.mccsemi.com/
