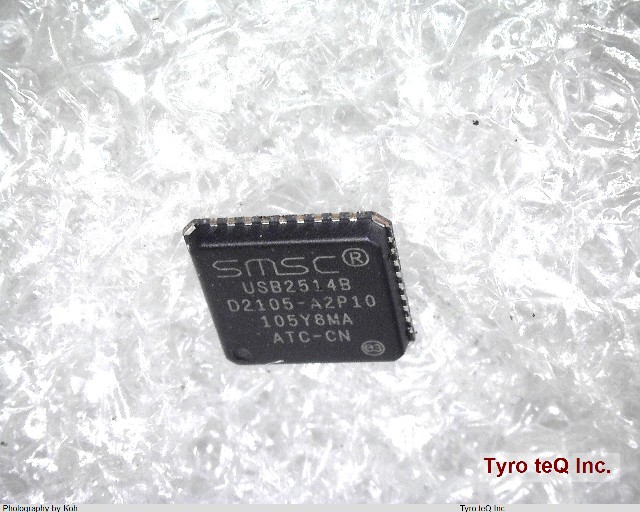

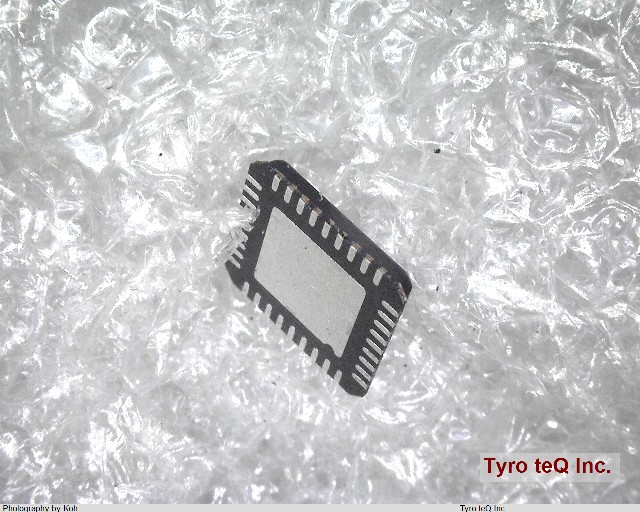

USB2514B-AEZC-TR

Name: USB2514B-AEZC-TR
Brand: MICROCHIP
SKU: 310096774-0000-0000-0000

USB2514B-AEZC-TR - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

USB2514B-AEZC-TR の詳細情報

型番	USB2514B-AEZC-TR
メーカー	MICROCHIP
Additional Feature	ALSO REQUIRES 3.3V SUPPLY
Address Bus Width	0
Bus Compatibility	I2C
Clock Frequency-Max	24 MHz
Clock Frequency-Max (MHz)	24
External Data Bus Width	0
J-STD-609 Code	e3
JESD-30 Code	S-PQCC-N36
Length	6 mm
Length (mm)	6
Number of Terminals	36
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Equivalence Code	LCC36,.24SQ,20
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Screening Level / Reference Standard	TS 16949
Seated Height-Max	1 mm
Seated Height-Max (mm)	1
Supply Voltage-Max	3.6 V
Supply Voltage-Max (V)	3.6
Supply Voltage-Min	3 V
Supply Voltage-Min (V)	3
Supply Voltage-Nom	3.3 V
Supply Voltage-Nom (V)	3.3
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	QUAD
Width	6 mm
Width (mm)	6
uPs/uCs/Peripheral ICs Type	BUS CONTROLLER, UNIVERSAL SERIAL BUS
