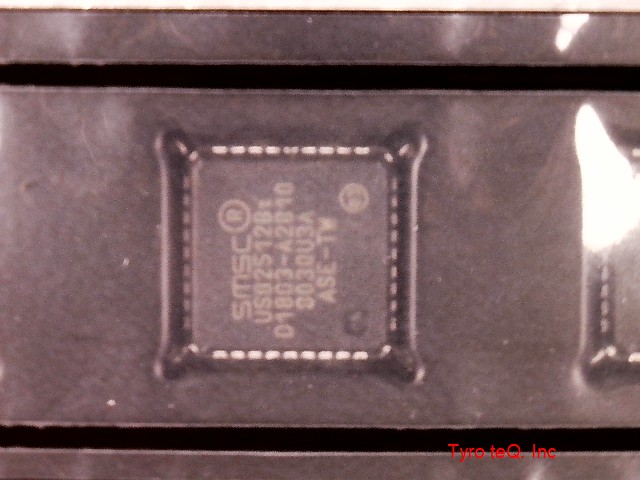

USB2512BI-AEZG
1
237時間54分後
以内に見積もり依頼を頂ければ、
05月08日(水) 9:00
までに見積もり回答いたします。
- 個
USB2512BI-AEZG の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | USB2512BI-AEZG |
|---|---|
| メーカー | MICROCHIP |
| Additional Feature | ALSO REQUIRES 3.3V SUPPLY |
| Address Bus Width | 0 |
| Bus Compatibility | I2C |
| Clock Frequency-Max | 24 MHz |
| Clock Frequency-Max (MHz) | 24 |
| DLA Qualification | Not Qualified |
| External Data Bus Width | 0 |
| J-STD-609 Code | e3 |
| JESD-30 Code | S-PQCC-N36 |
| Length | 6 mm |
| Length (mm) | 6 |
| Moisture Sensitivity Level | 3 |
| Number of Terminals | 36 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Min (Cel) | -40 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | HVQCCN |
| Package Equivalence Code | LCC36,.24SQ,20 |
| Package Shape | SQUARE |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Screening Level / Reference Standard | TS 16949 |
| Seated Height-Max | 1 mm |
| Seated Height-Max (mm) | 1 |
| Supply Voltage-Max | 3.6 V |
| Supply Voltage-Max (V) | 3.6 |
| Supply Voltage-Min | 3 V |
| Supply Voltage-Min (V) | 3 |
| Supply Voltage-Nom | 3.3 V |
| Supply Voltage-Nom (V) | 3.3 |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | NO LEAD |
| Terminal Pitch | 0.5 mm |
| Terminal Pitch (mm) | 0.5 |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Width | 6 mm |
| Width (mm) | 6 |
| uPs/uCs/Peripheral ICs Type | BUS CONTROLLER, UNIVERSAL SERIAL BUS |
| 会社名称 | Microchip Technology Inc. |
|---|---|
| 所在地 | 2355 West Chandler Blvd. Chandler, Arizona, USA 85224-6199 |
| URL | http://www.microchip.com/ |
