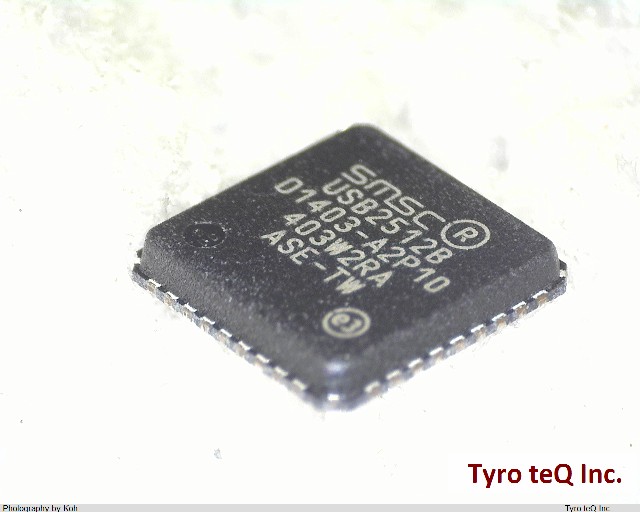

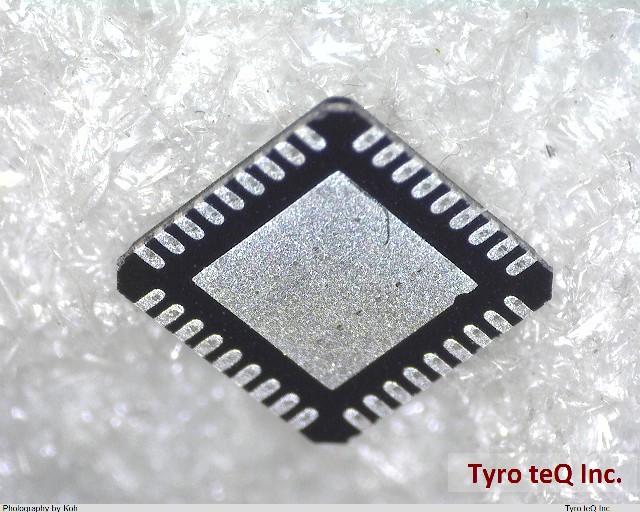

USB2512B-AEZG

Name: USB2512B-AEZG
Brand: MICROCHIP
SKU: 310104062-0000-0000-0000

USB2512B-AEZG - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

USB2512B-AEZG の詳細情報

型番	USB2512B-AEZG
メーカー	MICROCHIP
Additional Feature	ALSO REQUIRES 3.3V SUPPLY
Address Bus Width	0
Bus Compatibility	I2C
Clock Frequency-Max	24 MHz
Clock Frequency-Max (MHz)	24
DLA Qualification	Not Qualified
External Data Bus Width	0
J-STD-609 Code	e3
JESD-30 Code	S-PQCC-N36
JESD-609 Code	e3
Length	6 mm
Length (mm)	6
Number of Terminals	36
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Equivalence Code	LCC36,.24SQ,20
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Screening Level	TS 16949
Screening Level / Reference Standard	TS 16949
Seated Height-Max	1 mm
Seated Height-Max (mm)	1
Supply Current-Max	85 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Max (V)	3.6
Supply Voltage-Min	3 V
Supply Voltage-Min (V)	3
Supply Voltage-Nom	3.3 V
Supply Voltage-Nom (V)	3.3
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	6 mm
Width (mm)	6
uPs/uCs/Peripheral ICs Type	BUS CONTROLLER, UNIVERSAL SERIAL BUS
