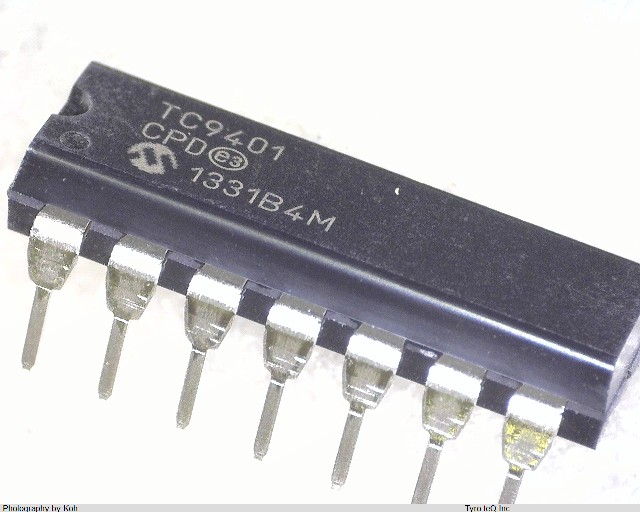

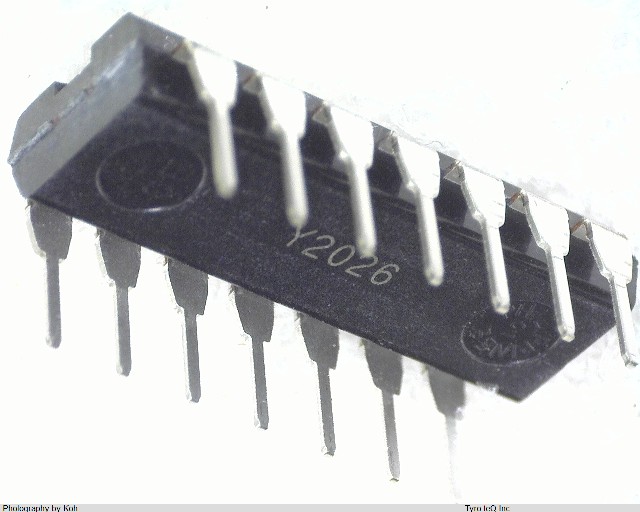

TC9401CPD データシート

Name: TC9401CPD
Brand: MICROCHIP
SKU: 300226992-0000-0000-0000

TC9401CPD - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

TC9401CPD の詳細情報

型番	TC9401CPD
メーカー	MICROCHIP
データシート
Converter Type	VOLTAGE TO FREQUENCY CONVERTER
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.24 mm
Linearity Error-Max (EL)	0.02 %
Negative Input Voltage-Max	-2 V
Negative Supply Voltage-Max	-7.5 V
Negative Supply Voltage-Min	-4 V
Negative Supply Voltage-Nom	-5 V
Number of Functions	1
Number of Terminals	14
Operating Frequency-Max	0.1 MHz
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Positive Input Voltage-Max	5 V
Power Supplies	+-5 V
Qualification Status	Not Qualified
Screening Level	TS 16949
Seated Height-Max	5.08 mm
Sub Category	Analog Special Function Converters
Supply Current-Max	6 mA
Supply Voltage-Max	7.5 V
Supply Voltage-Min	4 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
