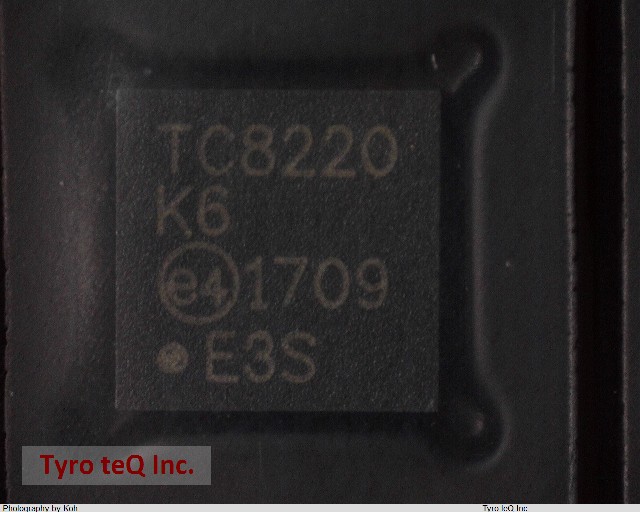

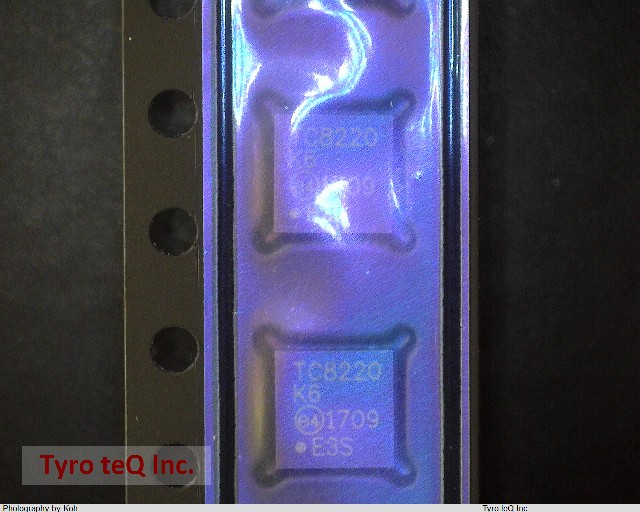

TC8220K6-G

Name: TC8220K6-G
Brand: MICROCHIP
SKU: 300392536-0000-0000-0000

TC8220K6-G - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

TC8220K6-G の詳細情報

型番	TC8220K6-G
メーカー	MICROCHIP
Additional Feature	LOGIC LEVEL COMPATIBLE, LOW THRESHOLD
Application	SWITCHING
Configuration	SEPARATE, 4 ELEMENTS WITH BUILT-IN DIODE AND RESISTOR
DLA Qualification	Not Qualified
DS Breakdown Voltage-Min	200 V
DS Breakdown Voltage-Min (V)	200
Drain-source On Resistance-Max	7 ohm
Drain-source On Resistance-Max (ohm)	6
FET Technology	METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss) (pF)	2
J-STD-609 Code	e4
JESD-30 Code	R-PDSO-N12
Number of Elements	4
Number of Terminals	12
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max (Cel)	150
Operating Temperature-Min (Cel)	-55
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity/Channel Type	N-CHANNEL AND P-CHANNEL
Qualification Status	Not Qualified
Surface Mount	YES
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	NO LEAD
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	SWITCHING
Transistor Element Material	SILICON
Turn-off Time-Max (toff) (ns)	35
Turn-on Time-Max (ton) (ns)	25
