TC4452VPA データシート

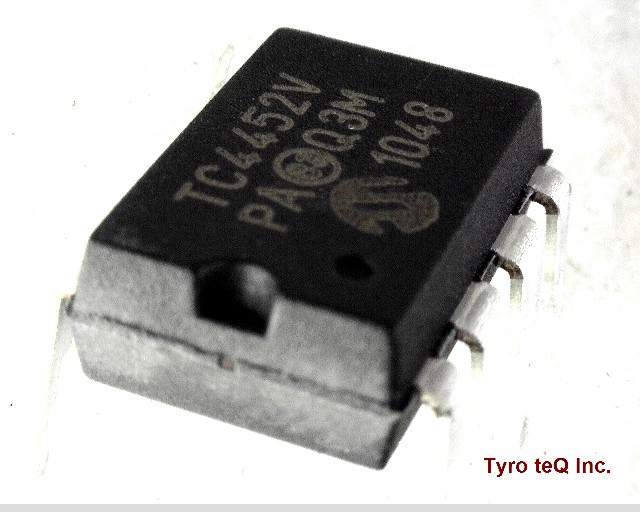

Name: TC4452VPA
Brand: MICROCHIP
SKU: 300226517-0000-0000-0000

TC4452VPA - MICROCHIP の商品詳細ページです。

6時間58分後以内に見積もり依頼を頂ければ、
11月05日(火) 9:00 までに見積もり回答いたします。

検討リストに追加する

TC4452VPA の詳細情報

型番	TC4452VPA
メーカー	MICROCHIP
データシート
High Side Driver	YES
Input Characteristics	SCHMITT TRIGGER
Interface IC Type	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e3
Length	9.271 mm
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	TOTEM-POLE
Output Peak Current Limit-Nom	13 A
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	4.5/18 V
Qualification Status	Not Qualified
Screening Level	TS 16949
Seated Height-Max	5.334 mm
Sub Category	MOSFET Drivers
Supply Current-Max	0.4 mA
Supply Voltage-Max	18 V
Supply Voltage-Min	4.5 V
Supply Voltage1-Max	18 V
Supply Voltage1-Min	4.5 V
Surface Mount	NO
Temperature Grade	AUTOMOTIVE
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Turn-off Time	0.092 us
Turn-on Time	0.092 us
Width	7.62 mm
