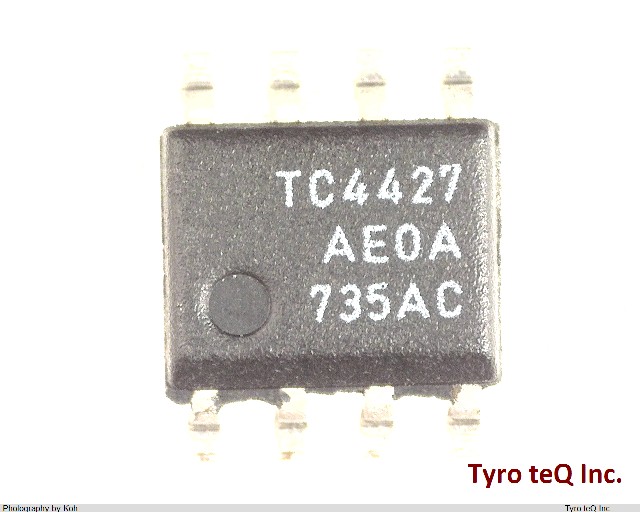

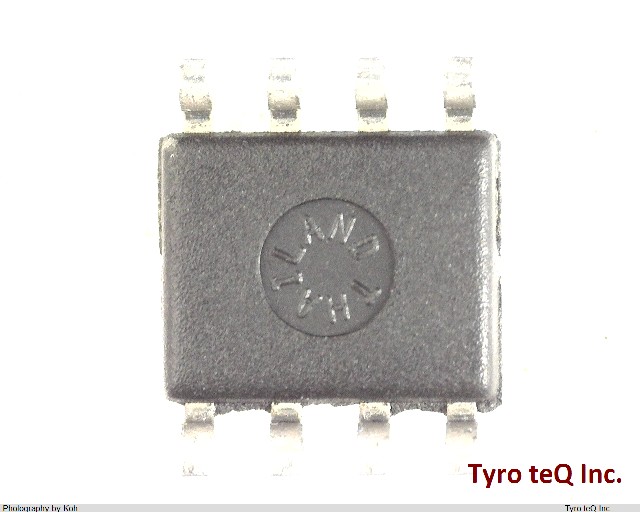

TC4427AEOA データシート

Name: TC4427AEOA
Brand: MICROCHIP
SKU: 300226527-0000-0000-0000

TC4427AEOA - MICROCHIP の商品詳細ページです。

8時間8分後以内に見積もり依頼を頂ければ、
05月17日(金) 9:00 までに見積もり回答いたします。

検討リストに追加する

TC4427AEOA の詳細情報

型番	TC4427AEOA
メーカー	MICROCHIP
データシート
DLA Qualification	Not Qualified
High Side Driver	NO
Input Characteristics	SCHMITT TRIGGER
Interface IC Type	BUFFER OR INVERTER BASED MOSFET DRIVER
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Length (mm)	4.9
Moisture Sensitivity Level	1
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Output Characteristics	TOTEM-POLE
Output Peak Current Limit-Nom	1.5 A
Output Peak Current Limit-Nom (A)	1.5
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	4.5/18 V
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Seated Height-Max (mm)	1.75
Sub Category	MOSFET Drivers
Supply Voltage-Max	18 V
Supply Voltage-Max (V)	18
Supply Voltage-Min	4.5 V
Supply Voltage-Min (V)	4.5
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Turn-off Time	0.045 us
Turn-off Time (us)	0.045
Turn-on Time	0.045 us
Turn-on Time (us)	0.045
Width	3.9 mm
Width (mm)	3.91
