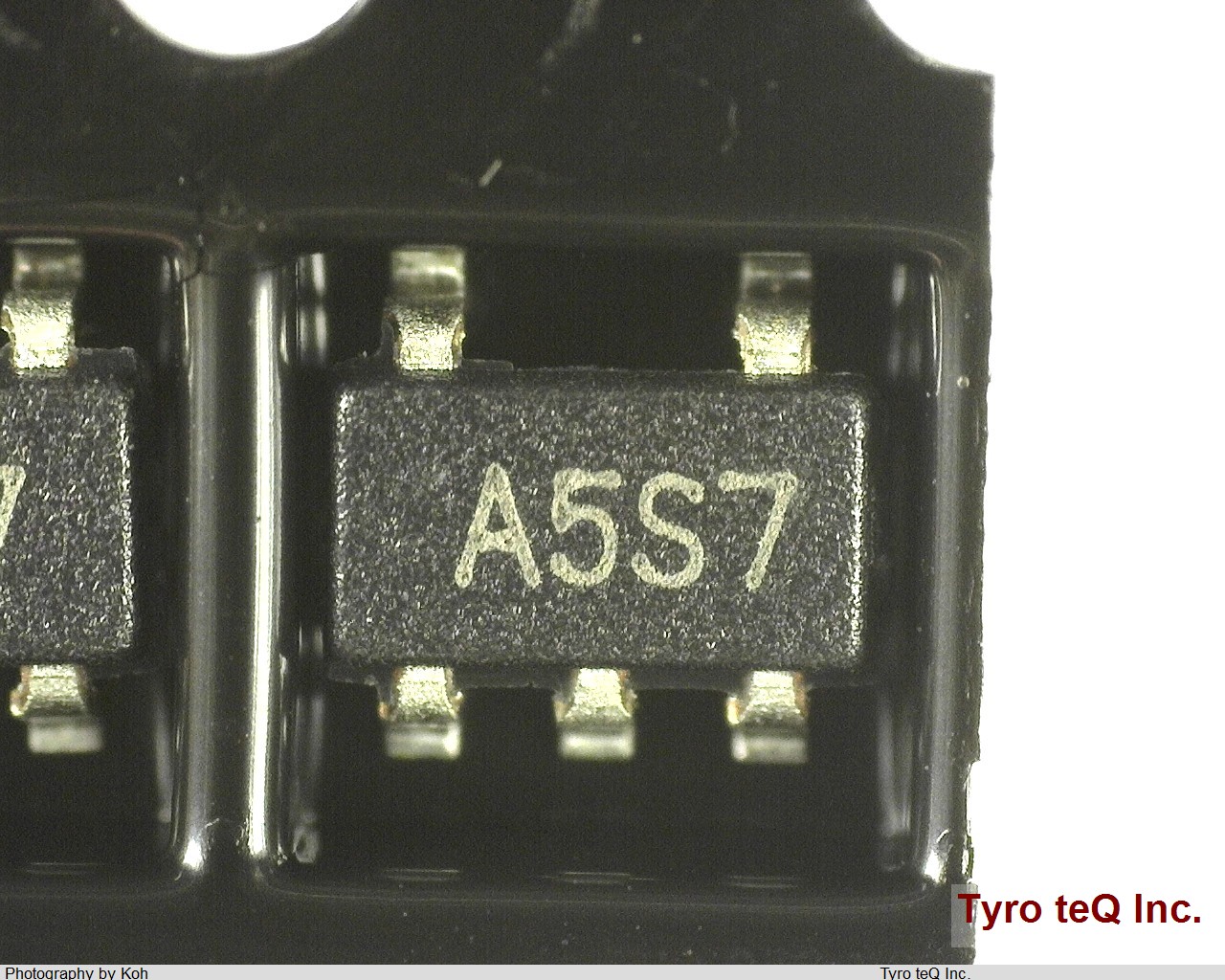

TC1014-3.3VCT713 Microchip

TC1014-3.3VCT713 - MICROCHIP の商品詳細ページです。

1

184時間4分後 以内に見積もり依頼を頂ければ、
05月08日(水) 9:00 までに見積もり回答いたします。

  • 個
この商品のお問い合わせ

TC1014-3.3VCT713 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番TC1014-3.3VCT713
メーカーMICROCHIP
Adjustability FIXED
Dropout Voltage1-Max 0.12 V
Dropout Voltage1-Max (V) 0.12
Dropout Voltage1-Nom 0.085 V
Dropout Voltage1-Nom (V) 0.085
Input Voltage Absolute-Max 6.5 V
Input Voltage Absolute-Max (V) 6.5
Input Voltage-Max 6 V
Input Voltage-Max (V) 6
Input Voltage-Min 4.3 V
Input Voltage-Min (V) 4.3
J-STD-609 Code e3
JESD-30 Code R-PDSO-G5
JESD-609 Code e3
Length 2.9 mm
Length (mm) 2.9
Line Regulation-Max 0.01155 %
Line Regulation-Max (V) 0.01155
Load Regulation-Max 0.066 %
Load Regulation-Max (V) 0.066
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 5
Operating Temperature TJ-Max (Cel) 125
Operating Temperature TJ-Min (Cel) -40
Operating Temperature, TJ-Max 125 Cel
Operating Temperature, TJ-Min -40 Cel
Output Current1-Max 0.12 A
Output Current1-Max (A) 0.12
Output Voltage1-Max 3.3825 V
Output Voltage1-Max (V) 3.3825
Output Voltage1-Min 3.2175 V
Output Voltage1-Min (V) 3.2175
Output Voltage1-Nom 3.3 V
Output Voltage1-Nom (V) 3.3
Package Body Material PLASTIC/EPOXY
Package Code LSSOP
Package Equivalence Code TSOP5/6,.11,37
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method TR
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Surface Mount YES
Technology CMOS
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Position DUAL
会社名称Microchip Technology Inc.
所在地2355 West Chandler Blvd. Chandler, Arizona, USA 85224-6199
URLhttp://www.microchip.com/
