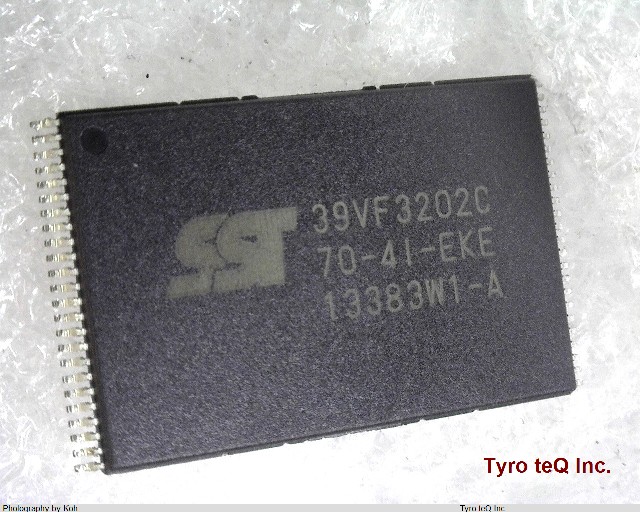

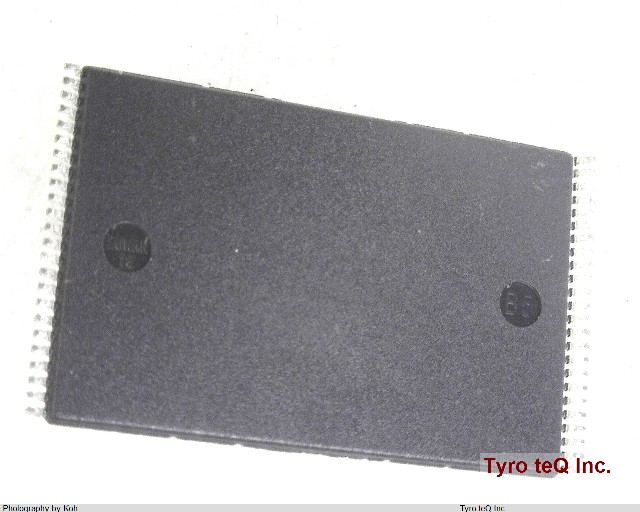

SST39VF3202C-70-4I-EKE データシート

Name: SST39VF3202C-70-4I-EKE
Brand: MICROCHIP
SKU: 290415967-0000-0000-0000

SST39VF3202C-70-4I-EKE - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

SST39VF3202C-70-4I-EKE の詳細情報

型番	SST39VF3202C-70-4I-EKE
メーカー	MICROCHIP
データシート
Access Time-Max (ns)	70
Additional Feature	TOP BOOT-BLOCK
Boot Block	TOP
Command User Interface	YES
Common Flash Interface	YES
DLA Qualification	Not Qualified
Data Polling	YES
Data Retention Time-Min	100
Endurance (Write/Erase Cycles)	100000
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G48
Length (mm)	18.4
Memory Density (bits)	33554432
Memory IC Type	FLASH
Memory Organization	2MX16
Memory Width	16
Moisture Sensitivity Level	3
Number of Functions	1
Number of Ports	1
Number of Sectors/Size	8,63
Number of Terminals	48
Number of Words (words)	2097152
Number of Words Code	2M
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max (Cel)	85
Operating Temperature-Min (Cel)	-40
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	TSOP1
Package Equivalence Code	TSSOP48,.8,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	260
Power Supplies (V)	3/3.3
Programming Voltage (V)	3
Ready/Busy	YES
Seated Height-Max (mm)	1.2
Sector Size (words)	4K,32K
Standby Current-Max (A)	5.0E-5
Sub Category	Flash Memories
Supply Current-Max (mA)	15
Supply Voltage-Max (V)	3.6
Supply Voltage-Min (V)	2.7
Supply Voltage-Nom (V)	3
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
