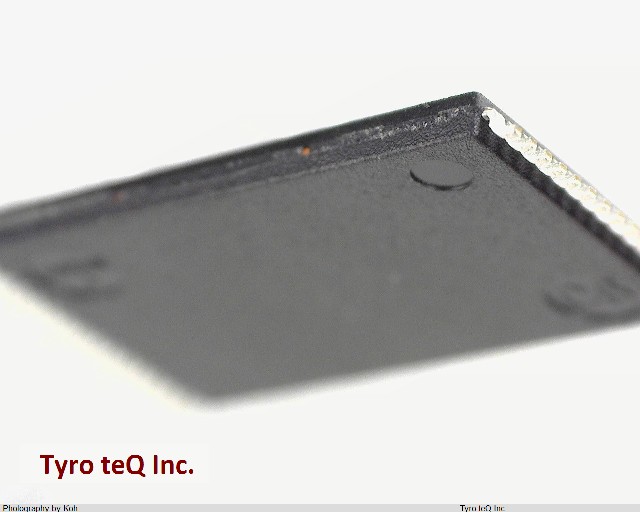

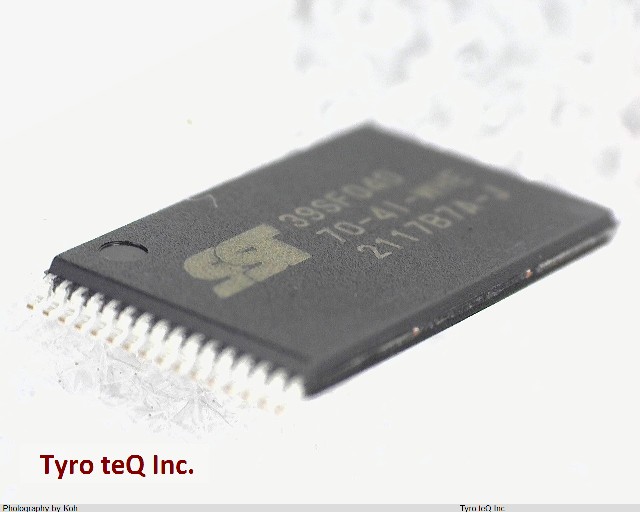

SST39SF040-70-4I-WHE

Name: SST39SF040-70-4I-WHE
Brand: MICROCHIP
SKU: 290454540-0000-0000-0000

SST39SF040-70-4I-WHE - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

SST39SF040-70-4I-WHE の詳細情報

型番	SST39SF040-70-4I-WHE
メーカー	MICROCHIP
Access Time-Max (ns)	70
Command User Interface	YES
DLA Qualification	Not Qualified
Data Polling	YES
Data Retention Time-Min	100
Endurance (Write/Erase Cycles)	100000
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G32
Length (mm)	12.4
Memory Density (bits)	4194304
Memory IC Type	FLASH
Memory Organization	512KX8
Memory Width	8
Moisture Sensitivity Level	3
Number of Functions	1
Number of Ports	1
Number of Sectors/Size	128
Number of Terminals	32
Number of Words (words)	524288
Number of Words Code	512K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max (Cel)	85
Operating Temperature-Min (Cel)	-40
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP32,.56,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	260
Power Supplies (V)	5
Programming Voltage (V)	5
Seated Height-Max (mm)	1.2
Sector Size (words)	4K
Standby Current-Max (A)	0.0001
Sub Category	Flash Memories
Supply Current-Max (mA)	35
Supply Voltage-Max (V)	5.5
Supply Voltage-Min (V)	4.5
Supply Voltage-Nom (V)	5
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch (mm)	0.5
Terminal Position	DUAL
Toggle Bit	YES
Type	NOR TYPE
Width (mm)	8
