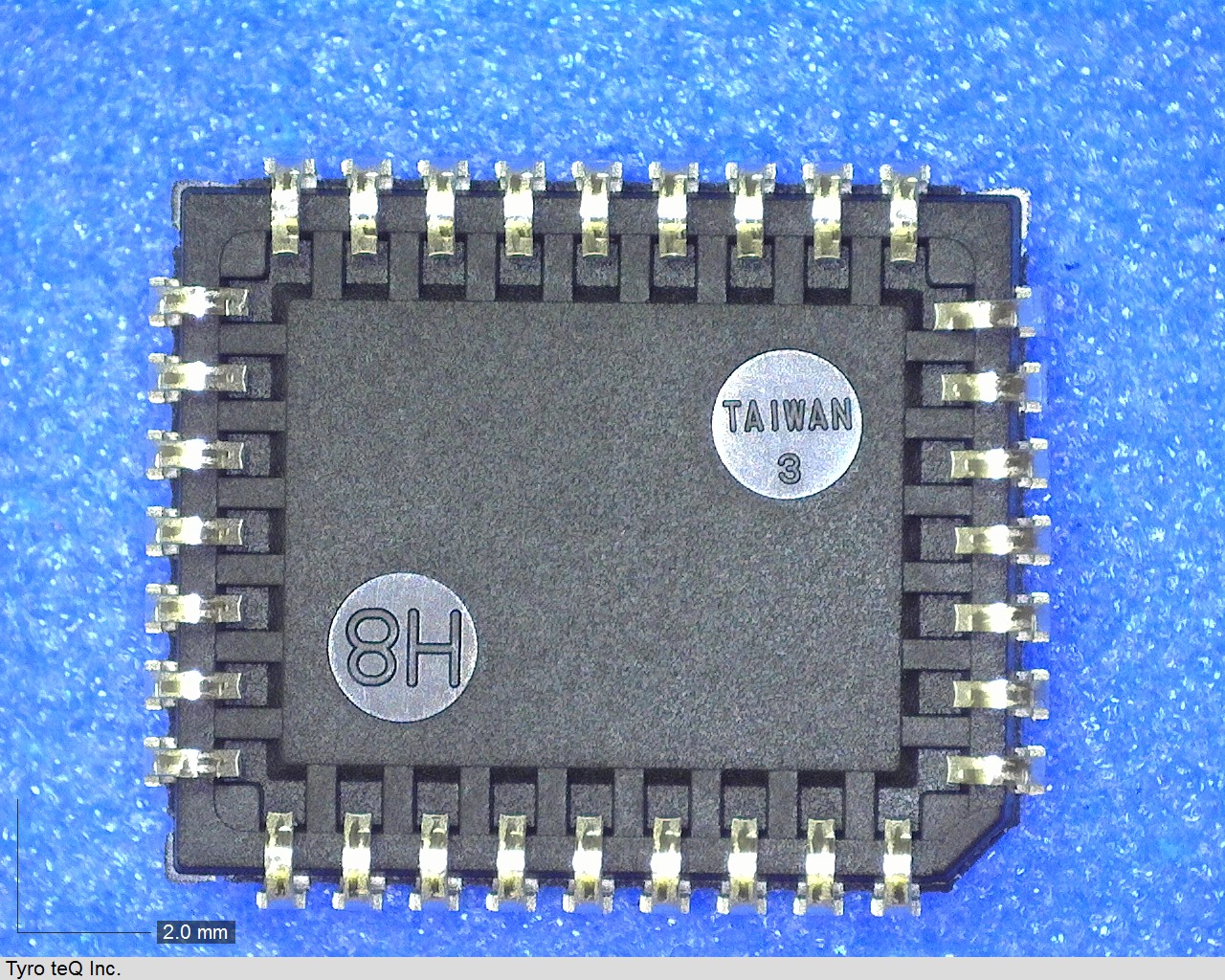

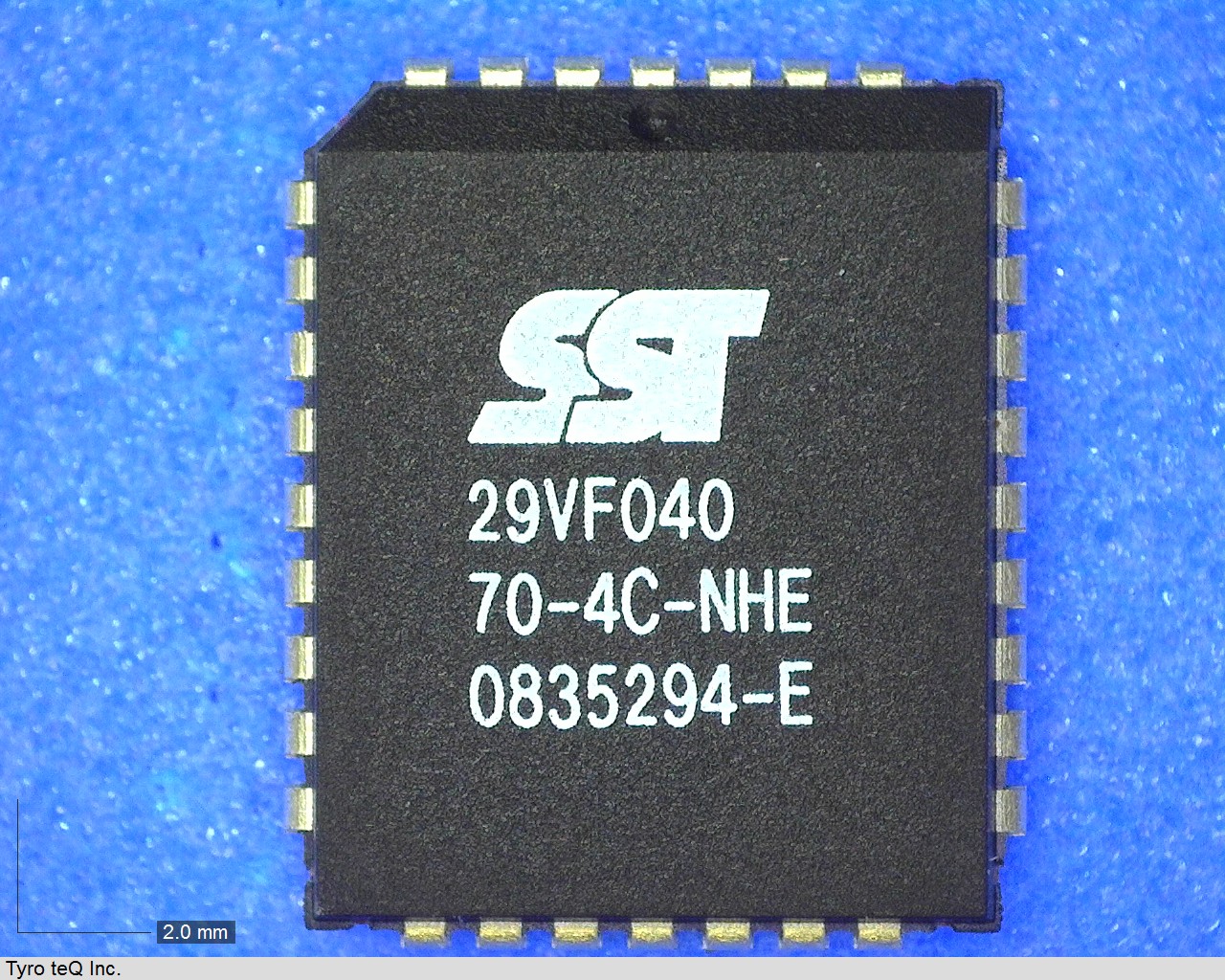

SST29VF040-70-4C-NHE

Name: SST29VF040-70-4C-NHE
Brand: MICROCHIP
SKU: 290458736-0000-0000-0000

SST29VF040-70-4C-NHE - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

SST29VF040-70-4C-NHE の詳細情報

型番	SST29VF040-70-4C-NHE
メーカー	MICROCHIP
Access Time-Max	70 ns
Access Time-Max (ns)	70
DLA Qualification	Not Qualified
Data Polling	YES
J-STD-609 Code	e3
JESD-30 Code	R-PQCC-J32
JESD-609 Code	e3
Length	13.97 mm
Length (mm)	13.97
Memory Density	4194304 bit
Memory Density (bits)	4194304
Memory IC Type	FLASH
Memory Organization	512KX8
Memory Width	8
Number of Functions	1
Number of Sectors/Size	4K
Number of Terminals	32
Number of Words	524288 words
Number of Words (words)	524288
Number of Words Code	512K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Organization	512KX8
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC32,.5X.6
Package Shape	RECTANGULAR
Package Style	CHIP CARRIER Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	260
Power Supplies (V)	3/3.3
Programming Voltage	2.7 V
Programming Voltage (V)	2.7
Qualification Status	Not Qualified
Sector Size (words)	128
Standby Current-Max (A)	1.5E-5
Sub Category	Flash Memories
Supply Current-Max (mA)	30
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	J BEND
Terminal Pitch (mm)	1.27
Terminal Position	QUAD
Toggle Bit	YES
Type	NOR TYPE
