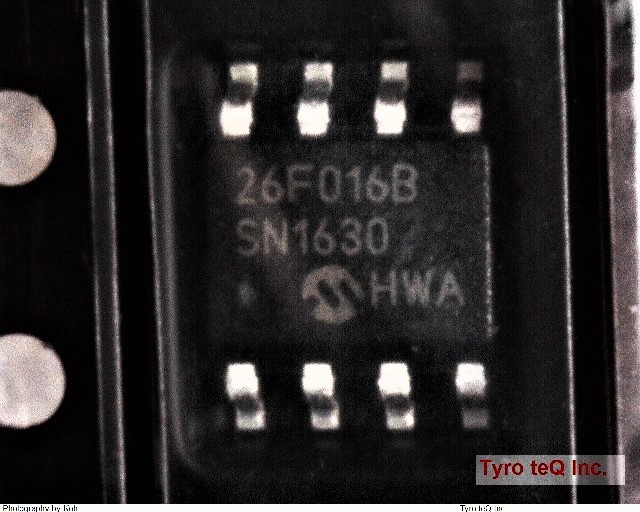

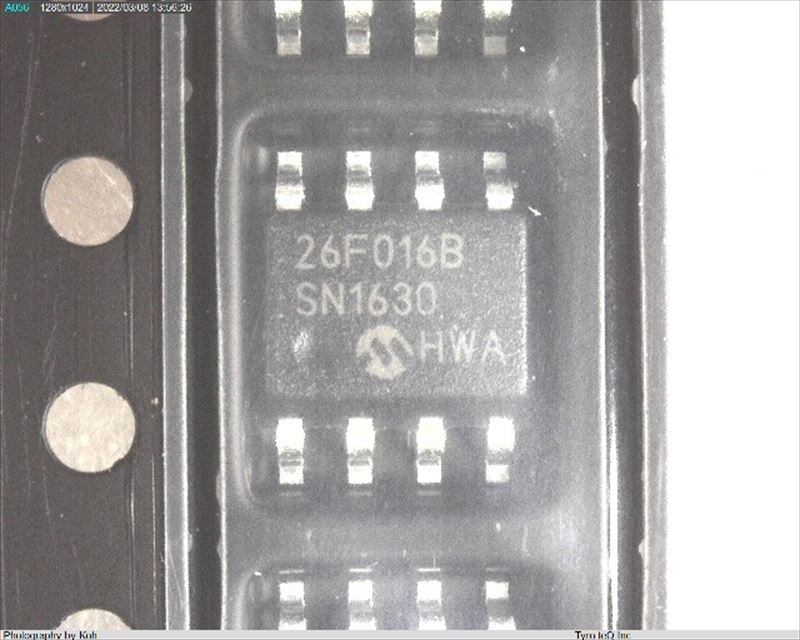

SST26VF016BT-104I/SN
1
-
- 個
２営業日以内に回答いたします
SST26VF016BT-104I/SN の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | SST26VF016BT-104I/SN |
|---|---|
| メーカー | MICROCHIP |
| Additional Feature | ALSO OPERATES AT 2.5V NOM SUPPLY |
| Clock Frequency-Max (MHz) | 104 |
| Data Retention Time-Min | 100 |
| Endurance (Write/Erase Cycles) | 100000 |
| J-STD-609 Code | e3 |
| JESD-30 Code | R-PDSO-G8 |
| Length (mm) | 4.9 |
| Memory Density (bits) | 16777216 |
| Memory IC Type | FLASH |
| Memory Organization | 2MX8 |
| Memory Width | 1 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Ports | 1 |
| Number of Terminals | 8 |
| Number of Words (words) | 2097152 |
| Number of Words Code | 2M |
| Operating Mode | SYNCHRONOUS |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Output Characteristics | 3-STATE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP8,.23 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE Meter |
| Parallel/Serial | SERIAL |
| Peak Reflow Temperature (Cel) | 260 |
| Programming Voltage (V) | 3 |
| Screening Level / Reference Standard | AEC-Q100 |
| Seated Height-Max (mm) | 1.75 |
| Serial Bus Type | SPI |
| Standby Current-Max (A) | 2.5E-5 |
| Supply Current-Max (mA) | 25 |
| Supply Voltage-Max (V) | 3.6 |
| Supply Voltage-Min (V) | 2.7 |
| Supply Voltage-Nom (V) | 3 |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | GULL WING |
| Terminal Pitch (mm) | 1.27 |
| Terminal Position | DUAL |
| Type | NOR TYPE |
| Width (mm) | 3.9 |
| Write Protection | HARDWARE/SOFTWARE |
| 会社名称 | Microchip Technology Inc. |
|---|---|
| 所在地 | 2355 West Chandler Blvd. Chandler, Arizona, USA 85224-6199 |
| URL | http://www.microchip.com/ |
