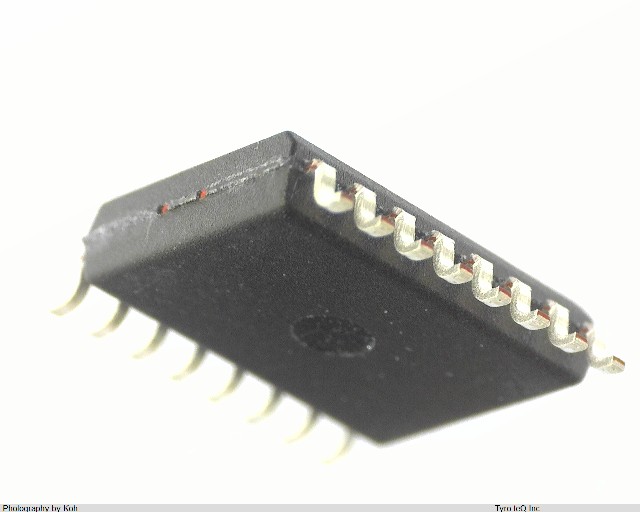

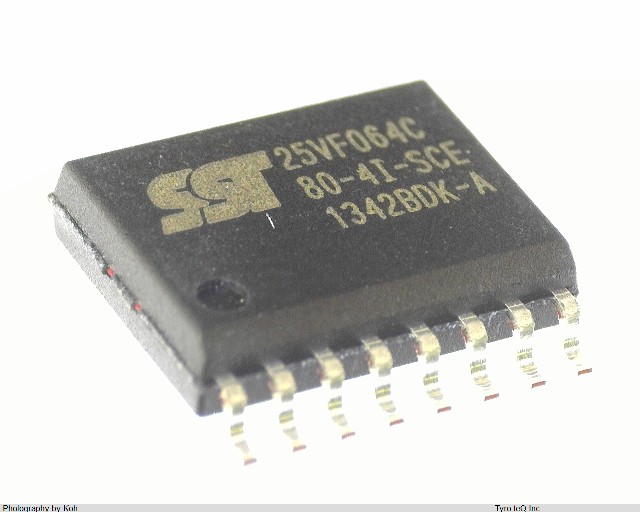

SST25VF064C-80-4I-SCE
1
-
- 個
２営業日以内に回答いたします
SST25VF064C-80-4I-SCE の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | SST25VF064C-80-4I-SCE |
|---|---|
| メーカー | MICROCHIP |
| Clock Frequency-Max (MHz) | 80 |
| DLA Qualification | Not Qualified |
| Endurance (Write/Erase Cycles) | 100000 |
| J-STD-609 Code | e3 |
| JESD-30 Code | R-PDSO-G16 |
| Length (mm) | 10.29 |
| Memory Density (bits) | 64094208 |
| Memory IC Type | FLASH |
| Memory Organization | 8MX8 |
| Memory Width | 1 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Number of Words (words) | 8388608 |
| Number of Words Code | 8M |
| Operating Mode | SYNCHRONOUS |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP16,.4 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE Meter |
| Parallel/Serial | SERIAL |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies (V) | 3/3.3 |
| Programming Voltage (V) | 2.7 |
| Seated Height-Max (mm) | 2.65 |
| Serial Bus Type | SPI |
| Standby Current-Max (A) | 2.0E-5 |
| Sub Category | Flash Memories |
| Supply Current-Max (mA) | 25 |
| Supply Voltage-Max (V) | 3.6 |
| Supply Voltage-Min (V) | 2.7 |
| Supply Voltage-Nom (V) | 3 |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | GULL WING |
| Terminal Pitch (mm) | 1.27 |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Type | NOR TYPE |
| Width (mm) | 7.5 |
| Write Protection | HARDWARE/SOFTWARE |
| 会社名称 | Microchip Technology Inc. |
|---|---|
| 所在地 | 2355 West Chandler Blvd. Chandler, Arizona, USA 85224-6199 |
| URL | http://www.microchip.com/ |
