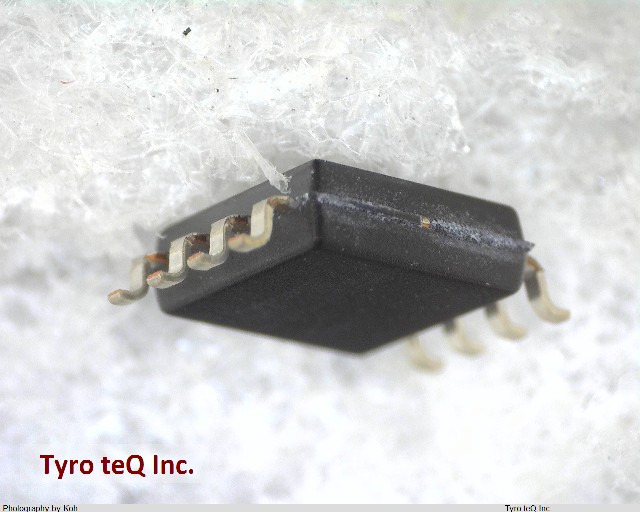

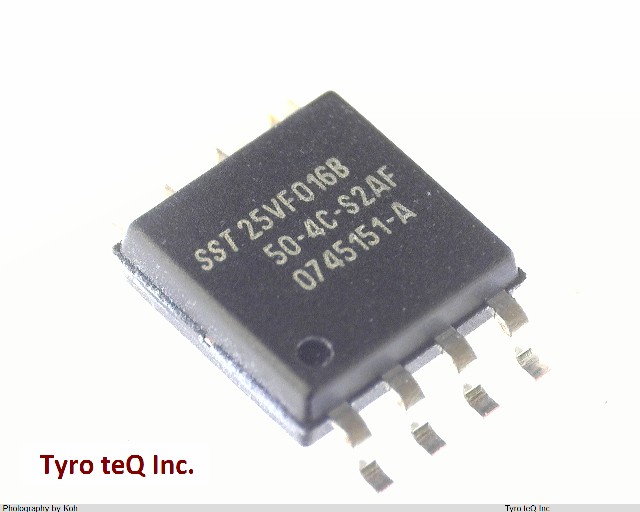

SST25VF016B-50-4C-S2AF

Name: SST25VF016B-50-4C-S2AF
Brand: MICROCHIP
SKU: 290454508-0000-0000-0000

SST25VF016B-50-4C-S2AF - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

SST25VF016B-50-4C-S2AF の詳細情報

型番	SST25VF016B-50-4C-S2AF
メーカー	MICROCHIP
Clock Frequency-Max (MHz)	50
DLA Qualification	Not Qualified
Data Retention Time-Min	100
Endurance (Write/Erase Cycles)	100000
J-STD-609 Code	e4
JESD-30 Code	R-PDSO-G8
Length (mm)	5.275
Memory Density (bits)	16
Memory IC Type	FLASH
Memory Organization	16MX1
Memory Width	1
Moisture Sensitivity Level	1
Number of Functions	1
Number of Ports	1
Number of Terminals	8
Number of Words (words)	16
Number of Words Code	16
Operating Mode	SYNCHRONOUS
Operating Temperature-Max (Cel)	70
Operating Temperature-Min (Cel)	-40
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Parallel/Serial	SERIAL
Peak Reflow Temperature (Cel)	260
Power Supplies (V)	3/3.3
Programming Voltage (V)	2.7
Screening Level / Reference Standard	TS 16949
Seated Height-Max (mm)	2.16
Serial Bus Type	SPI
Standby Current-Max (A)	2.0E-5
Sub Category	Flash Memories
Supply Current-Max (mA)	20
Supply Voltage-Max (V)	3.6
Supply Voltage-Min (V)	2.7
Supply Voltage-Nom (V)	3
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Type	NOR TYPE
Width (mm)	5.275
Write Protection	HARDWARE/SOFTWARE
