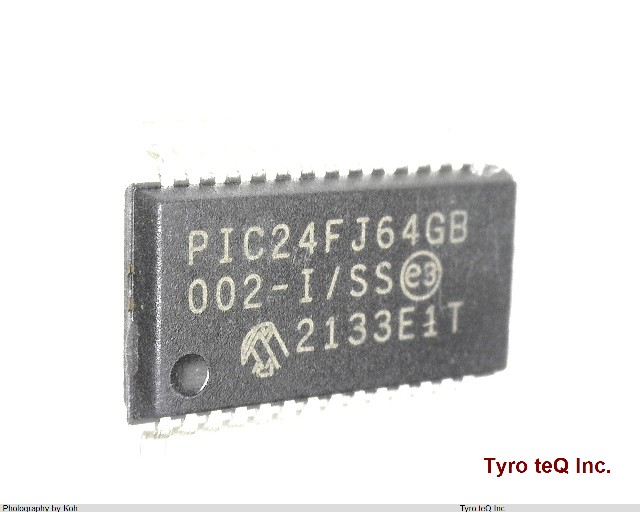

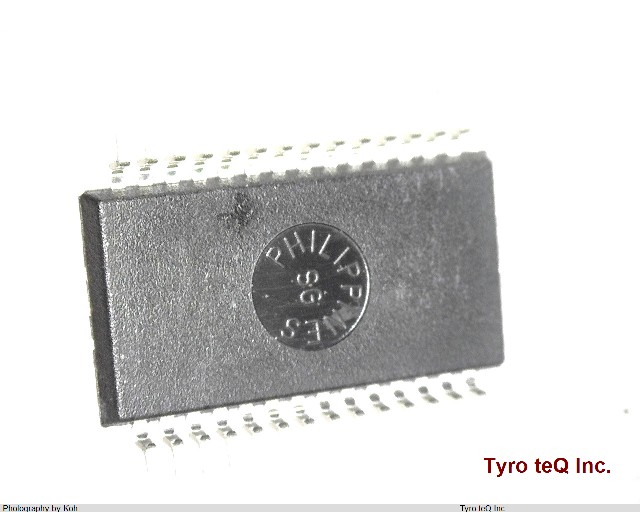

PIC24FJ64GB002-I/SS

Name: PIC24FJ64GB002-I/SS
Brand: MICROCHIP
SKU: 260231445-0000-0000-0000

PIC24FJ64GB002-I/SS - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC24FJ64GB002-I/SS の詳細情報

型番	PIC24FJ64GB002-I/SS
メーカー	MICROCHIP
A/D Converters	9-Ch 10-Bit
ADC Channels	YES
Additional Feature	IT ALSO OPERATES 2V AT 16 MHZ
Address Bus Width	0
Bit Size	16
Boundary Scan	YES
CPU Family	PIC24
Clock Frequency-Max (MHz)	32
Connectivity	I2C(2), SPI(2), UART(2), USB
DAC Channels	NO
DLA Qualification	Not Qualified
DMA Channels	NO
Data EEPROM Size (bytes)	0
Data RAM Size (bytes)	8192
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G28
Length (mm)	10.2
Low Power Mode	YES
Moisture Sensitivity Level	1
Number of External Interrupts	3
Number of I/O Lines	19
Number of Serial I/Os	2
Number of Terminals	28
Number of Timers	7
On Chip Data RAM Width	8
Operating Temperature-Max (Cel)	85
Operating Temperature-Min (Cel)	-40
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP28,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Peripherals	BOR, COMPARATOR(3), CRC, CTMU, POR, PWM(5), RTCC, TIMER(7), WDT
Power Supplies	2.5,2.5/3.3 V
Program Memory Size (words)	65536
Program Memory Type	FLASH
Program Memory Width (bits)	8
Screening Level / Reference Standard	TS 16949
Seated Height-Max (mm)	2
Speed (MHz)	32
Sub Category	Microcontrollers
Supply Current-Max (mA)	15.5
Supply Voltage-Max (V)	3.6
Supply Voltage-Min (V)	2
Supply Voltage-Nom (V)	3.3
