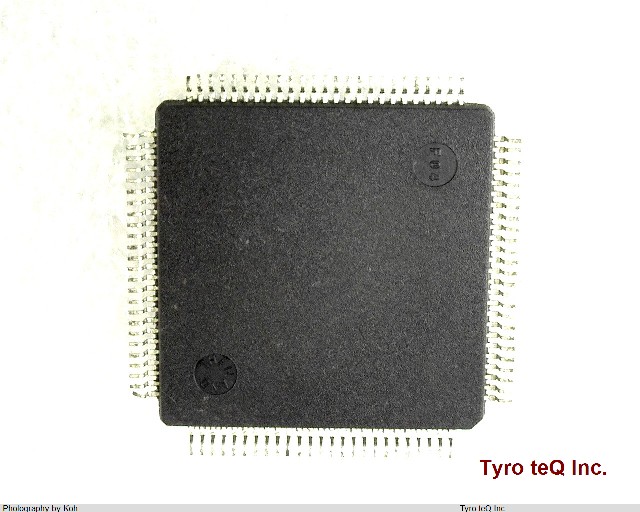

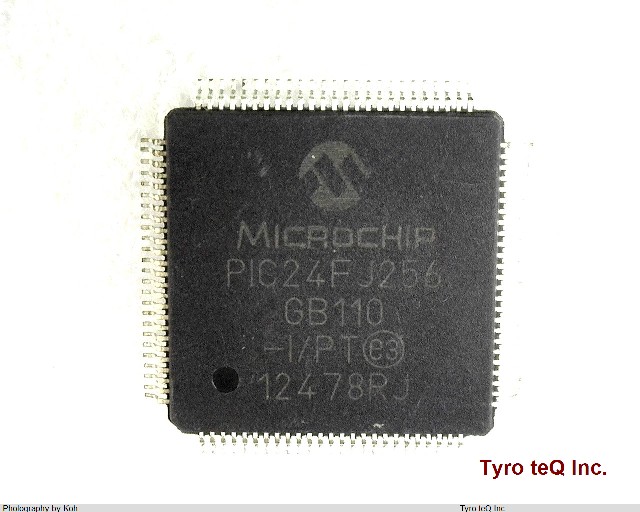

PIC24FJ256GB110-I/PT

Name: PIC24FJ256GB110-I/PT
Brand: MICROCHIP
SKU: 260234252-0000-0000-0000

PIC24FJ256GB110-I/PT - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC24FJ256GB110-I/PT の詳細情報

型番	PIC24FJ256GB110-I/PT
メーカー	MICROCHIP
A/D Converters	16-Ch 10-Bit
ADC Channels	YES
Additional Feature	OPERATES AT 16MHZ AT 2VMIN SUPPLY
Address Bus Width	0
Bit Size	16
Boundary Scan	YES
CPU Family	PIC24
Clock Frequency-Max	32 MHz
Connectivity	I2C(3), SPI(3), UART(4), USB
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	S-PQFP-G100
JESD-609 Code	e3
Length	12 mm
Low Power Mode	YES
Moisture Sensitivity Level	1
Number of External Interrupts	5
Number of I/O Lines	84
Number of Serial I/Os	4
Number of Terminals	100
Number of Timers	7
On Chip Data RAM Width	8
On Chip Program ROM Width	24
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	TFQFP
Package Equivalence Code	TQFP100,.55SQ,16
Package Shape	SQUARE
Package Style	FLATPACK, THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Peripherals	BOR, COMPARATOR(3), POR, RTC, TIMER(7), WDT
Power Supplies	2.5/3.3 V
Qualification Status	Not Qualified
RAM (bytes)	16384
ROM (words)	87552
ROM Programmability	FLASH
Screening Level	TS 16949
Seated Height-Max	1.2 mm
Speed	32 rpm
Sub Category	Microcontrollers
Supply Current-Max	24 mA
Supply Voltage-Max	2.75 V
Supply Voltage-Min	2.25 V
Supply Voltage-Nom	2.5 V
Surface Mount	YES
