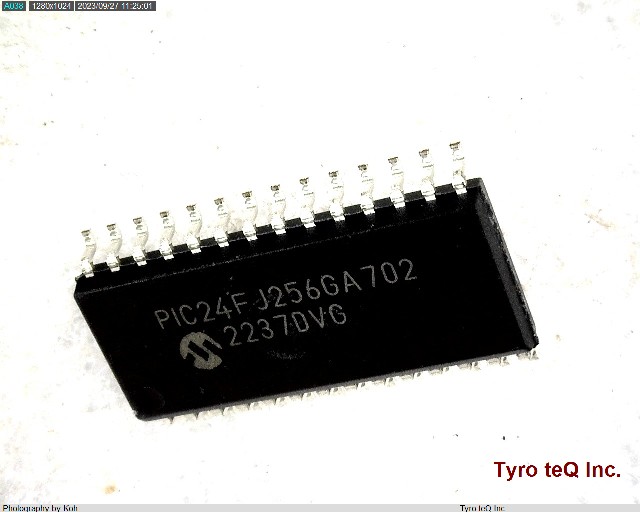

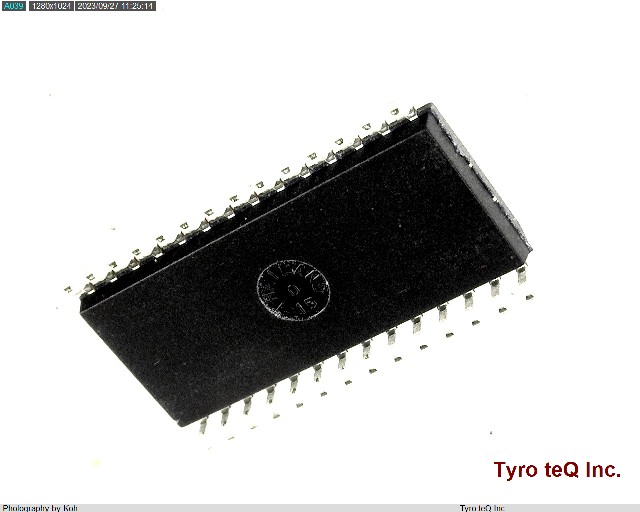

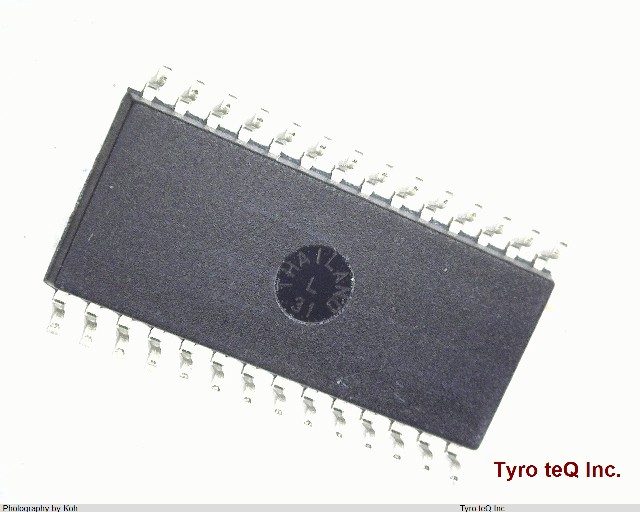

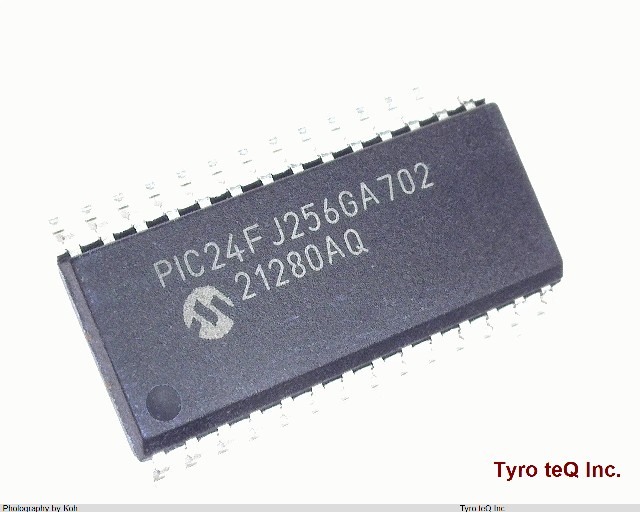

PIC24FJ256GA702-I/SO

Name: PIC24FJ256GA702-I/SO
Brand: MICROCHIP
SKU: 400067628-0000-0000-0000

PIC24FJ256GA702-I/SO - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC24FJ256GA702-I/SO の詳細情報

型番	PIC24FJ256GA702-I/SO
メーカー	MICROCHIP
A/D Converters	10-Ch 12-Bit
ADC Channels	YES
Address Bus Width	24
Bit Size	16
Boundary Scan	YES
CPU Family	PIC24
Clock Frequency-Max (MHz)	32
Connectivity	I2C(2), SPI(3), USART(2)
DAC Channels	NO
DMA Channels	YES
Data EEPROM Size (bytes)	0
Data RAM Size (bytes)	16384
External Data Bus Width	24
Format	FIXED POINT
Integrated Cache	NO
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G28
Length (mm)	17.9
Low Power Mode	YES
Number of DMA Channels	6
Number of External Interrupts	5
Number of I/O Lines	22
Number of Serial I/Os	2
Number of Terminals	28
Number of Timers	3
On Chip Data RAM Width	16
Operating Temperature-Max (Cel)	85
Operating Temperature-Min (Cel)	-40
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP28,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peripherals	ANALOG COMPARATOR(3), BOD, CLC, CTMU, POR, PWM(3), TIMER(3), WDT
Program Memory Size (words)	262144
Program Memory Type	FLASH
Program Memory Width (bits)	8
RAM (words)	8192
Screening Level / Reference Standard	AEC-Q100
Seated Height-Max (mm)	2.65
Speed (MHz)	32
Supply Current-Max (mA)	5
Supply Voltage-Max (V)	3.6
Supply Voltage-Min (V)	2
Supply Voltage-Nom (V)	3
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
