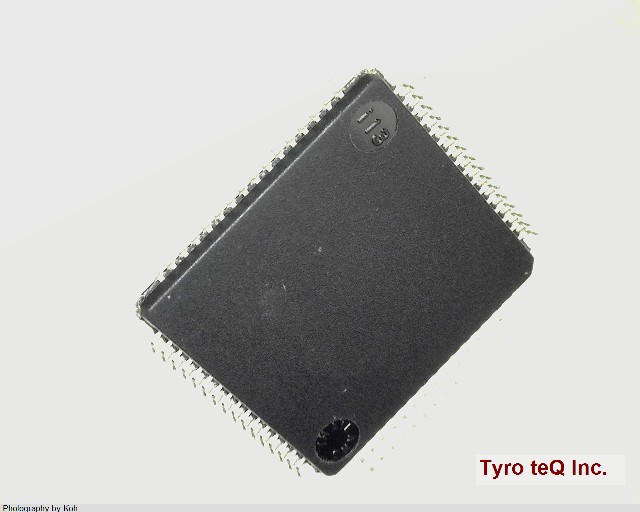

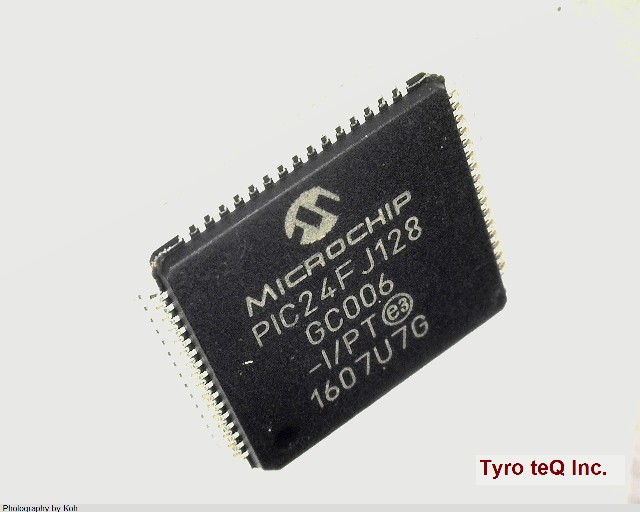

PIC24FJ128GC006-I/PT

Name: PIC24FJ128GC006-I/PT
Brand: MICROCHIP
SKU: 400041762-0000-0000-0000

PIC24FJ128GC006-I/PT - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC24FJ128GC006-I/PT の詳細情報

型番	PIC24FJ128GC006-I/PT
メーカー	MICROCHIP
A/D Converters	30-Ch 12-Bit
ADC Channels	YES
Address Bus Width	0
Bit Size	16
Boundary Scan	YES
CPU Family	PIC24
Clock Frequency-Max (MHz)	48
Connectivity	I2C(2), SPI(2), UART(4), USB
D/A Converters	1-Ch 10-Bit(2)
DAC Channels	YES
DLA Qualification	Not Qualified
DMA Channels	YES
Data EEPROM Size (bytes)	0
Data RAM Size (bytes)	8192
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
J-STD-609 Code	e3
JESD-30 Code	S-PQFP-G64
Length (mm)	10
Low Power Mode	YES
Number of DMA Channels	6
Number of External Interrupts	5
Number of I/O Lines	53
Number of Terminals	64
Number of Timers	7
On Chip Data RAM Width	8
Operating Temperature-Max (Cel)	85
Operating Temperature-Min (Cel)	-40
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	TQFP
Package Equivalence Code	TQFP64,.47SQ
Package Shape	SQUARE
Package Style	FLATPACK, THIN PROFILE Meter
Peripherals	BOR, COMPARATOR(3), CTMU, DMA(6), POR, PWM(9), RTCC, TIMER(7), WDT
Power Supplies	2.5/3.3 V
Program Memory Size (words)	32768
Program Memory Type	FLASH
Program Memory Width (bits)	8
Screening Level / Reference Standard	TS 16949
Seated Height-Max (mm)	1.2
Speed (MHz)	32
Sub Category	Microcontrollers
Supply Current-Max (mA)	7.6
Supply Voltage-Max (V)	3.6
Supply Voltage-Min (V)	2
Supply Voltage-Nom (V)	3.3
Surface Mount	YES
Technology	CMOS
