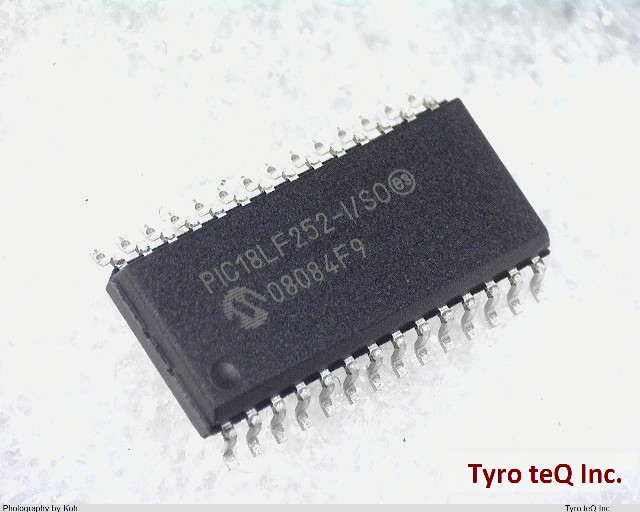

PIC18LF252-I/SO データシート

Name: PIC18LF252-I/SO
Brand: MICROCHIP
SKU: 260005855-0000-0000-0000

PIC18LF252-I/SO - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC18LF252-I/SO の詳細情報

型番	PIC18LF252-I/SO
メーカー	MICROCHIP
データシート
A/D Converters	5-Ch 10-Bit
ADC Channels	YES
Additional Feature	ALSO OPERATES AT 2V MINIMUM SUPPLY AT 4 MHZ
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	PIC18
Clock Frequency-Max	40 MHz
Clock Frequency-Max (MHz)	40
Connectivity	I2C, SPI, USART
DAC Channels	NO
DLA Qualification	Not Qualified
DMA Channels	NO
Data EEPROM Size	256
Data EEPROM Size (bytes)	256
Data RAM Size (bytes)	1536
External Data Bus Width	0
Format	FIXED POINT
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G28
Length (mm)	17.87
Moisture Sensitivity Level	1
Number of I/O Lines	23
Number of Terminals	28
Operating Temperature-Max (Cel)	85
Operating Temperature-Min (Cel)	-40
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peripherals	BOD, POR, PWM(2), TIMER(4), WDT
Program Memory Size (words)	16384
Program Memory Type	FLASH
Program Memory Width (bits)	16
Screening Level / Reference Standard	AEC-Q100
Seated Height-Max (mm)	2.64
Speed (MHz)	40
Supply Voltage-Max (V)	5.5
Supply Voltage-Min (V)	4.2
Supply Voltage-Nom (V)	4.5
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Width (mm)	7.49
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
