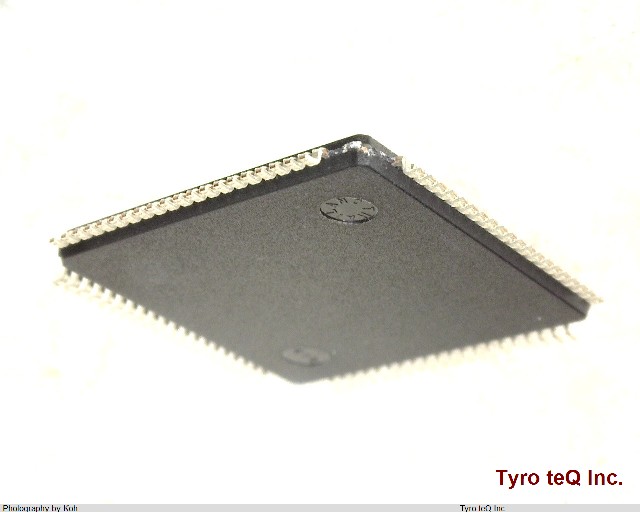

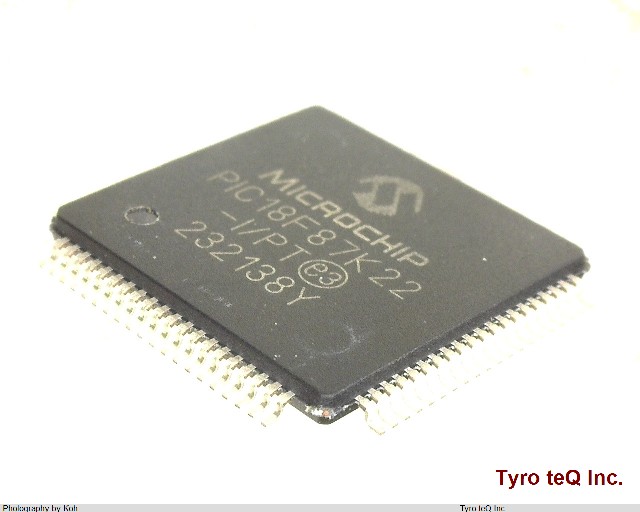

PIC18F87K22-I/PT

Name: PIC18F87K22-I/PT
Brand: MICROCHIP
SKU: 260234217-0000-0000-0000

PIC18F87K22-I/PT - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC18F87K22-I/PT の詳細情報

型番	PIC18F87K22-I/PT
メーカー	MICROCHIP
A/D Converters	24-Ch 12-Bit
ADC Channels	YES
Additional Feature	ALSO OPERATES WITH 1.8 V MINIMUM SUPPLY AT 4 MHZ
Address Bus Width	16
Bit Size	8
Boundary Scan	NO
CPU Family	PIC18
Clock Frequency-Max (MHz)	64
Connectivity	I2C(2), LIN, PSP, SPI(2), USART(2)
DAC Channels	NO
DLA Qualification	Not Qualified
DMA Channels	NO
Data EEPROM Size (bytes)	1024
Data RAM Size (bytes)	4096
External Data Bus Width	16
Format	FIXED POINT
Integrated Cache	NO
J-STD-609 Code	e3
JESD-30 Code	S-PQFP-G80
Length (mm)	12
Low Power Mode	YES
Moisture Sensitivity Level	3
Number of DMA Channels	22
Number of External Interrupts	3
Number of I/O Lines	69
Number of Serial I/Os	2
Number of Terminals	80
Number of Timers	11
On Chip Data RAM Width	8
Operating Temperature-Max (Cel)	85
Operating Temperature-Min (Cel)	-40
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	TQFP
Package Equivalence Code	TQFP80,.55SQ
Package Shape	SQUARE
Package Style	FLATPACK, THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Peripherals	BOD, COMPARATOR(3), CTMU, POR, PWM(10), RTC, TIMER(12), WDT
Power Supplies	2/5 V
Program Memory Size (words)	65536
Program Memory Type	FLASH
Program Memory Width (bits)	16
Screening Level / Reference Standard	TS 16949
Seated Height-Max (mm)	1.2
Speed (MHz)	64
Sub Category	Microcontrollers
Supply Current-Max (mA)	20
Supply Voltage-Max (V)	5.5
Supply Voltage-Min (V)	1.8
