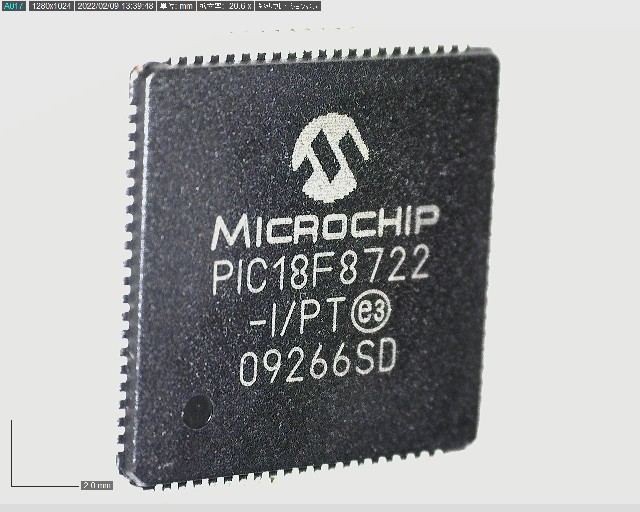

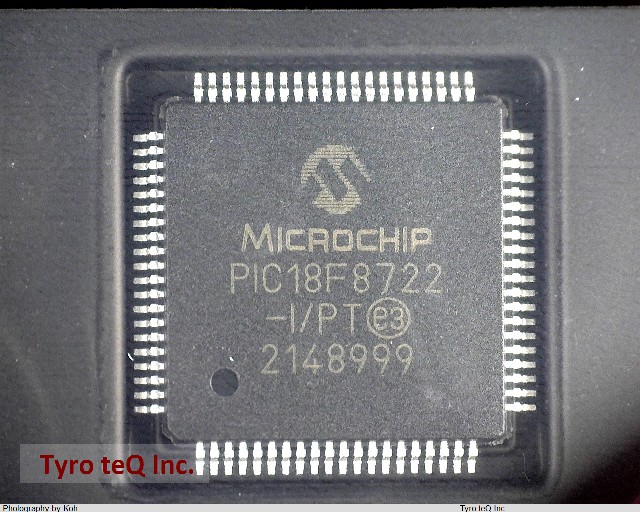

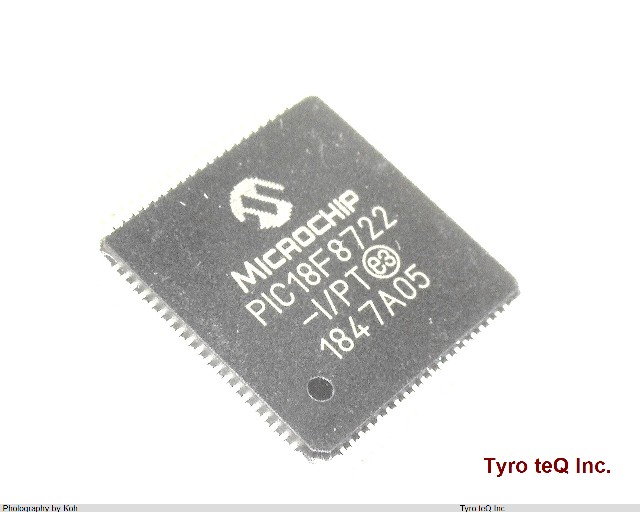

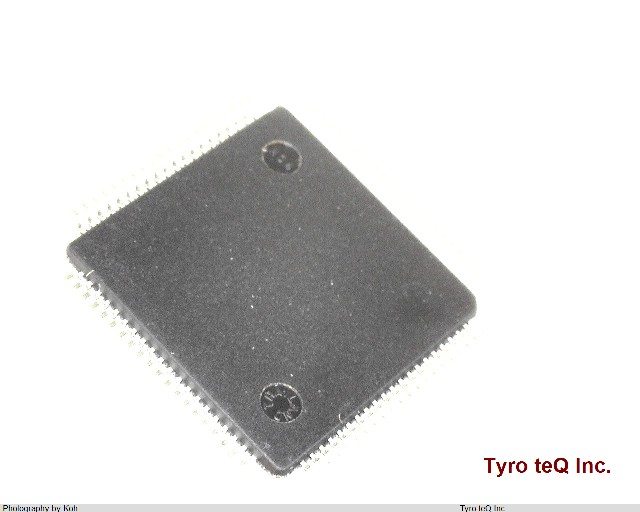

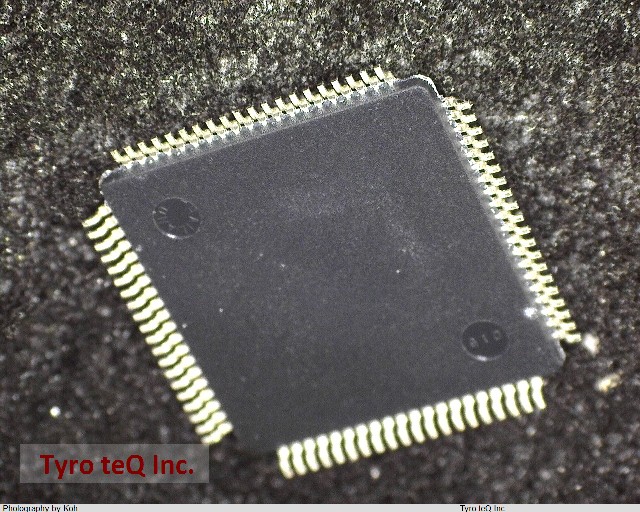

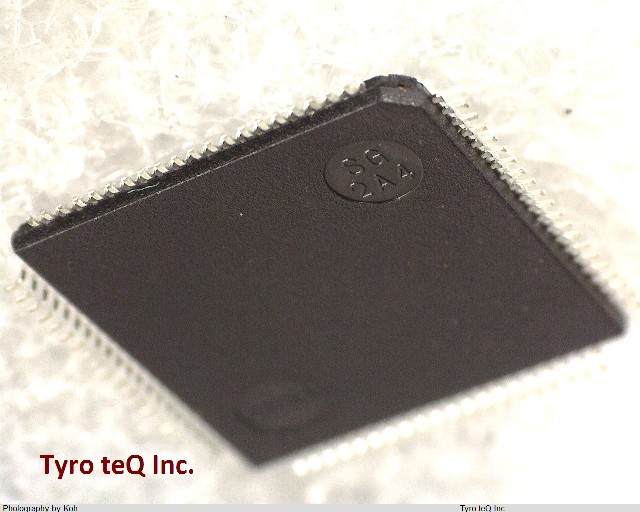

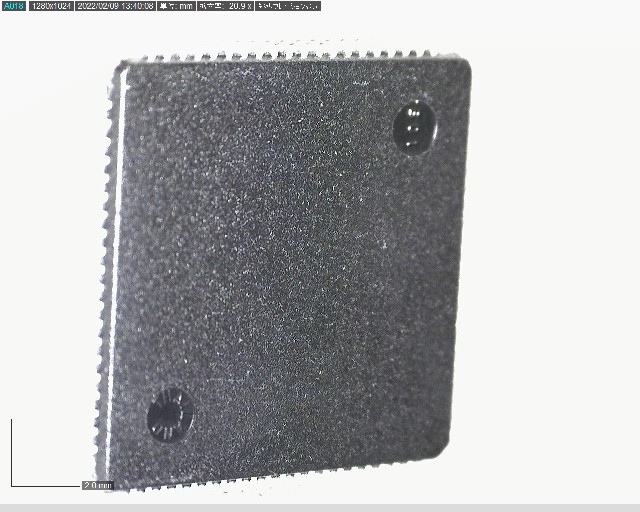

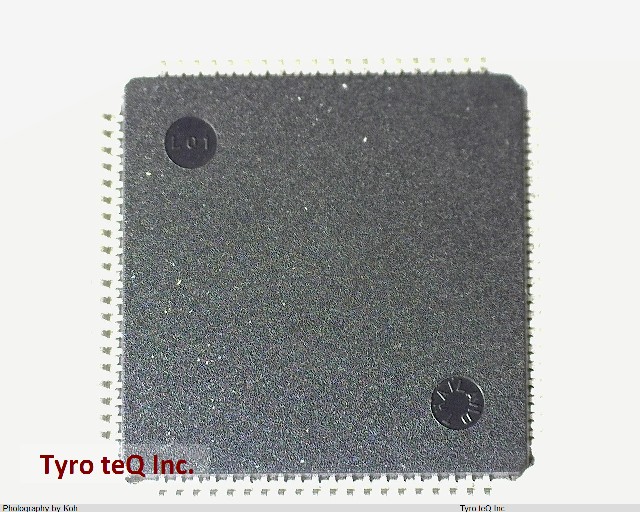

PIC18F8722-I/PT データシート

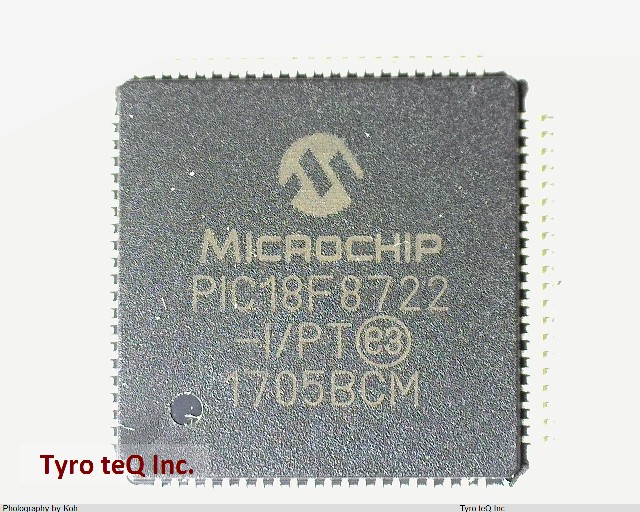

Name: PIC18F8722-I/PT
Brand: MICROCHIP
SKU: 260005853-0000-0000-0000

PIC18F8722-I/PT - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC18F8722-I/PT の詳細情報

型番	PIC18F8722-I/PT
メーカー	MICROCHIP
データシート
A/D Converters	16-Ch 10-Bit
ADC Channels	YES
Additional Feature	ALSO OPERATES AT MINIMUM 2V AT 4MHZ
Address Bus Width	20
Bit Size	8
Boundary Scan	NO
CPU Family	PIC18
Clock Frequency-Max	40 MHz
Connectivity	I2C, PSP, SPI, USART(2)
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	1024
External Data Bus Width	16
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	S-PQFP-G80
JESD-609 Code	e3
Length	12 mm
Low Power Mode	NO
Moisture Sensitivity Level	3
Number of External Interrupts	3
Number of I/O Lines	70
Number of Serial I/Os	2
Number of Terminals	80
Number of Timers	5
On Chip Data RAM Width	8
On Chip Program ROM Width	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	TQFP
Package Equivalence Code	TQFP80,.55SQ
Package Shape	SQUARE
Package Style	FLATPACK, THIN PROFILE Meter
Peripherals	BOD, COMPARATOR(2), POR, PWM(5), TIMER(5), WDT
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (bytes)	3936
ROM (words)	65536
ROM Programmability	FLASH
Seated Height-Max	1.2 mm
Speed	40 rpm
Sub Category	Microcontrollers
Supply Current-Max	1.4 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.2 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
