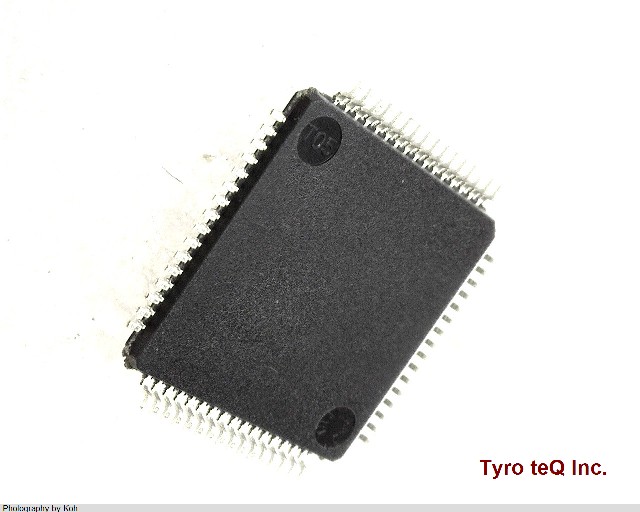

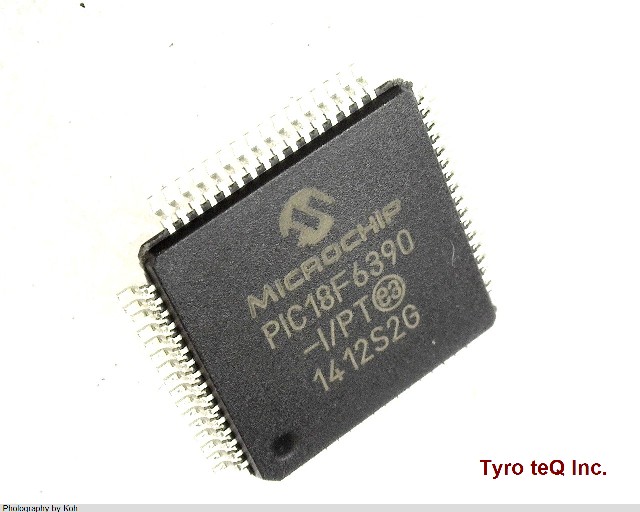

PIC18F6390-I/PT データシート

Name: PIC18F6390-I/PT
Brand: MICROCHIP
SKU: 260087147-0000-0000-0000

PIC18F6390-I/PT - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC18F6390-I/PT の詳細情報

型番	PIC18F6390-I/PT
メーカー	MICROCHIP
データシート
A/D Converters	12-Ch 10-Bit
ADC Channels	YES
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	PIC18
Clock Frequency-Max	20 MHz
Connectivity	I2C, SPI, USART(2)
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	0
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	S-PQFP-G64
JESD-609 Code	e3
Length	10 mm
Low Power Mode	YES
Moisture Sensitivity Level	3
Number of External Interrupts	4
Number of I/O Lines	50
Number of Serial I/Os	2
Number of Terminals	64
Number of Timers	4
On Chip Data RAM Width	8
On Chip Program ROM Width	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	TFQFP
Package Equivalence Code	TQFP64,.47SQ
Package Shape	SQUARE
Package Style	FLATPACK, THIN PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Peripherals	BOD, COMPARATOR(2), LCD, POR, PWM(2), RTC, TIMER(4), WDT
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (bytes)	768
ROM (words)	4096
ROM Programmability	FLASH
Screening Level	TS 16949
Seated Height-Max	1.2 mm
Speed	40 rpm
Sub Category	Microcontrollers
Supply Current-Max	40 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.2 V
Supply Voltage-Nom	5 V
Surface Mount	YES
