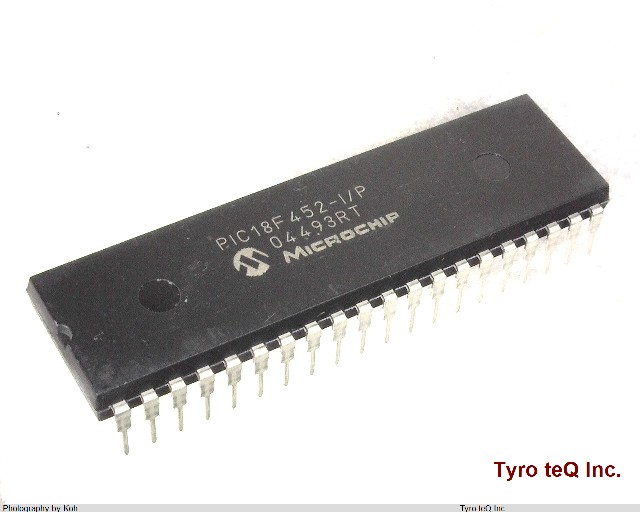

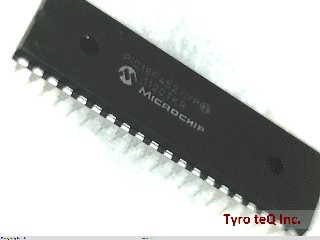

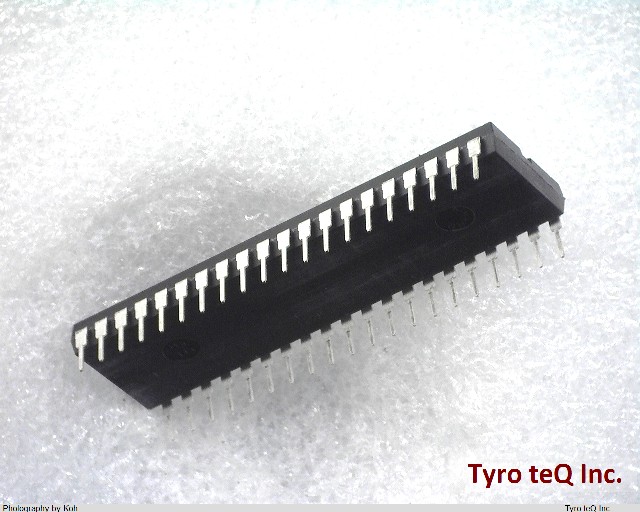

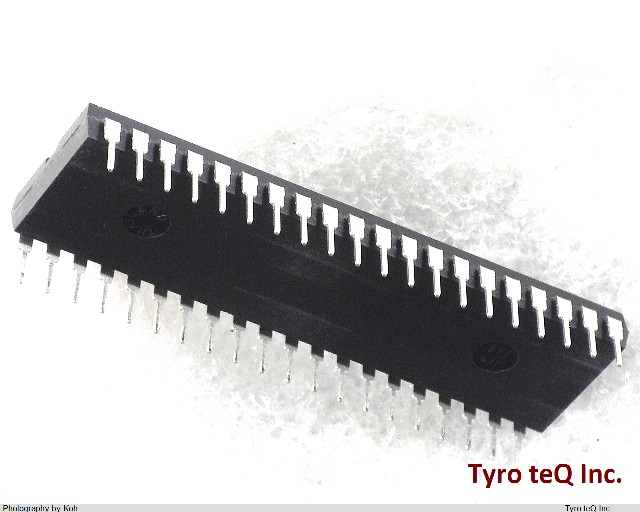

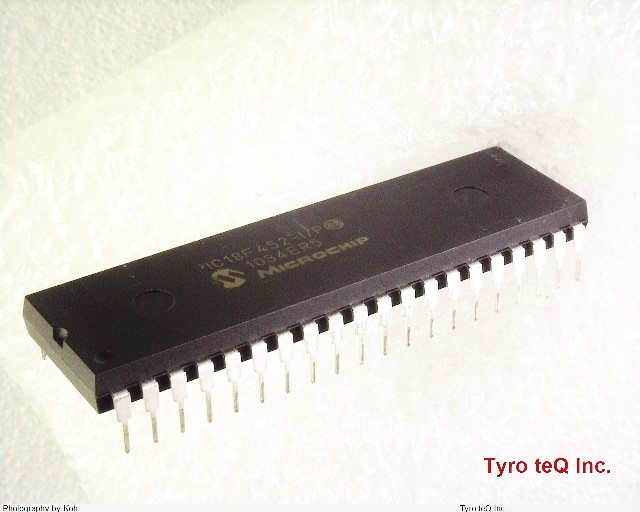

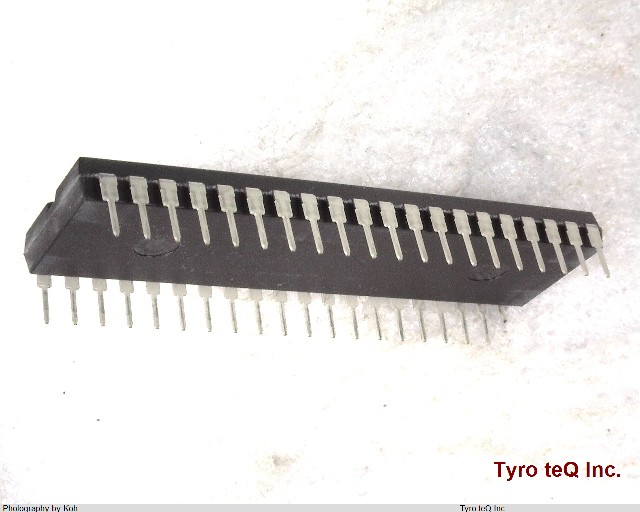

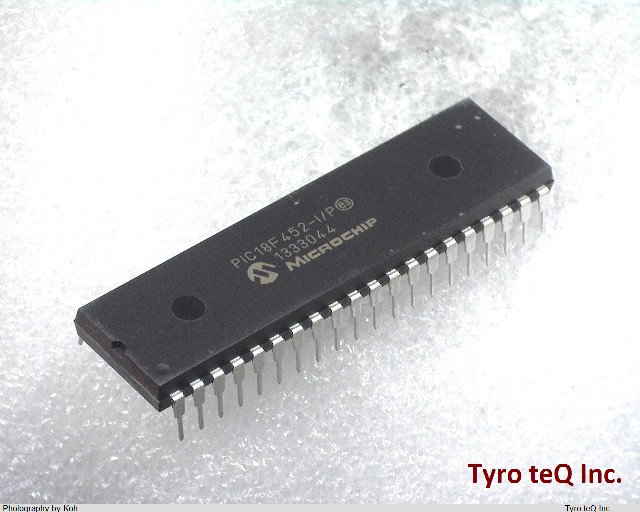

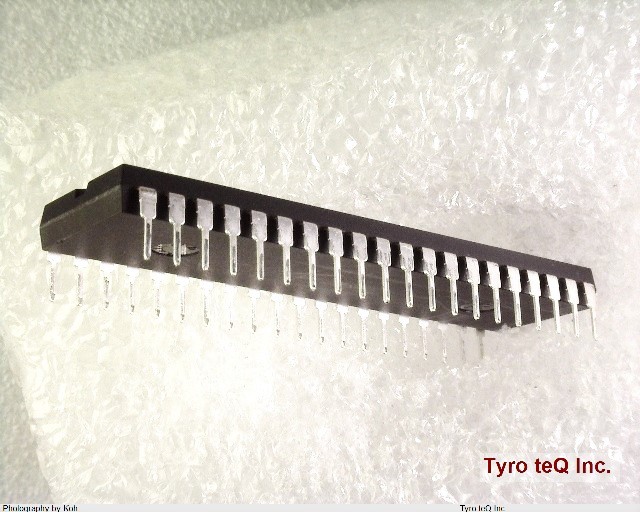

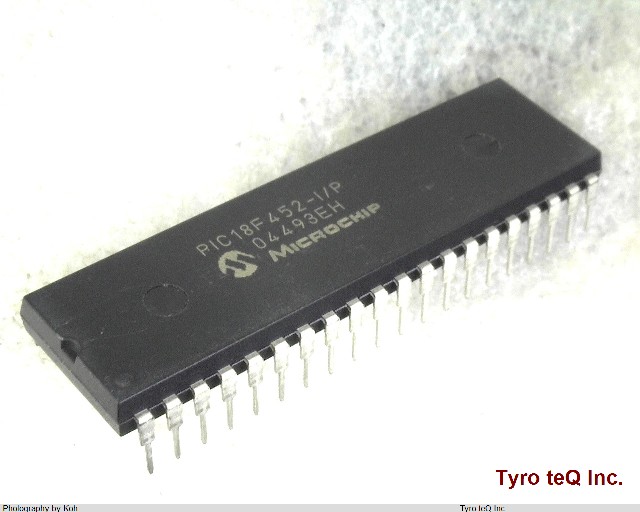

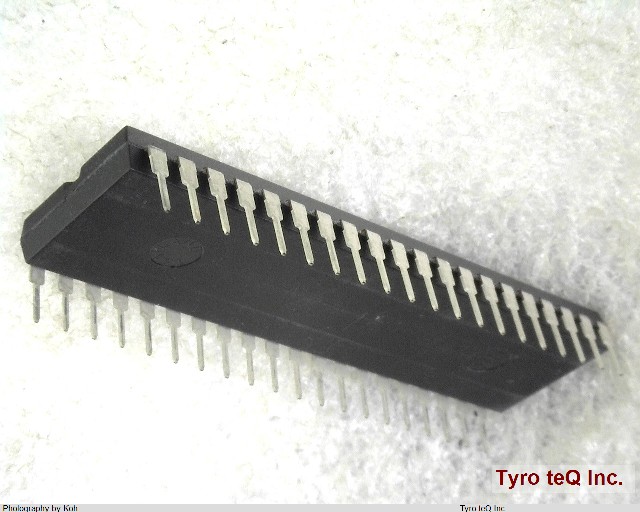

PIC18F452-I/P データシート

Name: PIC18F452-I/P
Brand: MICROCHIP
SKU: 260005837-0000-0000-0000

PIC18F452-I/P - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC18F452-I/P の詳細情報

型番	PIC18F452-I/P
メーカー	MICROCHIP
データシート
A/D Converters	8-Ch 10-Bit
ADC Channels	YES
Additional Feature	ALSO OPERATES AT MIN 2V SUPPLY
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	PIC18
Clock Frequency-Max	40 MHz
Connectivity	I2C, PSP, SPI, USART
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	256
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDIP-T40
JESD-609 Code	e3
Length	10 mm
Low Power Mode	NO
Moisture Sensitivity Level	3
Number of External Interrupts	3
Number of I/O Lines	34
Number of Serial I/Os	1
Number of Terminals	40
Number of Timers	4
On Chip Data RAM Width	8
On Chip Program ROM Width	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP40,.6
Package Shape	RECTANGULAR
Package Style	FLATPACK, THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Peripherals	BOD, POR, PWM(2), TIMER(4), WDT
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (bytes)	1536
ROM (words)	16384
ROM Programmability	FLASH
Screening Level	AEC-Q100
Seated Height-Max	1.2 mm
Speed	40 rpm
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.2 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
