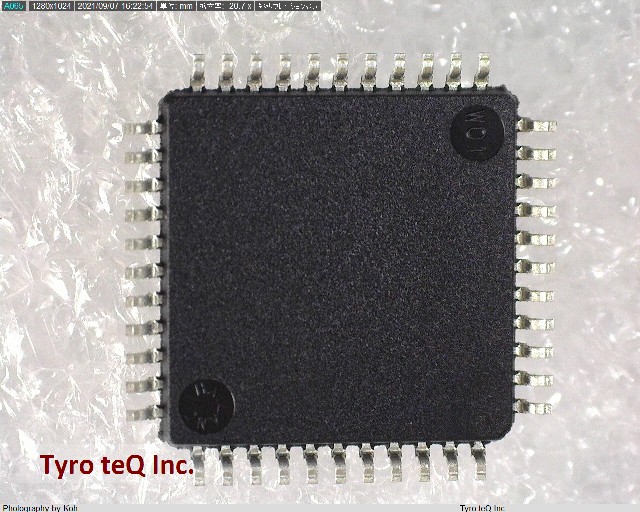

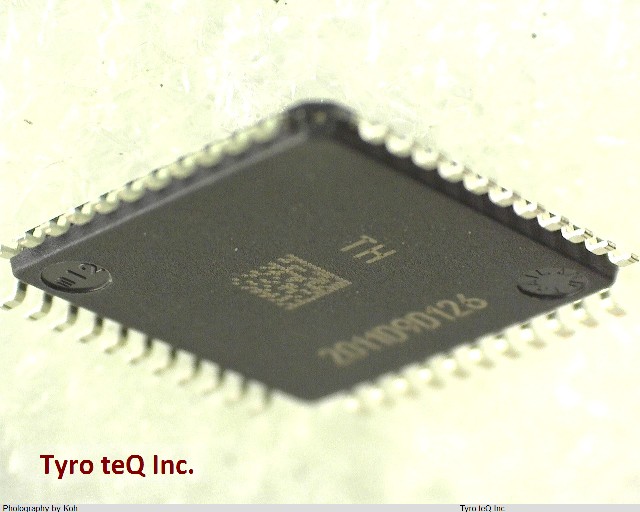

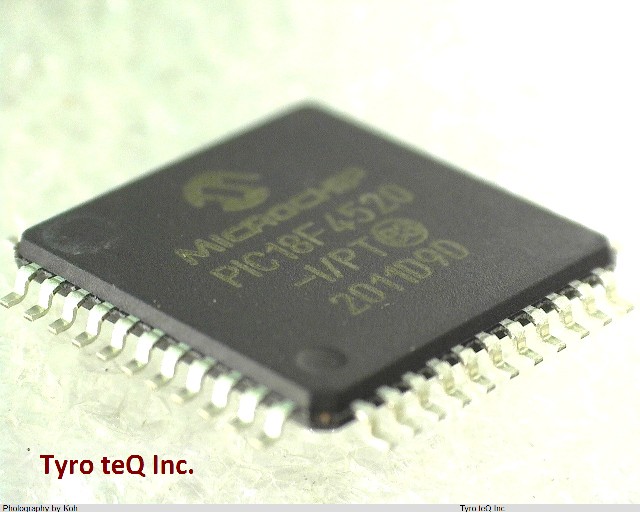

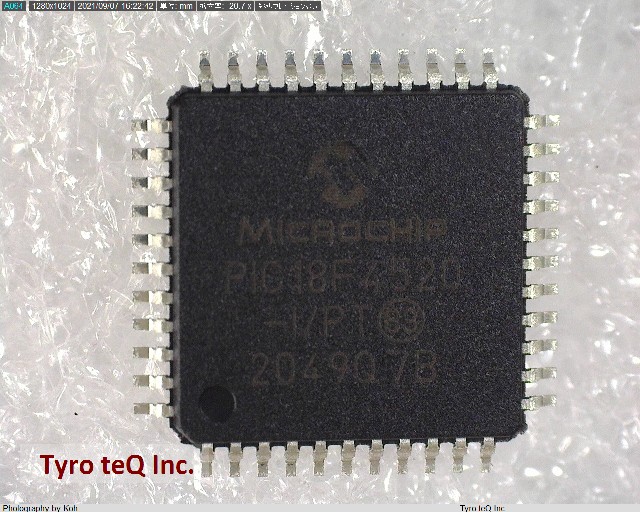

PIC18F4520-I/PT データシート

Name: PIC18F4520-I/PT
Brand: MICROCHIP
SKU: 260086785-0000-0000-0000

PIC18F4520-I/PT - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC18F4520-I/PT の詳細情報

型番	PIC18F4520-I/PT
メーカー	MICROCHIP
データシート
A/D Converters	13-Ch 10-Bit
ADC Channels	YES
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	PIC18
Clock Frequency-Max (MHz)	40
Connectivity	I2C, PSP, SPI, USART
DAC Channels	NO
DLA Qualification	Not Qualified
DMA Channels	NO
Data EEPROM Size (bytes)	256
Data RAM Size (bytes)	1536
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
J-STD-609 Code	e3
JESD-30 Code	S-PQFP-G44
Length (mm)	10
Low Power Mode	YES
Moisture Sensitivity Level	3
Number of External Interrupts	3
Number of I/O Lines	36
Number of Serial I/Os	1
Number of Terminals	44
Number of Timers	4
On Chip Data RAM Width	8
Operating Temperature-Max (Cel)	85
Operating Temperature-Min (Cel)	-40
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	TQFP
Package Equivalence Code	TQFP44,.39SQ,31
Package Shape	SQUARE
Package Style	FLATPACK, THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Peripherals	BOD, COMPARATOR(2), POR, PWM(2), TIMER(4), WDT
Power Supplies	5 V
Program Memory Size (words)	16384
Program Memory Type	FLASH
Program Memory Width (bits)	16
Seated Height-Max (mm)	1.2
Speed (MHz)	40
Sub Category	Microcontrollers
Supply Current-Max (mA)	3.5
Supply Voltage-Max (V)	5.5
Supply Voltage-Min (V)	4.2
Supply Voltage-Nom (V)	5
Surface Mount	YES
Technology	CMOS
