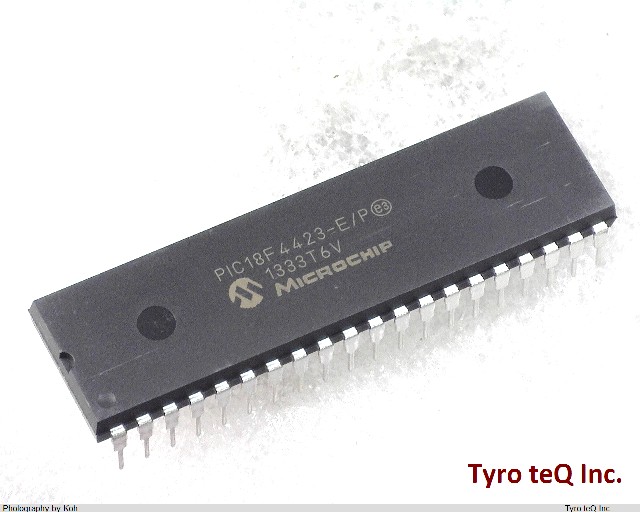

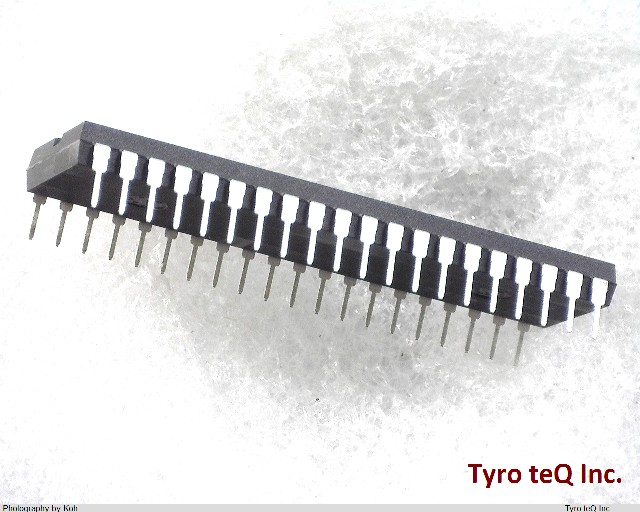

PIC18F4423-E/P Microchip

PIC18F4423-E/P - MICROCHIP の商品詳細ページです。

1
PIC18F4423-E/P
  • PIC18F4423-E/P
  • PIC18F4423-E/P
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

PIC18F4423-E/P の詳細情報

  • 仕様・詳細
  • メーカー情報
型番PIC18F4423-E/P
メーカーMICROCHIP
A/D Converters 10-Ch 12-Bit
ADC Channels YES
Additional Feature ALSO OPERATES AT 2V MIN SUPPLY @ 4MHZ
Address Bus Width 0
Bit Size 8
Boundary Scan NO
CPU Family PIC18
Clock Frequency-Max 40 MHz
Connectivity I2C, PSP, SPI, USART
DAC Channels NO
DMA Channels NO
Data EEPROM Size 256
External Data Bus Width 0
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDIP-T40
JESD-609 Code e3
Length 10 mm
Low Power Mode NO
Moisture Sensitivity Level 3
Number of External Interrupts 3
Number of I/O Lines 36
Number of Serial I/Os 1
Number of Terminals 40
Number of Timers 4
On Chip Program ROM Width 16
Operating Temperature-Max 125 Cel
Operating Temperature-Min -40 Cel
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP40,.6
Package Shape RECTANGULAR
Package Style FLATPACK, THIN PROFILE Meter
Peak Reflow Temperature (Cel) 260
Peripherals BOD, COMPARATOR(2), POR, PWM(2), TIMER(4), WDT
Power Supplies 5 V
Qualification Status Not Qualified
RAM (bytes) 768
ROM (words) 8192
ROM Programmability FLASH
Speed 40 rpm
Sub Category Microcontrollers
Supply Voltage-Max 5.5 V
Supply Voltage-Min 4.2 V
Supply Voltage-Nom 5 V
Surface Mount NO
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish MATTE TIN
会社名称Microchip Technology Inc.
所在地2355 West Chandler Blvd. Chandler, Arizona, USA 85224-6199
URLhttp://www.microchip.com/
