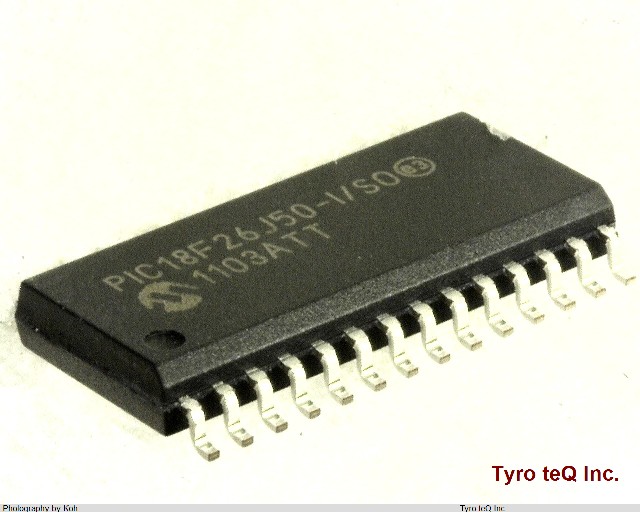

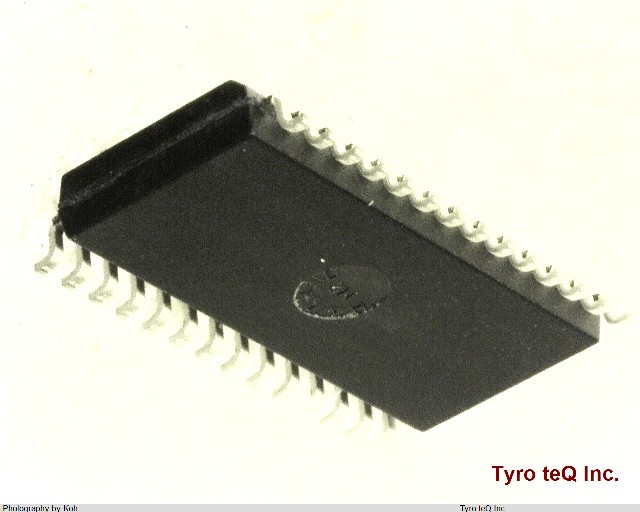

PIC18F26J50-I/SO Microchip

PIC18F26J50-I/SO - MICROCHIP の商品詳細ページです。

1
No Image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

PIC18F26J50-I/SO の詳細情報

  • 仕様・詳細
  • メーカー情報
型番PIC18F26J50-I/SO
メーカーMICROCHIP
ADC Channels YES
Additional Feature ALSO OPERATES AT 8 MHZ AT 2.15 V
Address Bus Width 0
Bit Size 8
CPU Family PIC18
Clock Frequency-Max 48 MHz
DAC Channels NO
DMA Channels YES
External Data Bus Width 0
JESD-30 Code R-PDSO-G28
JESD-609 Code e3
Length 17.9 mm
Moisture Sensitivity Level 1
Number of I/O Lines 23
Number of Terminals 28
On Chip Program ROM Width 16
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP28,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Peak Reflow Temperature (Cel) 260
Power Supplies 2.5,2.5/3.3,3.3 V
Qualification Status Not Qualified
RAM (bytes) 3776
ROM (words) 32768
ROM Programmability FLASH
Seated Height-Max 2.65 mm
Speed 48 rpm
Sub Category Microcontrollers
Supply Current-Max 22.7 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2.35 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Width 7.5 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
会社名称Microchip Technology Inc.
所在地2355 West Chandler Blvd. Chandler, Arizona, USA 85224-6199
URLhttp://www.microchip.com/
