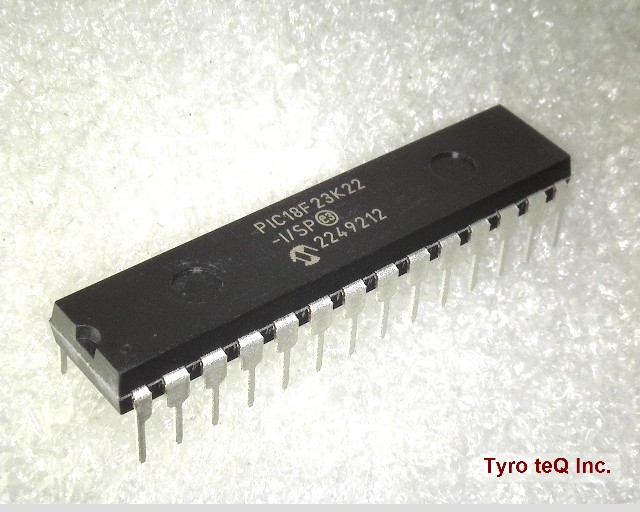

PIC18F23K22-I/SP

Name: PIC18F23K22-I/SP
Brand: MICROCHIP
SKU: 260170530-0000-0000-0000

PIC18F23K22-I/SP - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC18F23K22-I/SP の詳細情報

型番	PIC18F23K22-I/SP
メーカー	MICROCHIP
A/D Converters	17-Ch 10-Bit
ADC Channels	YES
Additional Feature	ALSO OPERATES 2.3 V MINIMUM SUPPLY AT 20 MHZ
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	PIC18
Clock Frequency-Max	64 MHz
Connectivity	I2C(2), LIN, SPI(2), USART(2)
D/A Converters	1-Ch 5-Bit
DAC Channels	YES
DMA Channels	NO
Data EEPROM Size	256
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDIP-T28
JESD-609 Code	e3
Length	34.671 mm
Low Power Mode	YES
Number of DMA Channels	3
Number of I/O Lines	25
Number of Terminals	28
Number of Timers	7
On Chip Data RAM Width	8
On Chip Program ROM Width	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP28,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peripherals	BOD, COMPARATOR(2), POR, PWM(3), TIMER(7), WDT
Power Supplies	2/5 V
Qualification Status	Not Qualified
RAM (bytes)	512
RAM (words)	512
ROM (words)	4096
ROM Programmability	FLASH
Seated Height-Max	5.08 mm
Speed	64 rpm
Sub Category	Microcontrollers
Supply Current-Max	12 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	2.7 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
