PIC16LF877A-I/PT データシート

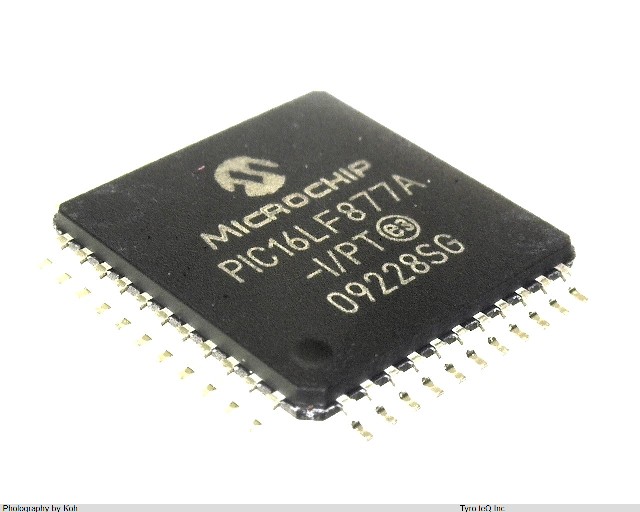

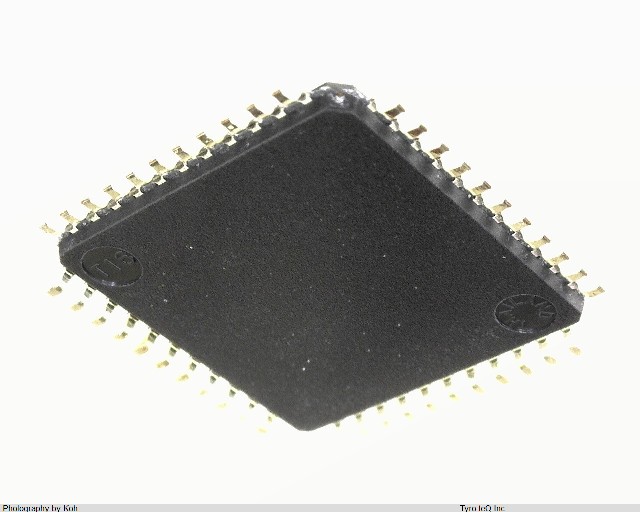

Name: PIC16LF877A-I/PT
Brand: MICROCHIP
SKU: 260015378-0000-0000-0000

PIC16LF877A-I/PT - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC16LF877A-I/PT の詳細情報

型番	PIC16LF877A-I/PT
メーカー	MICROCHIP
データシート
A/D Converters	8-Ch 10-Bit
ADC Channels	YES
Additional Feature	ALSO OPERATES AT 2V MIN SUPPLY
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	PIC16
Clock Frequency-Max	10 MHz
Connectivity	I2C, PSP, SPI, USART
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	256
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	S-PQFP-G44
JESD-609 Code	e3
Length	10 mm
Low Power Mode	YES
Moisture Sensitivity Level	3
Number of External Interrupts	1
Number of I/O Lines	33
Number of Terminals	44
Number of Timers	3
On Chip Data RAM Width	8
On Chip Program ROM Width	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	TQFP
Package Equivalence Code	TQFP44,.39SQ,31
Package Shape	SQUARE
Package Style	FLATPACK, THIN PROFILE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Peripherals	BOD, COMPARATOR(2), POR, PWM(2), TIMER(3), WDT
RAM (bytes)	368
ROM (words)	8192
ROM Programmability	FLASH
Seated Height-Max	1.2 mm
Speed	10 rpm
Supply Voltage-Max	5.5 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.8 mm
