PIC16LF877A-I/L データシート

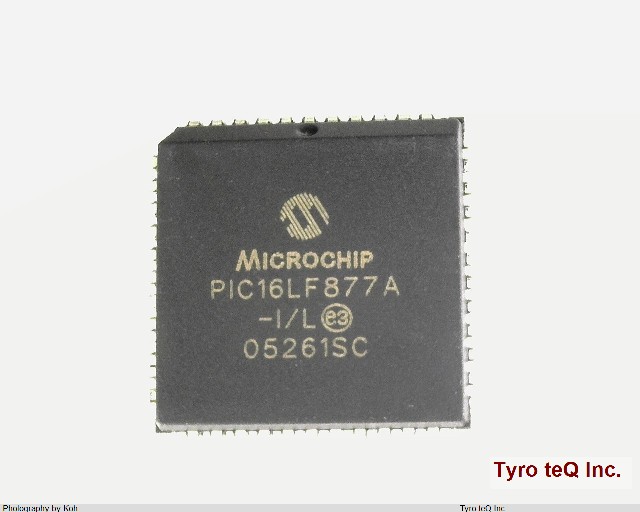

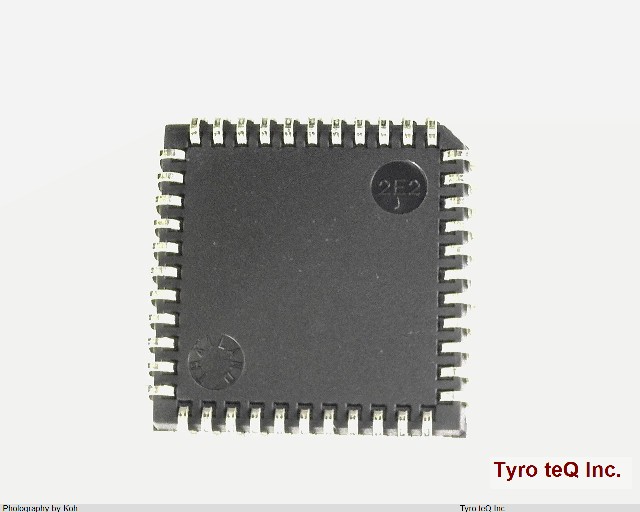

Name: PIC16LF877A-I/L
Brand: MICROCHIP
SKU: 260087090-0000-0000-0000

PIC16LF877A-I/L - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC16LF877A-I/L の詳細情報

型番	PIC16LF877A-I/L
メーカー	MICROCHIP
データシート
A/D Converters	8-Ch 10-Bit
ADC Channels	YES
Additional Feature	OPERATES AT 2 V MINIMUM SUPPLY
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	PIC16
Clock Frequency-Max	10 MHz
Connectivity	I2C, PSP, SPI, USART
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	256
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	S-PQCC-J44
JESD-609 Code	e3
Length	16.5862 mm
Low Power Mode	YES
Moisture Sensitivity Level	3
Number of External Interrupts	1
Number of I/O Lines	33
Number of Terminals	44
Number of Timers	3
On Chip Data RAM Width	8
On Chip Program ROM Width	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC44,.7SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peripherals	BOD, COMPARATOR(2), POR, PWM(2), TIMER(3), WDT
Power Supplies	2.5/5 V
Qualification Status	Not Qualified
RAM (bytes)	368
RAM (words)	368
ROM (words)	8192
ROM Programmability	FLASH
Seated Height-Max	4.572 mm
Speed	10 rpm
Sub Category	Microcontrollers
Supply Current-Max	2 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
