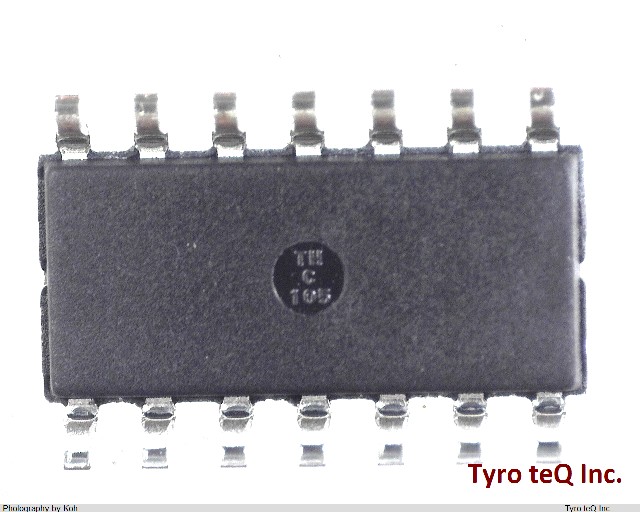

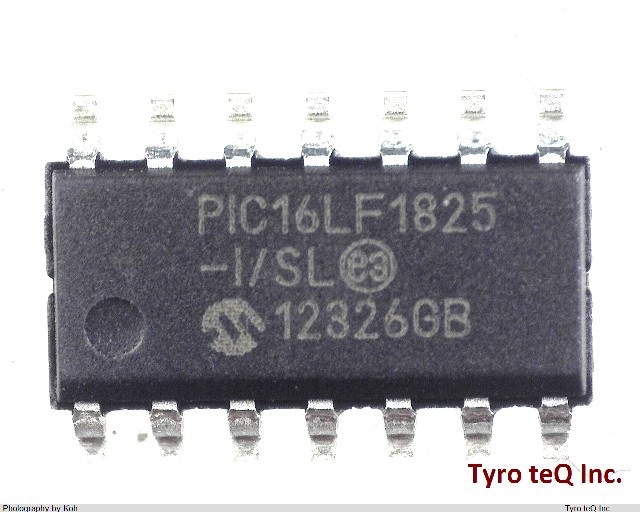

PIC16LF1825-I/SL

Name: PIC16LF1825-I/SL
Brand: MICROCHIP
SKU: 260234179-0000-0000-0000

PIC16LF1825-I/SL - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC16LF1825-I/SL の詳細情報

型番	PIC16LF1825-I/SL
メーカー	MICROCHIP
A/D Converters	8-Ch 10-Bit
ADC Channels	YES
Additional Feature	ALSO OPERATES 1.8V MINIMUM SUPPLY AT 16 MHZ
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	PIC16
Clock Frequency-Max (MHz)	32
Connectivity	EUSART, MSSP
D/A Converters	1-Ch 5-Bit
DAC Channels	YES
DLA Qualification	Not Qualified
DMA Channels	NO
Data EEPROM Size (bytes)	256
Data RAM Size (bytes)	1024
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G14
Length (mm)	8.65
Low Power Mode	YES
Moisture Sensitivity Level	1
Number of External Interrupts	1
Number of I/O Lines	12
Number of Serial I/Os	1
Number of Terminals	14
Number of Timers	7
On Chip Data RAM Width	8
Operating Temperature-Max (Cel)	85
Operating Temperature-Min (Cel)	-40
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.24
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Peripherals	BOR, COMPARATOR(2), POR, PWM(2), TIMER(7), WDT
Power Supplies	2/3.3 V
Program Memory Size (words)	8192
Program Memory Type	FLASH
Program Memory Width (bits)	14
Screening Level / Reference Standard	TS 16949
Seated Height-Max (mm)	1.75
Speed (MHz)	32
Sub Category	Microcontrollers
Supply Current-Max (mA)	4.5
Supply Voltage-Max (V)	3.6
Supply Voltage-Min (V)	2.5
