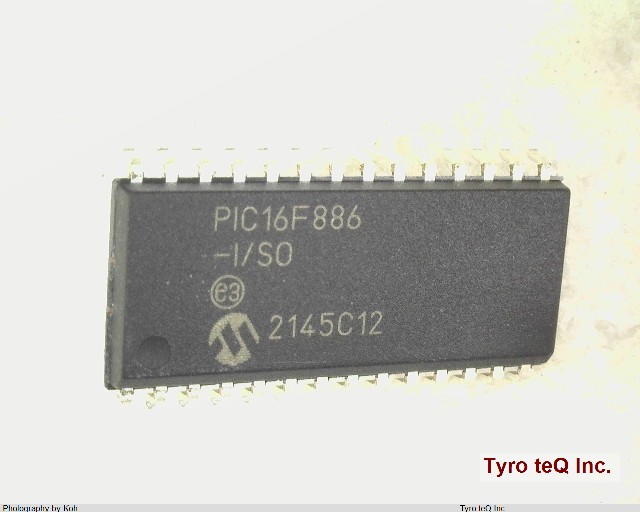

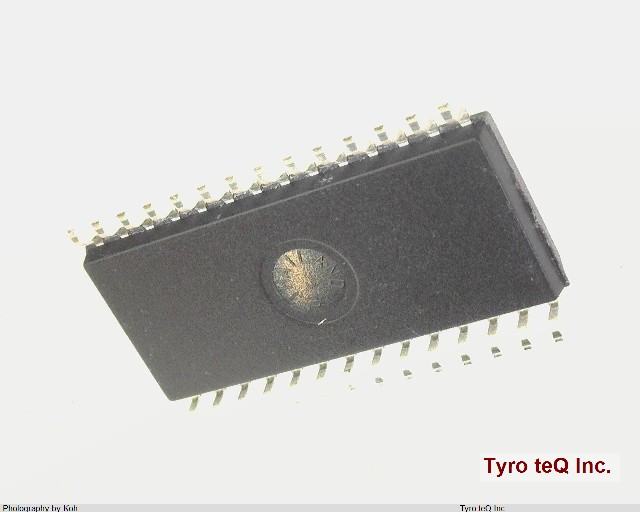

PIC16F886-I/SO

Name: PIC16F886-I/SO
Brand: MICROCHIP
SKU: 260087240-0000-0000-0000

PIC16F886-I/SO - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC16F886-I/SO の詳細情報

型番	PIC16F886-I/SO
メーカー	MICROCHIP
A/D Converters	11-Ch 10-Bit
ADC Channels	YES
Additional Feature	OPERATES AT 2 V MINIMUM SUPPLY AT 8 MHz
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	PIC16
Clock Frequency-Max	20 MHz
Clock Frequency-Max (MHz)	20
Connectivity	EUSART, I2C, SPI
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	256
Data EEPROM Size (bytes)	256
Data RAM Size (bytes)	368
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G28
JESD-609 Code	e3
Length	17.9 mm
Length (mm)	17.9
Low Power Mode	YES
Moisture Sensitivity Level	1
Number of External Interrupts	1
Number of I/O Lines	24
Number of Serial I/Os	1
Number of Terminals	28
Number of Timers	5
On Chip Data RAM Width	8
On Chip Program ROM Width	14
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP28,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Peripherals	BOR, COMPARATOR(2), POR, PWM(2), TIMER(5), WDT
Power Supplies	2.5/5 V
Program Memory Type	FLASH
Program Memory Width (bits)	14
Qualification Status	Not Qualified
RAM (bytes)	368
ROM (words)	8192
