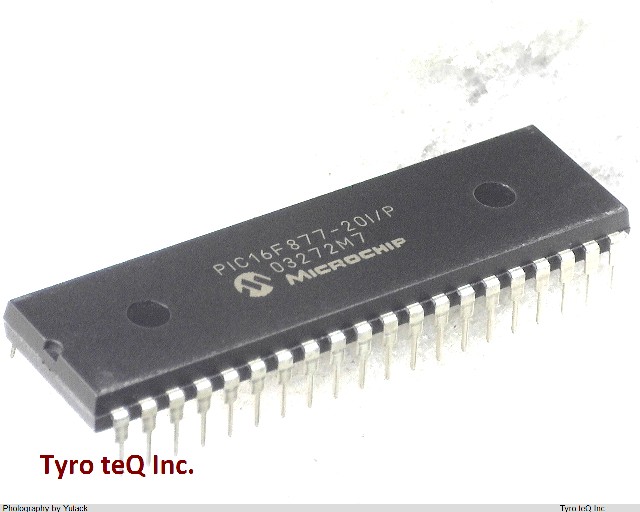

PIC16F877-20I/P データシート

Name: PIC16F877-20I/P
Brand: MICROCHIP
SKU: 260002670-0000-0000-0000

PIC16F877-20I/P - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC16F877-20I/P の詳細情報

型番	PIC16F877-20I/P
メーカー	MICROCHIP
データシート
A/D Converters	8-Ch 10-Bit
ADC Channels	YES
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	PIC16
Clock Frequency-Max	20 MHz
Connectivity	I2C, PSP, SPI, USART
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	256
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDIP-T40
JESD-609 Code	e3
Length	10 mm
Low Power Mode	YES
Number of External Interrupts	1
Number of I/O Lines	33
Number of Terminals	40
Number of Timers	3
On Chip Data RAM Width	8
On Chip Program ROM Width	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP40,.6
Package Shape	RECTANGULAR
Package Style	FLATPACK Meter
Peripherals	BOD, COMPARATOR(2), POR, PWM(2), TIMER(3), WDT
Power Supplies	5 V
RAM (bytes)	368
RAM (words)	368
ROM (words)	8192
ROM Programmability	FLASH
Seated Height-Max	1.2 mm
Speed	20 rpm
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.8 mm
Terminal Position	DUAL
Width	10 mm
