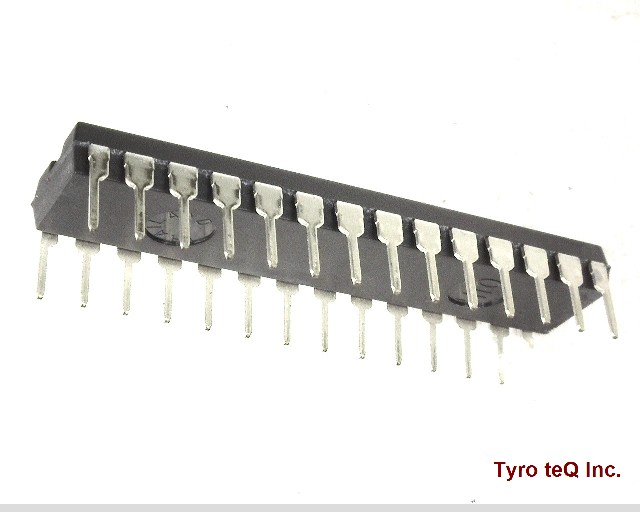

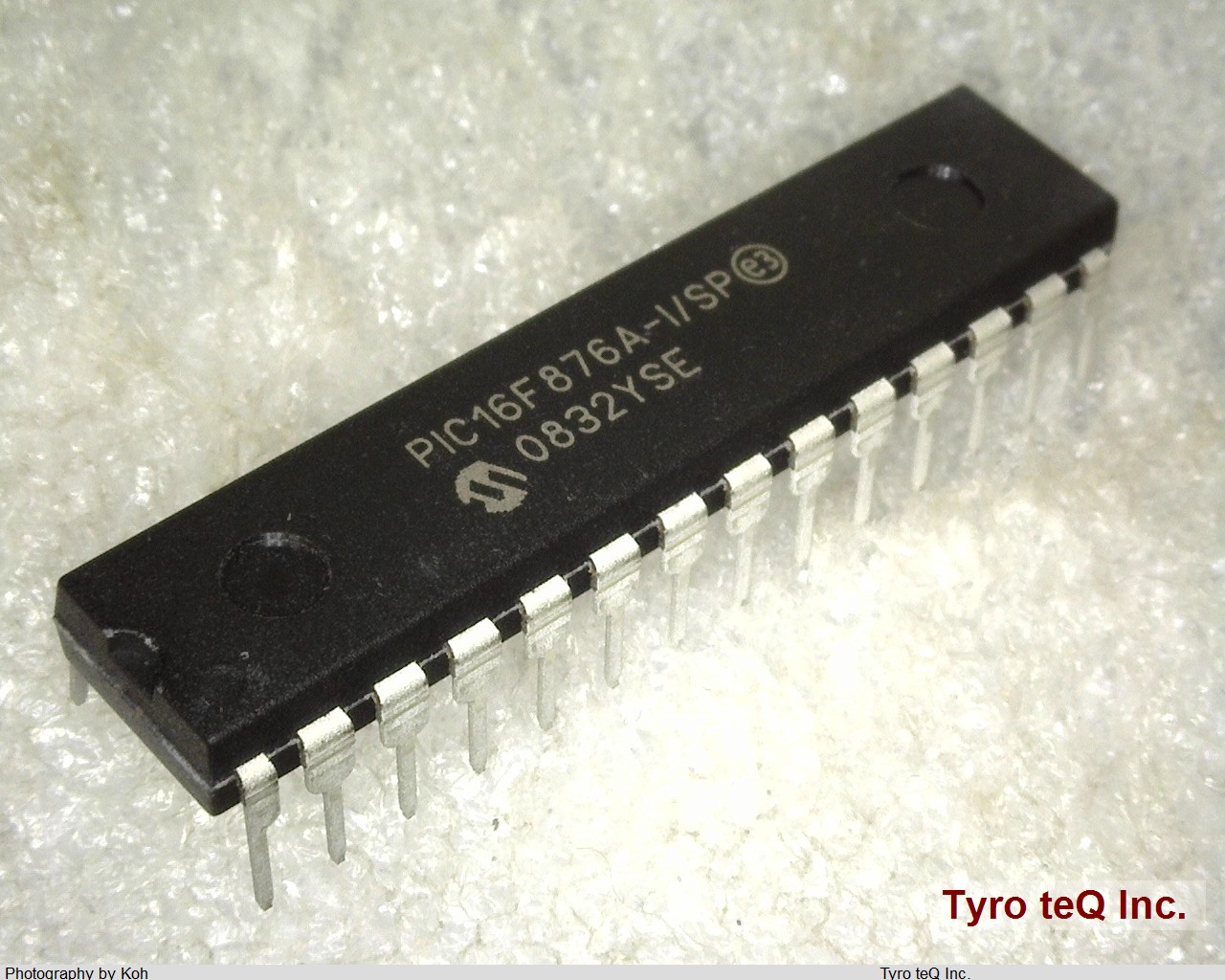

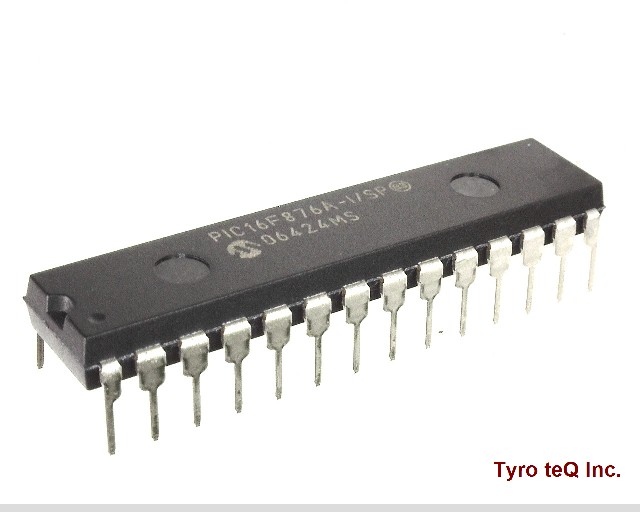

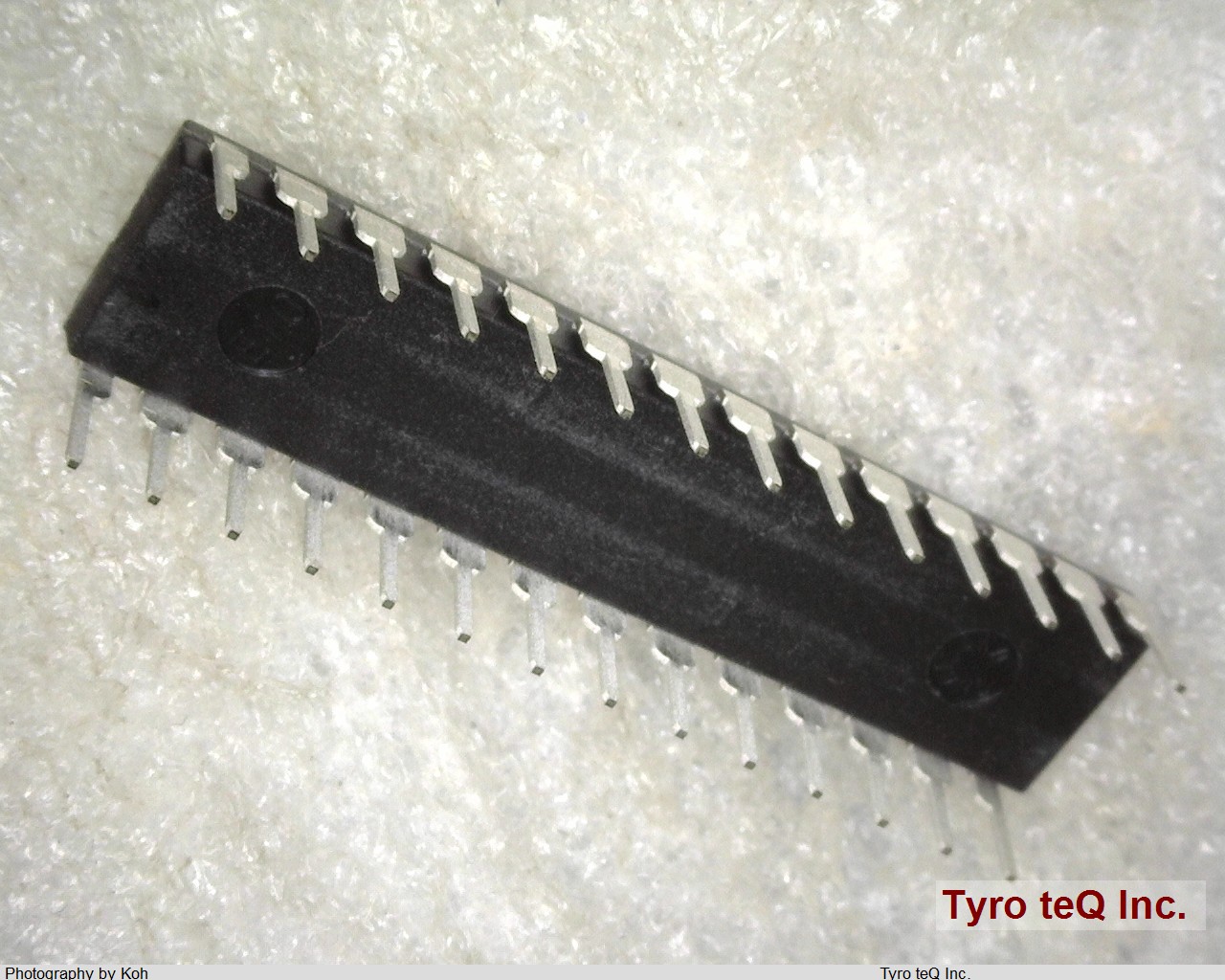

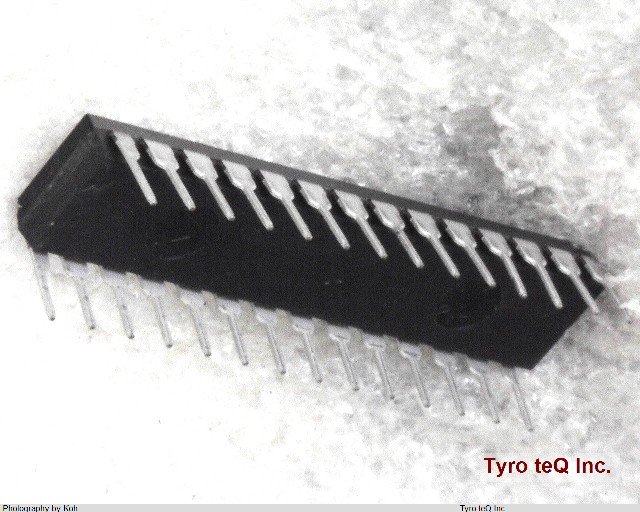

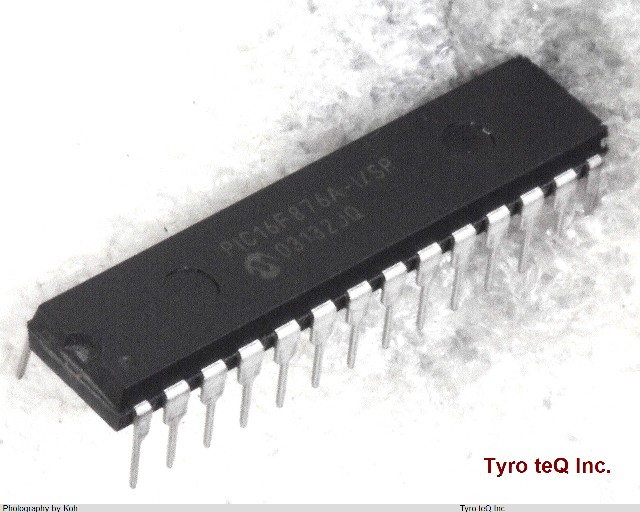

PIC16F876AISP データシート

Name: PIC16F876AISP
Brand: MICROCHIP
SKU: 260002668-0000-0000-0000

PIC16F876AISP - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC16F876AISP の詳細情報

型番	PIC16F876AISP
メーカー	MICROCHIP
データシート
A/D Converters	5-Ch 10-Bit
ADC Channels	YES
Additional Feature	OPERATES AT 4 V MINIMUM SUPPLY
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	PIC16
Clock Frequency-Max	20 MHz
Clock Frequency-Max (MHz)	20
Connectivity	I2C, SPI, USART
DAC Channels	NO
DLA Qualification	Not Qualified
DMA Channels	NO
Data EEPROM Size	256
Data EEPROM Size (bytes)	256
Data RAM Size (bytes)	368
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T28
JESD-609 Code	e3
Length	34.67 mm
Length (mm)	34.67
Low Power Mode	YES
Number of External Interrupts	1
Number of I/O Lines	22
Number of Terminals	28
Number of Timers	3
On Chip Data RAM Width	8
On Chip Program ROM Width	14
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP28,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Peripherals	BOD, COMPARATOR(2), POR, PWM(2), TIMER(3), WDT
Power Supplies	5 V
Program Memory Size (words)	8192
Program Memory Type	FLASH
Program Memory Width (bits)	14
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
