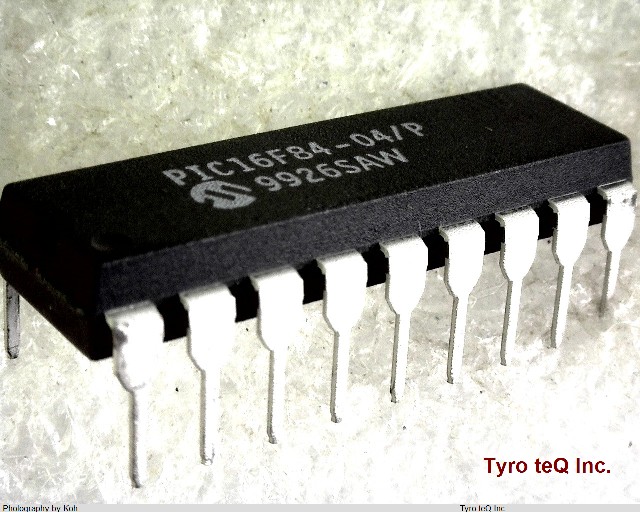

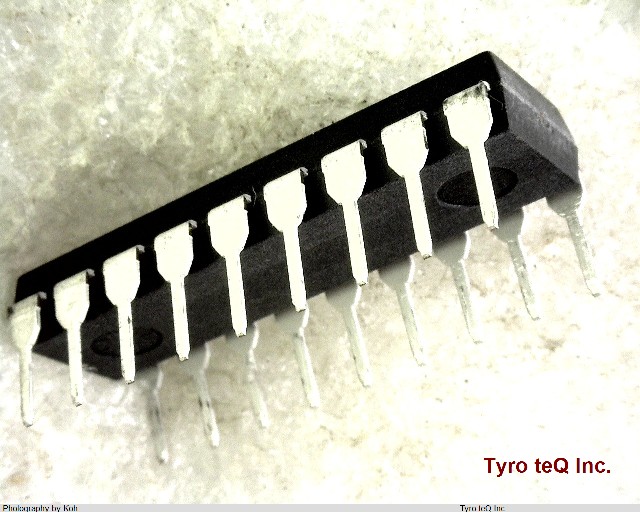

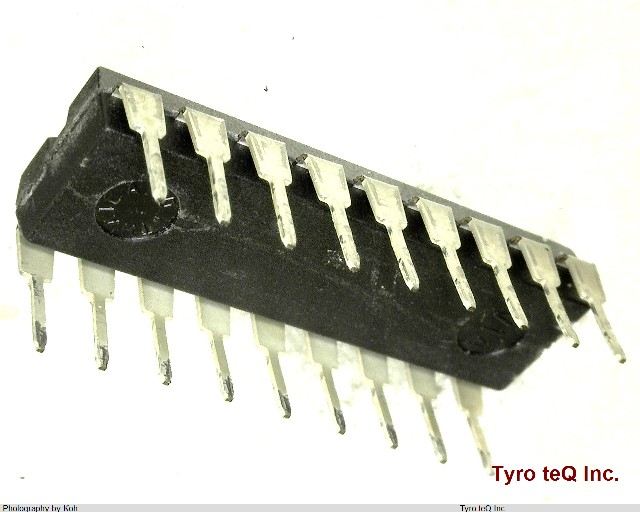

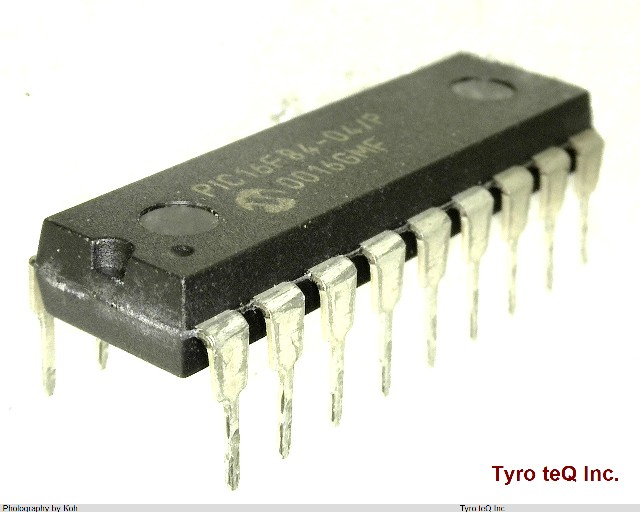

PIC16F84-04/P

Name: PIC16F84-04/P
Brand: MICROCHIP
SKU: 260015275-0000-0000-0000

PIC16F84-04/P - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC16F84-04/P の詳細情報

型番	PIC16F84-04/P
メーカー	MICROCHIP
ADC Channels	NO
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	PIC16
Clock Frequency-Max	4 MHz
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	64
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDIP-T18
JESD-609 Code	e3
Length	22.73 mm
Low Power Mode	YES
Number of External Interrupts	1
Number of I/O Lines	13
Number of Terminals	18
Number of Timers	3
On Chip Data RAM Width	8
On Chip Program ROM Width	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP18,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peripherals	BOR, POR, TIMER(3), WDT
Qualification Status	Not Qualified
RAM (bytes)	68
ROM (words)	1024
ROM Programmability	FLASH
Seated Height-Max	3.94 mm
Speed	4 rpm
Supply Current-Max	10 mA
Supply Voltage-Max	6 V
Supply Voltage-Min	4 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
