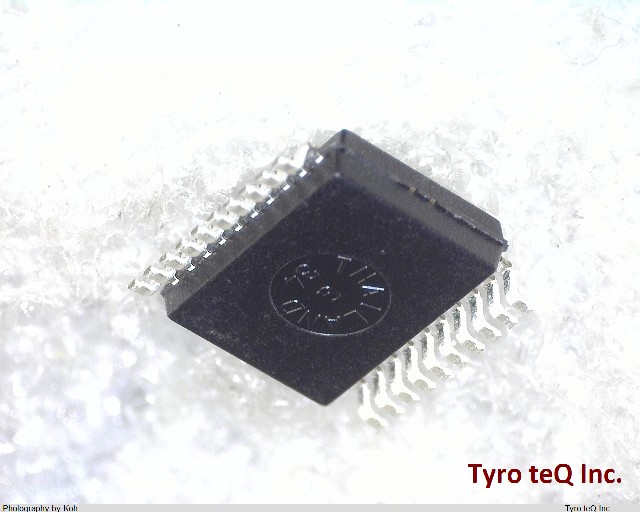

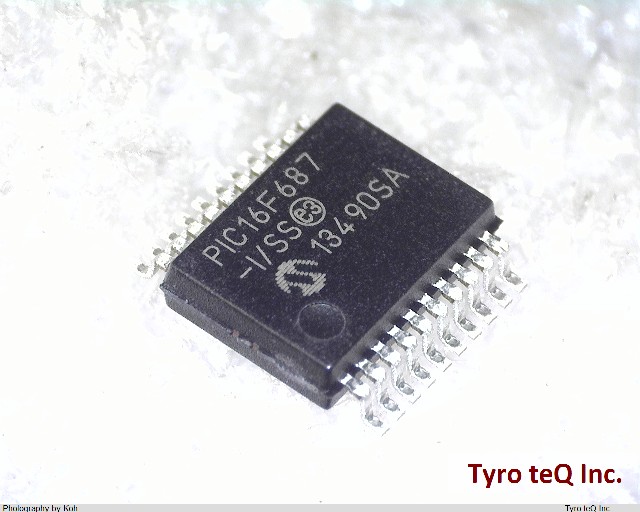

PIC16F687-I/SS

Name: PIC16F687-I/SS
Brand: MICROCHIP
SKU: 260235127-0000-0000-0000

PIC16F687-I/SS - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC16F687-I/SS の詳細情報

型番	PIC16F687-I/SS
メーカー	MICROCHIP
A/D Converters	12-Ch 10-Bit
ADC Channels	YES
Additional Feature	ALSO OPERATES AT 2V SUPPLY AT 8 MHZ
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	PIC16
Clock Frequency-Max (MHz)	20
Connectivity	I2C, SPI, USB
DAC Channels	NO
DLA Qualification	Not Qualified
DMA Channels	NO
Data EEPROM Size (bytes)	256
Data RAM Size (bytes)	128
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G20
Length (mm)	7.2
Low Power Mode	YES
Moisture Sensitivity Level	1
Number of External Interrupts	2
Number of I/O Lines	18
Number of Serial I/Os	1
Number of Terminals	20
Number of Timers	2
On Chip Data RAM Width	8
Operating Temperature-Max (Cel)	85
Operating Temperature-Min (Cel)	-40
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP20,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Peripherals	BOD, COMPARATOR(2), POR, TIMER(2), WDT
Power Supplies	2/5.5 V
Program Memory Size (words)	2048
Program Memory Type	FLASH
Program Memory Width (bits)	14
Screening Level / Reference Standard	AEC-Q100; TS 16949
Seated Height-Max (mm)	2
Speed (MHz)	20
Sub Category	Microcontrollers
Supply Current-Max (mA)	5.45
Supply Voltage-Max (V)	5.5
Supply Voltage-Min (V)	4.5
Supply Voltage-Nom (V)	5
