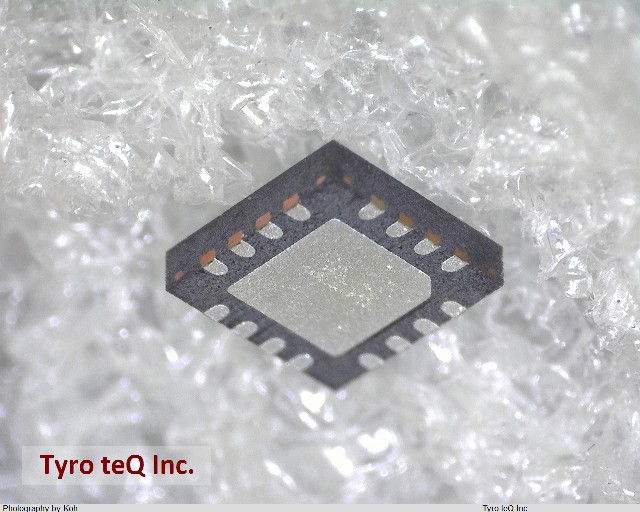

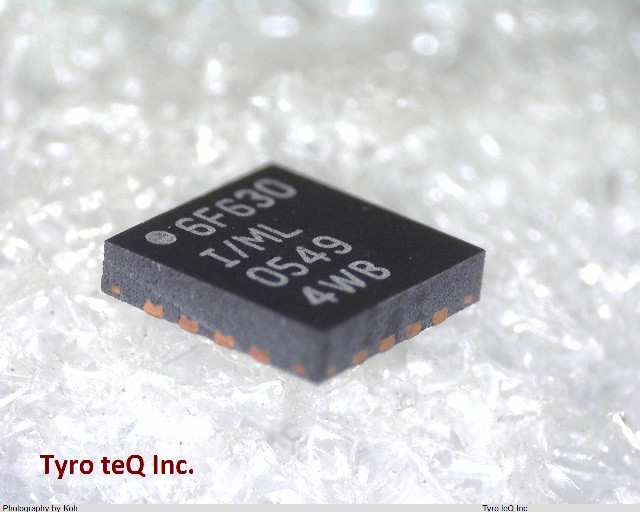

PIC16F630-I/ML データシート

Name: PIC16F630-I/ML
Brand: MICROCHIP
SKU: 260232450-0000-0000-0000

PIC16F630-I/ML - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC16F630-I/ML の詳細情報

型番	PIC16F630-I/ML
メーカー	MICROCHIP
データシート
ADC Channels	NO
Additional Feature	OPERATES AT 2 V MINIMUM SUPPLY AT 4MHZ
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	PIC16
Clock Frequency-Max	20 MHz
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	128
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	S-XQCC-N16
JESD-609 Code	e3
Length	4 mm
Low Power Mode	YES
Number of External Interrupts	1
Number of I/O Lines	12
Number of Terminals	16
Number of Timers	4
On Chip Data RAM Width	8
On Chip Program ROM Width	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	NO
Package Body Material	UNSPECIFIED
Package Code	HVQCCN
Package Equivalence Code	LCC16,.16SQ,25
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peripherals	BOD, COMPARATOR, POR, TIMER(4), WDT
RAM (bytes)	64
ROM (words)	1024
ROM Programmability	FLASH
Screening Level	TS 16949
Seated Height-Max	1 mm
Speed	20 rpm
Supply Current-Max	3 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.65 mm
Terminal Position	QUAD
Width	4 mm
