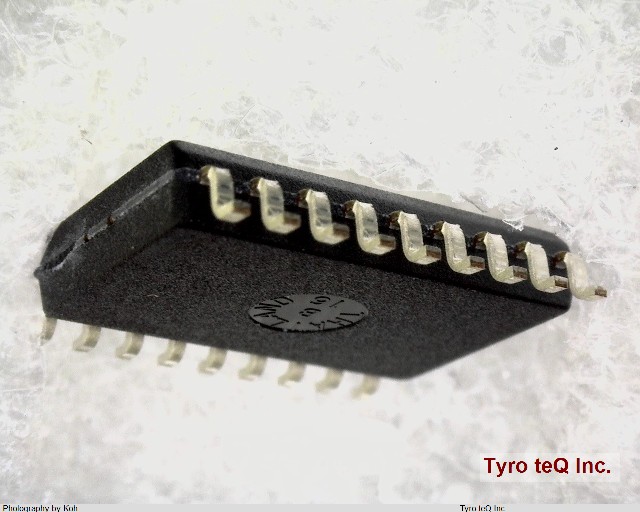

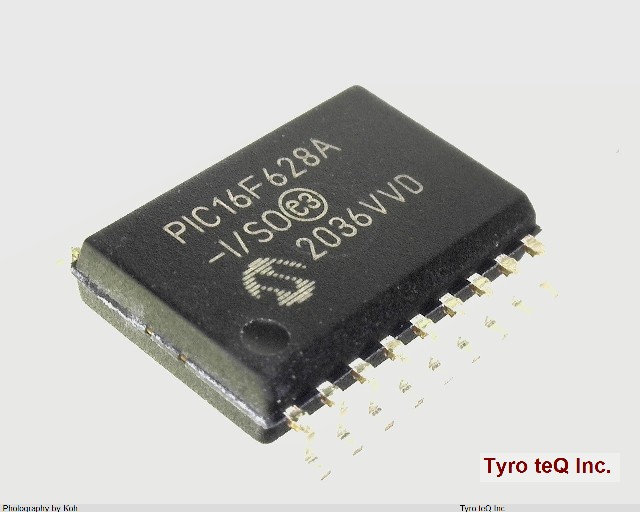

PIC16F628A-I/SO データシート

Name: PIC16F628A-I/SO
Brand: MICROCHIP
SKU: 260015243-0000-0000-0000

PIC16F628A-I/SO - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC16F628A-I/SO の詳細情報

型番	PIC16F628A-I/SO
メーカー	MICROCHIP
データシート
ADC Channels	NO
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	PIC16
Clock Frequency-Max	20 MHz
Connectivity	USART
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	128
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDSO-G18
JESD-609 Code	e3
Length	11.55 mm
Low Power Mode	YES
Number of External Interrupts	1
Number of I/O Lines	16
Number of Terminals	18
Number of Timers	3
On Chip Program ROM Width	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP18,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peripherals	BOD, COMPARATOR(2), POR, PWM, TIMER(3), WDT
RAM (bytes)	224
ROM (words)	2048
ROM Programmability	FLASH
Screening Level	AEC-Q100
Seated Height-Max	2.65 mm
Speed	20 rpm
Supply Current-Max	3.5 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	7.5 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
