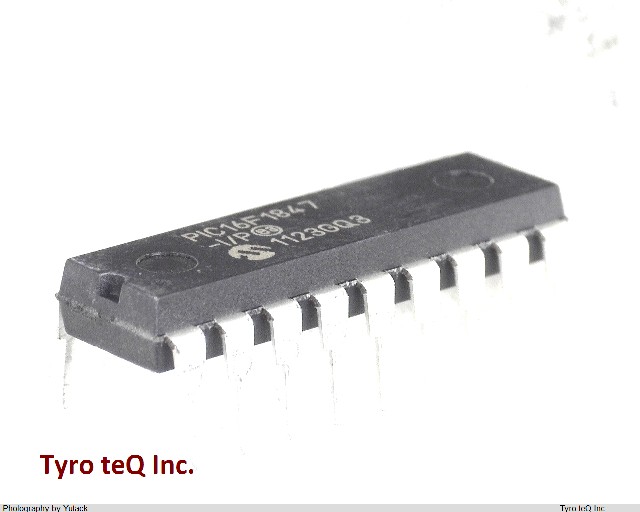

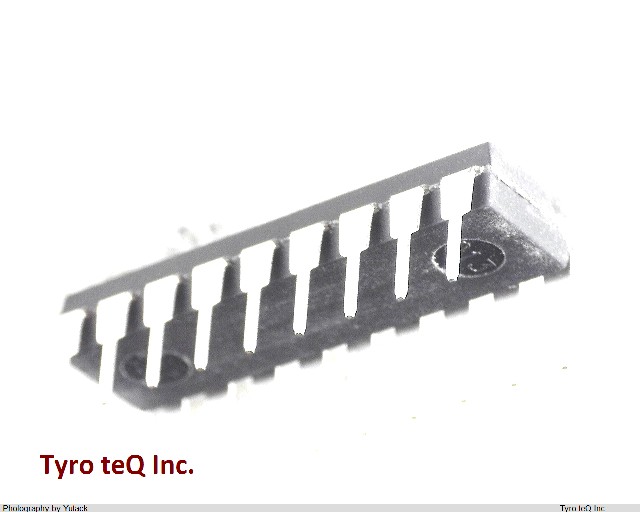

PIC16F1847-I/P

Name: PIC16F1847-I/P
Brand: MICROCHIP
SKU: 260231569-0000-0000-0000

PIC16F1847-I/P - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC16F1847-I/P の詳細情報

型番	PIC16F1847-I/P
メーカー	MICROCHIP
A/D Converters	12-Ch 10-Bit
ADC Channels	YES
Additional Feature	1.8 V MINIMUM SUPPLY AT 16 MHZ
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	PIC16
Clock Frequency-Max (MHz)	32
Connectivity	EUSART, MSSP(2)
D/A Converters	1-Ch 5-Bit
DAC Channels	YES
DLA Qualification	Not Qualified
DMA Channels	NO
Data EEPROM Size (bytes)	256
Data RAM Size (bytes)	1024
External Data Bus Width	0
Integrated Cache	NO
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T18
Length (mm)	22.86
Low Power Mode	NO
Number of DMA Channels	0
Number of External Interrupts	1
Number of I/O Lines	16
Number of Serial I/Os	1
Number of Terminals	18
Number of Timers	5
On Chip Data RAM Width	8
Operating Temperature-Max (Cel)	85
Operating Temperature-Min (Cel)	-40
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP18,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peripherals	BOR, COMPARATOR(2), POR, PWM, TIMER(7), WDT
Power Supplies	2/5 V
Program Memory Size (words)	8192
Program Memory Type	FLASH
Program Memory Width (bits)	14
RAM (words)	1024
Seated Height-Max (mm)	5.334
Speed (MHz)	32
Sub Category	Microcontrollers
Supply Current-Max (mA)	10
Supply Voltage-Max (V)	5.5
Supply Voltage-Min (V)	2.5
Supply Voltage-Nom (V)	3
Surface Mount	NO
