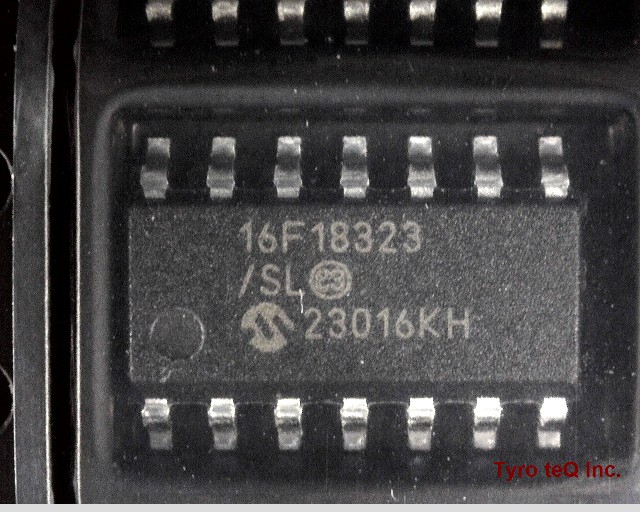

PIC16F18323T-I/SL

Name: PIC16F18323T-I/SL
Brand: MICROCHIP
SKU: 400069021-0000-0000-0000

PIC16F18323T-I/SL - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC16F18323T-I/SL の詳細情報

型番	PIC16F18323T-I/SL
メーカー	MICROCHIP
A/D Converters	11-Ch 10-Bit
ADC Channels	YES
Additional Feature	2.3 V MINIMUM SUPPLY AT 16 MHZ
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	PIC16
Clock Frequency-Max	32 MHz
Connectivity	I2C, SPI, USART
D/A Converters	1-Ch 5-Bit
DAC Channels	YES
DMA Channels	NO
Data EEPROM Size	256
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e3
Length	8.65 mm
Low Power Mode	YES
Moisture Sensitivity Level	1
Number of DMA Channels	0
Number of External Interrupts	1
Number of I/O Lines	12
Number of Serial I/Os	1
Number of Terminals	14
Number of Timers	3
On Chip Data RAM Width	8
On Chip Program ROM Width	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.24
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Peripherals	ANALOG COMPARATOR(2), BOR, CLC, CWG, POR, PWM(2), TIMER(3), WDT
RAM (bytes)	256
RAM (words)	256
ROM (words)	2048
ROM Programmability	FLASH
Screening Level	AEC-Q100; TS 16949
Seated Height-Max	1.75 mm
Speed	32 rpm
Supply Current-Max	2.6 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	2.5 V
Supply Voltage-Nom	3 V
