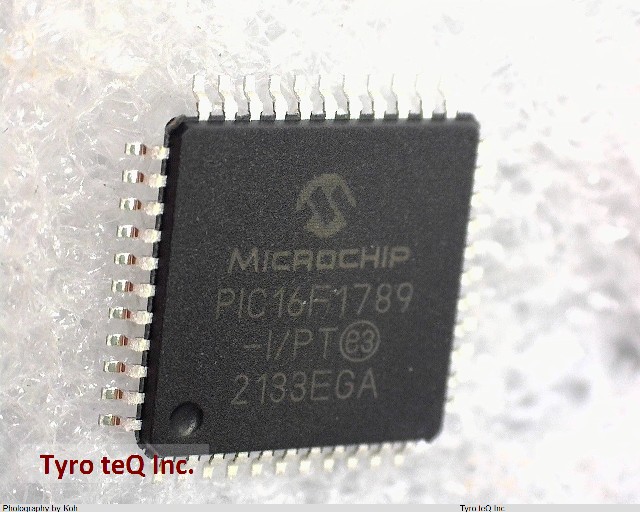

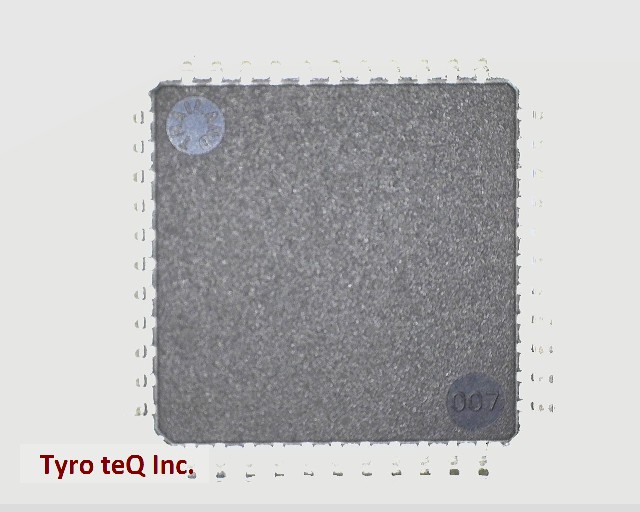

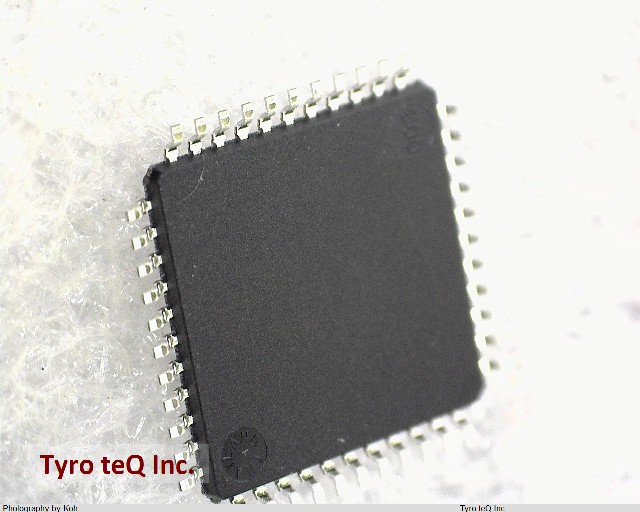

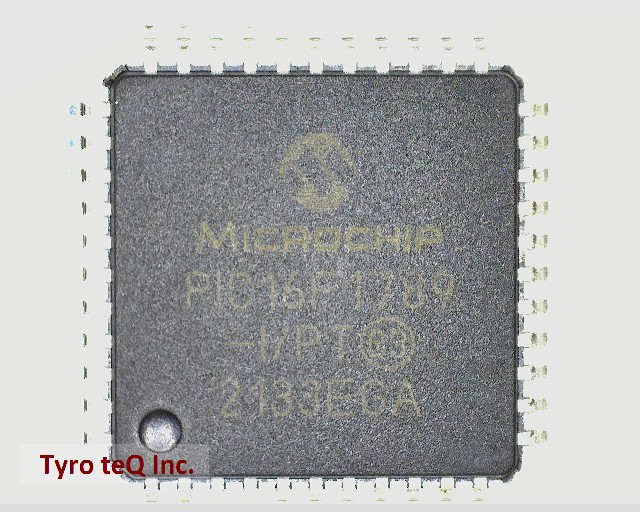

PIC16F1789-I/PT

Name: PIC16F1789-I/PT
Brand: MICROCHIP
SKU: 260235979-0000-0000-0000

PIC16F1789-I/PT - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC16F1789-I/PT の詳細情報

型番	PIC16F1789-I/PT
メーカー	MICROCHIP
A/D Converters	15-Ch 12-Bit
ADC Channels	YES
Additional Feature	IT ALSO OPERATES AT 2.3V AT 16MHZ
Address Bus Width	0
Bit Size	8
CPU Family	PIC16
Clock Frequency-Max (MHz)	32
Connectivity	I2C, LIN, PMBUS, RS232, RS485, SMBUS, SPI, SSP, USART
D/A Converters	1-Ch 8-Bit, 3-Ch 5-Bit
DAC Channels	YES
DLA Qualification	Not Qualified
DMA Channels	NO
Data EEPROM Size (bytes)	256
Data RAM Size (bytes)	2048
External Data Bus Width	0
J-STD-609 Code	e3
JESD-30 Code	S-PQFP-G44
Length (mm)	10
Number of I/O Lines	36
Number of Terminals	44
Operating Temperature-Max (Cel)	85
Operating Temperature-Min (Cel)	-40
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	TQFP
Package Equivalence Code	TQFP44,.47SQ,32
Package Shape	SQUARE
Package Style	FLATPACK, THIN PROFILE Meter
Peripherals	BOR, COMPARATOR(4), POR, PSMC(4), PWM(2), TIMER(3), WDT
Power Supplies	2.5/5 V
Program Memory Size (words)	16384
Program Memory Type	FLASH
Program Memory Width (bits)	14
Screening Level / Reference Standard	TS 16949
Seated Height-Max (mm)	1.2
Speed (MHz)	32
Sub Category	Microcontrollers
Supply Voltage-Max (V)	5.5
Supply Voltage-Min (V)	2.5
Supply Voltage-Nom (V)	3
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch (mm)	0.8
Terminal Position	QUAD
Width (mm)	10
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
