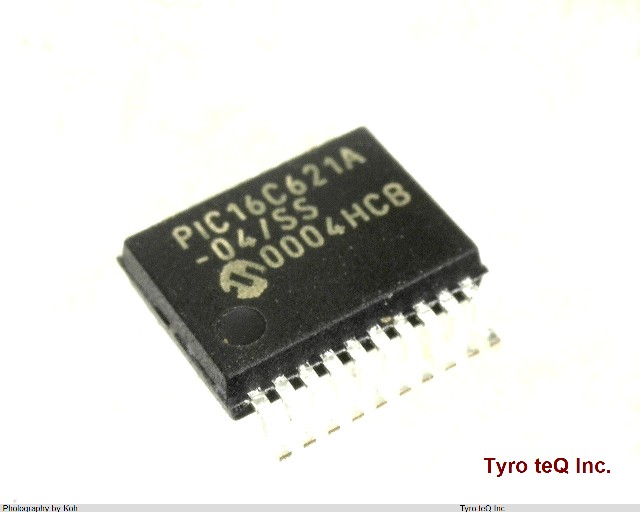

PIC16C621A-04/SS データシート

Name: PIC16C621A-04/SS
Brand: MICROCHIP
SKU: 260005542-0000-0000-0000

PIC16C621A-04/SS - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC16C621A-04/SS の詳細情報

型番	PIC16C621A-04/SS
メーカー	MICROCHIP
データシート
ADC Channels	NO
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	PIC16
Clock Frequency-Max	4 MHz
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	0
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e3
Length	7.2 mm
Low Power Mode	YES
Moisture Sensitivity Level	1
Number of External Interrupts	1
Number of I/O Lines	13
Number of Terminals	20
Number of Timers	3
On Chip Data RAM Width	8
On Chip Program ROM Width	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP20,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Peripherals	BOR, COMPARATOR(2), POR, TIMER(3), WDT
Power Supplies	3.3/5 V
Qualification Status	Not Qualified
RAM (bytes)	96
ROM (words)	1024
ROM Programmability	OTPROM
Seated Height-Max	1.98 mm
Speed	40 rpm
Sub Category	Microcontrollers
Supply Current-Max	7 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
