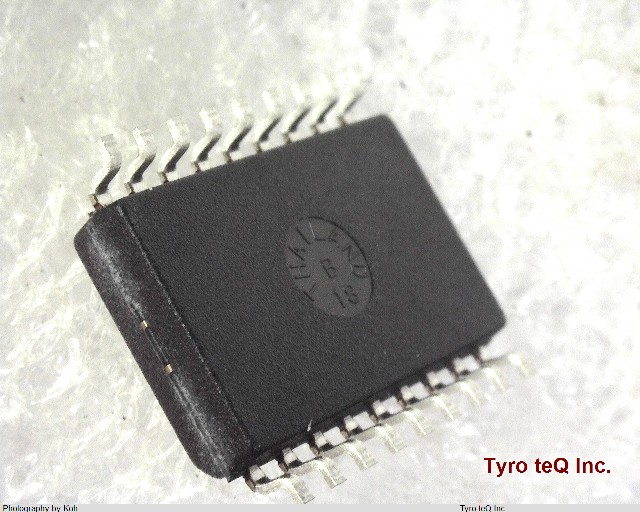

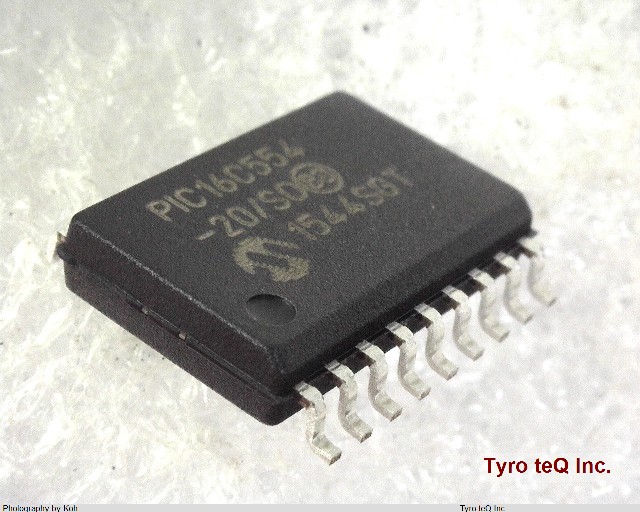

PIC16C554-20/SO

Name: PIC16C554-20/SO
Brand: MICROCHIP
SKU: 260087537-0000-0000-0000

PIC16C554-20/SO - MICROCHIP の商品詳細ページです。

２営業日以内に回答いたします

PIC16C554-20/SO の詳細情報

型番	PIC16C554-20/SO
メーカー	MICROCHIP
ADC Channels	NO
Additional Feature	ALSO OPERATES AT 4MHZ AT 3.0V MIN SUPPLY
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	PIC16
Clock Frequency-Max	20 MHz
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	0
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDSO-G18
JESD-609 Code	e3
Length	11.55 mm
Low Power Mode	YES
Moisture Sensitivity Level	1
Number of External Interrupts	1
Number of I/O Lines	13
Number of Terminals	18
Number of Timers	3
On Chip Program ROM Width	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP18,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Peripherals	POR, TIMER(3), WDT
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (bytes)	80
ROM (words)	512
ROM Programmability	OTPROM
Screening Level	TS 16949
Seated Height-Max	2.64 mm
Speed	20 rpm
Sub Category	Microcontrollers
Supply Current-Max	20 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
